5 - Panels - 5.1 - Front Panels

McLaren 540C Coupe

Find Your Part

McLaren 540C Coupe - 5 - PANELS - 5.1 - FRONT PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
13A0182CP BAFFLE - FENDER - FRONT $52.91 To Order
Photo Part No Description Price (each) Stock
13AA875CP Fender - Front - LH Enquire To Order
Photo Part No Description Price (each) Stock
13A4708CP BRACKET - REINFORCEMENT - FENDER - FRONT-LH Enquire To Order
Photo Part No Description Price (each) Stock
13A6122CP BRACKET - FRONT FENDER SUPPORT - LH $43.56 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
13A4702CP BRACKET - FENDER - LOW TEMPERATURE RADIATOR - LH $29.03 To Order
Photo Part No Description Price (each) Stock
13A4962CP BRACKET - FENDER MOUNT - FRONT - LH $77.47 To Order
Photo Part No Description Price (each) Stock
13A1452CP BRACKET - FENDER MOUNTING - FRONT - LH $29.03 To Order
Photo Part No Description Price (each) Stock
13A1502CP OUTRIGGER - FRONT - LH $497.55 To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
13A3454CP BRACKET - COWL TO FRONT OUTRIGGER - LH $67.34 To Order
Photo Part No Description Price (each) Stock
00RA089 Bolt - M6x20 - Hex - Washer - D20 Enquire To Order
Photo Part No Description Price (each) Stock
22AE113GP BRACKET - FENDER - WHEEL ARCH LINER COVER PANEL - LH $34.80 To Order
Photo Part No Description Price (each) Stock
00RA403 Bolt - Button - Flange - M6x12 Enquire To Order
Photo Part No Description Price (each) Stock
13AA877CP Fender - Front - RH Enquire To Order
Photo Part No Description Price (each) Stock
13AB070CP BRACKET - REINFORCEMENT - FENDER - FRONT - RH $33.90 To Order
Photo Part No Description Price (each) Stock
13A5742CP BRACKET - FRONT FENDER SUPPORT - RH $43.56 To Order
Photo Part No Description Price (each) Stock
13A1061CP BRACKET - FENDER MOUNTING - FRONT - RH $29.03 To Order
Photo Part No Description Price (each) Stock
13A4965CP BRACKET - FENDER MOUNT - FRONT - RH $58.08 To Order
Photo Part No Description Price (each) Stock
13A1472CP OUTRIGGER - FRONT - RH $497.55 To Order
Photo Part No Description Price (each) Stock
13A4703CP BRACKET - FENDER - LOW TEMPERATURE RADIATOR - RH $29.03 To Order
Photo Part No Description Price (each) Stock
13A3455CP BRACKET - COWL TO FRONT OUTRIGGER - RH $67.34 To Order
Photo Part No Description Price (each) Stock
13A3582CP BRACKET - FENDER - WHEEL ARCH LINER COVER PANEL - RH $180.86 To Order
Photo Part No Description Price (each) Stock
13A3516CP BRACKET - FENDER TO HINGE - LH $48.42 To Order
Photo Part No Description Price (each) Stock
13A3517CP BRACKET - FENDER TO HINGE - RH $48.42 To Order
Photo Part No Description Price (each) Stock
13A3518CP BRACKET - FENDER TO DOP - LH $58.08 To Order
Photo Part No Description Price (each) Stock
13A3519CP BRACKET - FENDER TO DOP - RH $58.08 To Order
Photo Part No Description Price (each) Stock
13A5580CP NVH FRONT SUPPORT - HINGE BLOCK - LH $28.86 To Order
Photo Part No Description Price (each) Stock
13A5581CP NVH FRONT SUPPORT - HINGE BLOCK - RH $28.86 To Order
View All

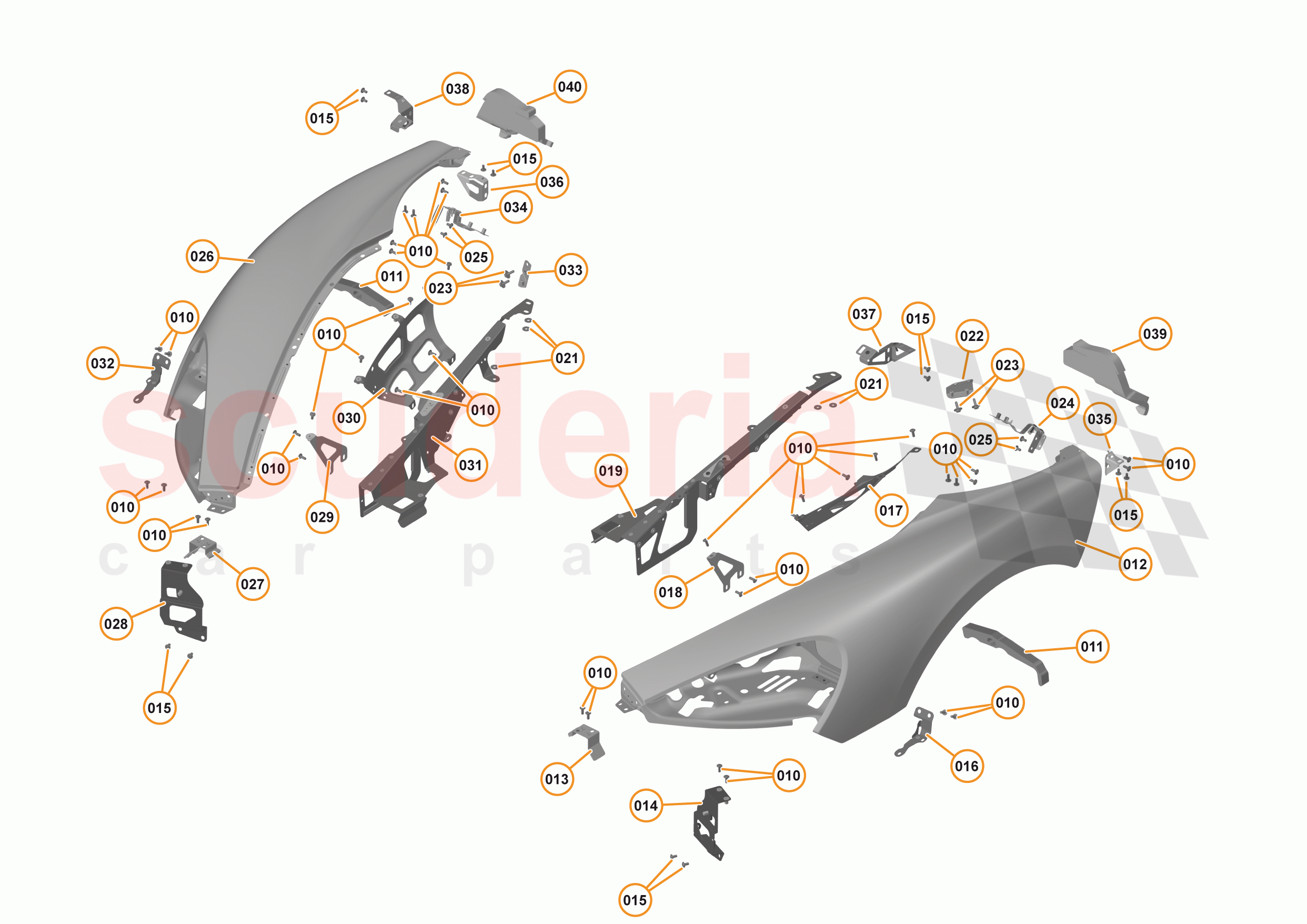

5 - PANELS - 5.1 - FRONT PANELS of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 40 Enquire
011 13A0182CP
BAFFLE - FENDER - FRONT 		$52.91 2
012 13AA875CP
Fender - Front - LH 		- 1 Enquire
013 13A4708CP
BRACKET - REINFORCEMENT - FENDER - FRONT-LH 		- 1 Enquire
014 13A6122CP
BRACKET - FRONT FENDER SUPPORT - LH 		$43.56 1
015 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 12 Enquire
016 13A4702CP
BRACKET - FENDER - LOW TEMPERATURE RADIATOR - LH 		$29.03 1
017 13A4962CP
BRACKET - FENDER MOUNT - FRONT - LH 		$77.47 1
018 13A1452CP
BRACKET - FENDER MOUNTING - FRONT - LH 		$29.03 1
019 13A1502CP
OUTRIGGER - FRONT - LH 		$497.55 1
021 00RC013
WASHER - M6X18X1.6 		- 5 Enquire
022 13A3454CP
BRACKET - COWL TO FRONT OUTRIGGER - LH 		$67.34 1
023 00RA089
Bolt - M6x20 - Hex - Washer - D20 		- 4 Enquire
024 22AE113GP
BRACKET - FENDER - WHEEL ARCH LINER COVER PANEL - LH 		$34.80 1
025 00RA403
Bolt - Button - Flange - M6x12 		- 4 Enquire
026 13AA877CP
Fender - Front - RH 		- 1 Enquire
027 13AB070CP
BRACKET - REINFORCEMENT - FENDER - FRONT - RH 		$33.90 1
028 13A5742CP
BRACKET - FRONT FENDER SUPPORT - RH 		$43.56 1
029 13A1061CP
BRACKET - FENDER MOUNTING - FRONT - RH 		$29.03 1
030 13A4965CP
BRACKET - FENDER MOUNT - FRONT - RH 		$58.08 1
031 13A1472CP
OUTRIGGER - FRONT - RH 		$497.55 1
032 13A4703CP
BRACKET - FENDER - LOW TEMPERATURE RADIATOR - RH 		$29.03 1
033 13A3455CP
BRACKET - COWL TO FRONT OUTRIGGER - RH 		$67.34 1
034 13A3582CP
BRACKET - FENDER - WHEEL ARCH LINER COVER PANEL - RH 		$180.86 1
035 13A3516CP
BRACKET - FENDER TO HINGE - LH 		$48.42 1
036 13A3517CP
BRACKET - FENDER TO HINGE - RH 		$48.42 1
037 13A3518CP
BRACKET - FENDER TO DOP - LH 		$58.08 1
038 13A3519CP
BRACKET - FENDER TO DOP - RH 		$58.08 1
039 13A5580CP
NVH FRONT SUPPORT - HINGE BLOCK - LH 		$28.86 1
040 13A5581CP
NVH FRONT SUPPORT - HINGE BLOCK - RH 		$28.86 1
