McLaren 12C Spider - 1 - A1 - BODY STRUCTURES - 1.2 - 02 - FRONT FRAME ASSEMBLY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A1918CP BRACKET - BUMPER MOUNTING - FRONT - RH $91.18 To Order
Photo Part No Description Price (each) Stock
11A7198CP Longitudinal Crash Structure - Front - RH - MY2015 $4,942.92 To Order
11A4842CP Longitudinal Crash Structure - Front - RH $2,882.37 To Order
Photo Part No Description Price (each) Stock
00RA282 SCREW - 12X25 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
00RA028 BOLT - M8X25 - 10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11Q1293CP Towing Eye / Tow Hook $163.16 To Order
Photo Part No Description Price (each) Stock
11A9243CP Subframe - Front - Noselift - TeDrive Rack $5,317.77 To Order
11A6502CP Subframe - Front - Noselift - TRW Rack $5,317.77 To Order
11A6502CP Subframe - Front - Noselift - TRW Rack $5,317.77 To Order
Photo Part No Description Price (each) Stock
11A7194CP Longitudinal Crash Structure - Front - LH - MY2015 $4,943.07 To Order
11A4451CP Longitudinal Crash Structure - Front - LH $2,939.65 To Order
Photo Part No Description Price (each) Stock
11A1919CP BRACKET - BUMPER MOUNTING - FRONT - LH $91.18 To Order
Photo Part No Description Price (each) Stock
11A6610CP Bumper Beam - Front $1,631.79 To Order
Photo Part No Description Price (each) Stock
11A9786CP BOLT - M10X85 - HEX $4.42 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA400 SCREW - HEX HEAD - M10X60 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RA400 SCREW - HEX HEAD - M10X60 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RA302 SCREW - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M1270CP BRACKET-BRAKE PIPE24LEARANCE $163.16 To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order
View All

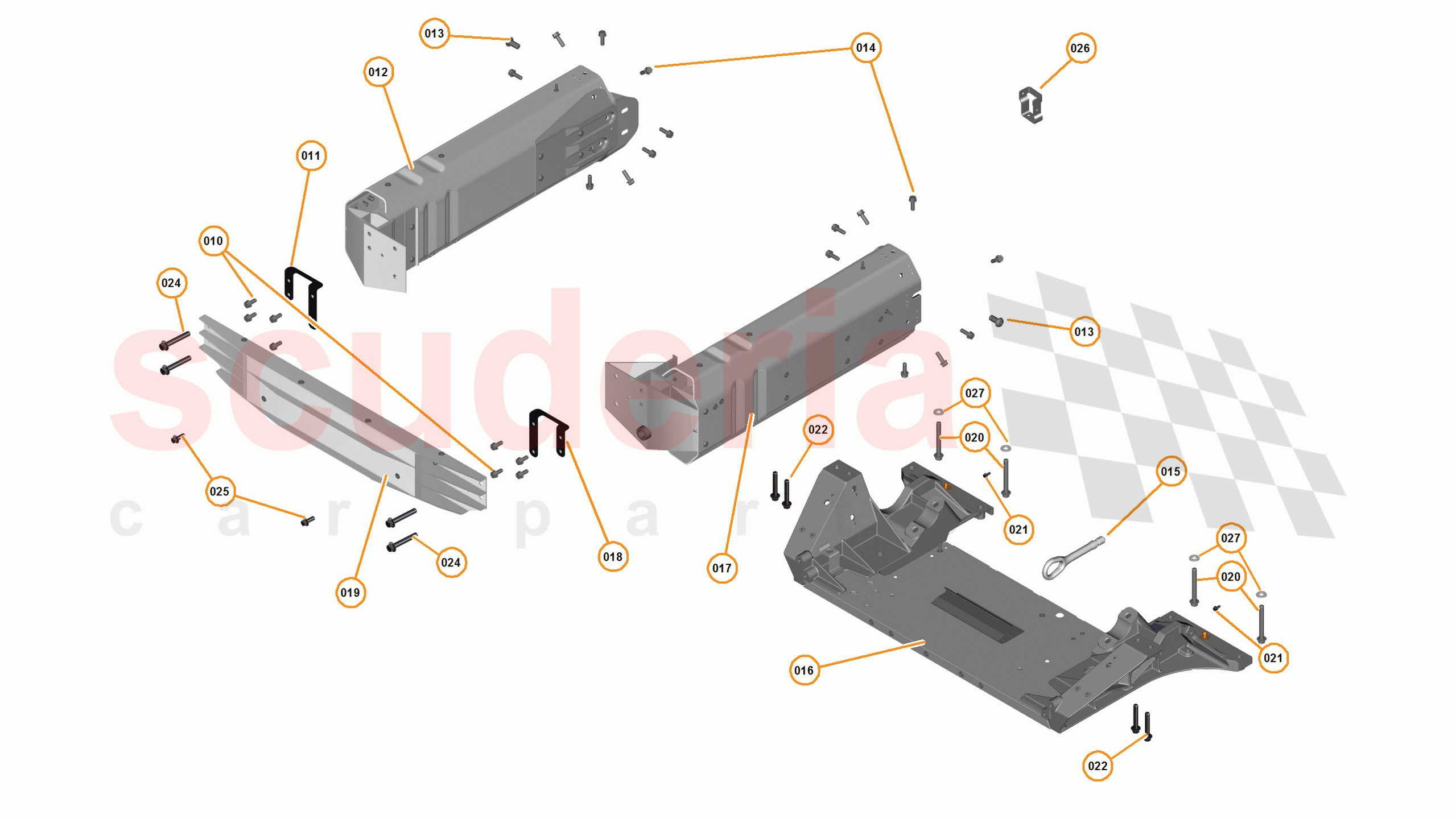

1 - A1 - BODY STRUCTURES - 1.2 - 02 - FRONT FRAME ASSEMBLY of McLaren McLaren 12C Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA002
BOLT - M8X20 - HEX 		- 8 Enquire
011 11A1918CP
BRACKET - BUMPER MOUNTING - FRONT - RH 		$91.18 1
012 11A7198CP
Longitudinal Crash Structure - Front - RH - MY2015 		$4,942.92 1
012 11A4842CP
Longitudinal Crash Structure - Front - RH 		$2,882.37 1
013 00RA282
SCREW - 12X25 - BUTTON 		- 1 Enquire
014 00RA028
BOLT - M8X25 - 10.9 - HEX 		- 9 Enquire
015 11Q1293CP
Towing Eye / Tow Hook
Towing Eye; Superseded parts: 11Q0070CP; 		$163.16 1
016 11A9243CP
Subframe - Front - Noselift - TeDrive Rack 		$5,317.77 1
016 11A6502CP
Subframe - Front - Noselift - TRW Rack 		$5,317.77 1
016 11A6502CP
Subframe - Front - Noselift - TRW Rack 		$5,317.77 1
017 11A7194CP
Longitudinal Crash Structure - Front - LH - MY2015 		$4,943.07 1
017 11A4451CP
Longitudinal Crash Structure - Front - LH 		$2,939.65 1
018 11A1919CP
BRACKET - BUMPER MOUNTING - FRONT - LH 		$91.18 1
019 11A6610CP
Bumper Beam - Front
Superseded parts: 11A1427CP; 		$1,631.79 1
020 11A9786CP
BOLT - M10X85 - HEX
Superseded parts: 00RA534; 		$4.42 4
021 00RA064
BOLT - M5X12 - HEX 		- 2 Enquire
022 00RA400
SCREW - HEX HEAD - M10X60 - 10.9
Superseded parts: 00RA284; 		- 4 Enquire
024 00RA400
SCREW - HEX HEAD - M10X60 - 10.9 		- 4 Enquire
025 00RA302
SCREW - M8X20 - HEX 		- 4 Enquire
026 11M1270CP
BRACKET-BRAKE PIPE24LEARANCE 		$163.16 1
027 00RC065
WASHER - M10X21X2.0 		- 4 Enquire
