Name: 11 - C3 - PEDAL ASSEMBLY - 11.1 - 01 - PEDAL ASSEMBLY
Rating: 4.2 (1 reviews)

11 - C3 - PEDAL ASSEMBLY - 11.1 - 01 - PEDAL ASSEMBLY of McLaren McLaren 12C Spider

View All

McLaren 12C Spider - 11 - C3 - PEDAL ASSEMBLY - 11.1 - 01 - PEDAL ASSEMBLY

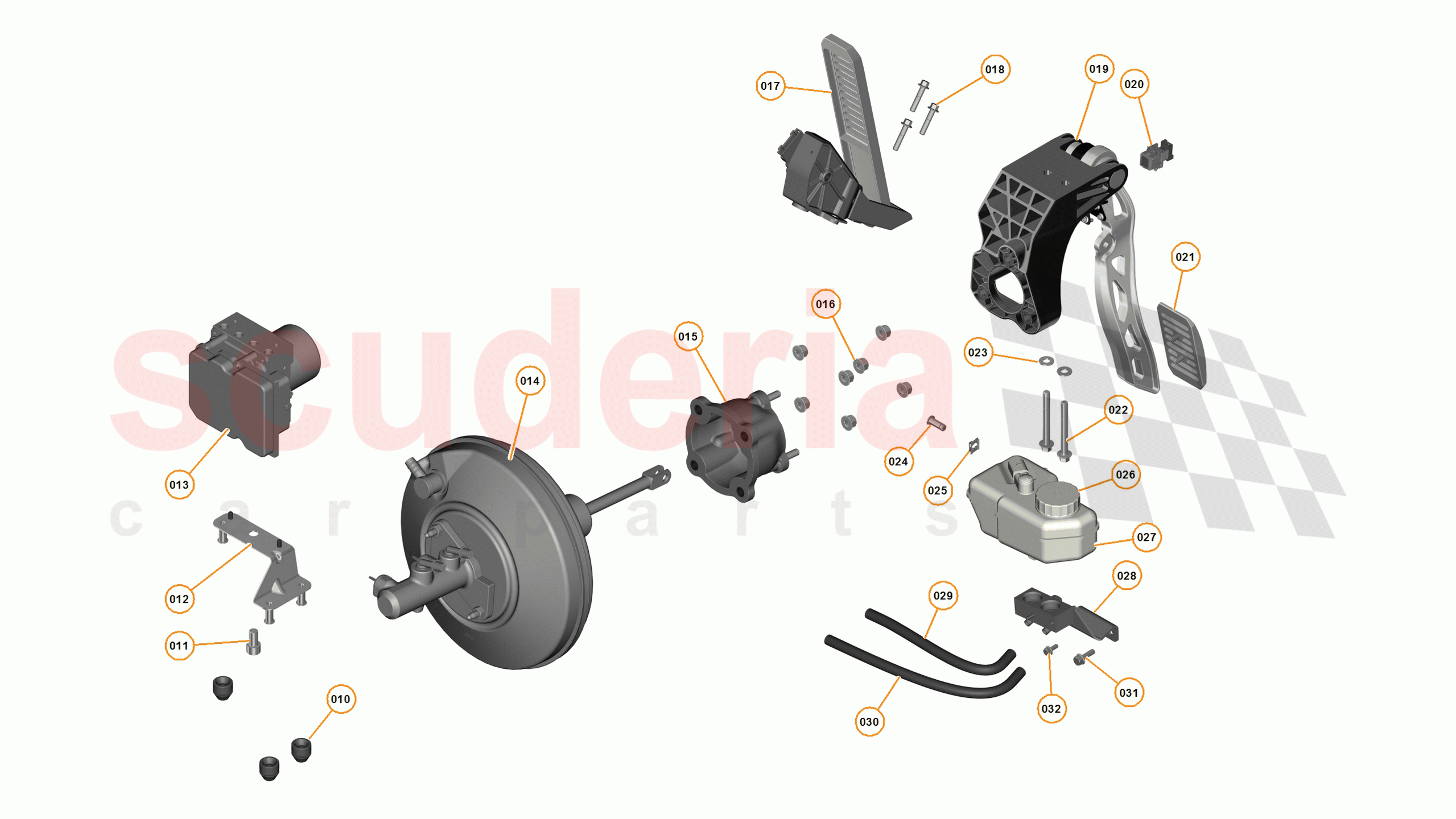

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11C0045CP	Mount - Anti-Vibration - Rubber	$38.64	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0225CP	BOLT-CAP HEAD-SOCK24-M10X18	$72.48	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0046CP	ASSY-BRKT-ABS-MODULATOR	$182.44	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0607CP	ABS Modulator	$1,928.77	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0754CP	BRKT-MNTG-BOOSTER 24	Enquire	To Order
	11C0775CP	Master Cylinder & Servo Assy	$1,449.77	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0754CP	BRKT-MNTG-BOOSTER 24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA056	NUT - M8-8 - LOCK HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11CA002CP	THROTTLE PEDAL	$921.86	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA285	SCREW - M6X30 - HEX - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13CA034CP	BRAKE PEDAL ASSY - RHD	Enquire	To Order
	11CA001CP	BRAKE PEDAL ASSY - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11M0352CP	Switch - Brake Light	$76.80	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0273CP	Pad - Brake Pedal	$231.94	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA236	BOLT-HEX HEAD-FLANGE-M8X70-8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC048	WASHER - FORM C - 21X1.6 - M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11CA005CP	PIN - PISTON ROD TO BRAKE PEDAL	$3.26	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0286CP	SPRING CLIP - CLEVIS PIN	$5.79	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0560CP	CAP-BRAKE RESERVOIR	$33.82	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0194CP	Brake Fluid Reservoir	$82.13	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0261CP	Bracket - Brake Fluid Reservoir - LHD	Enquire	To Order
	11C0034CP	Bracket - Brake Fluid Reservoir - RHD	$77.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0131CP	HOSE-PRIMARY	$24.15	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0135CP	HOSE-SECONDARY	$28.97	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA083	SCREW - M6X20 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11C0045CP	Mount - Anti-Vibration - Rubber	11C0045CP Mount - Anti-Vibration - Rubber	$38.64	3
011	11F0225CP	BOLT-CAP HEAD-SOCK24-M10X18	11F0225CP BOLT-CAP HEAD-SOCK24-M10X18	$72.48	1
012	11C0046CP	ASSY-BRKT-ABS-MODULATOR	11C0046CP ASSY-BRKT-ABS-MODULATOR	$182.44	1
013	11C0607CP	ABS Modulator	11C0607CP ABS Modulator Superseded parts: 11C0390CP;	$1,928.77	1
014	11C0754CP	BRKT-MNTG-BOOSTER 24	11C0754CP BRKT-MNTG-BOOSTER 24 Superseded parts: 11C0754CP;	-	1	Enquire
014	11C0775CP	Master Cylinder & Servo Assy	11C0775CP Master Cylinder & Servo Assy Superseded parts: 11C0673CP;	$1,449.77	2
015	11C0754CP	BRKT-MNTG-BOOSTER 24	11C0754CP BRKT-MNTG-BOOSTER 24	-	2	Enquire
016	00RA056	NUT - M8-8 - LOCK HEX	00RA056 NUT - M8-8 - LOCK HEX	-	7	Enquire
017	11CA002CP	THROTTLE PEDAL	11CA002CP THROTTLE PEDAL Superseded parts: 11C0388CP;	$921.86	1
018	00RA285	SCREW - M6X30 - HEX - BLACK	00RA285 SCREW - M6X30 - HEX - BLACK	-	3	Enquire
019	13CA034CP	BRAKE PEDAL ASSY - RHD	13CA034CP BRAKE PEDAL ASSY - RHD	-	1	Enquire
019	11CA001CP	BRAKE PEDAL ASSY - LHD	11CA001CP BRAKE PEDAL ASSY - LHD	-	1	Enquire
020	11M0352CP	Switch - Brake Light	11M0352CP Switch - Brake Light	$76.80	1
021	11C0273CP	Pad - Brake Pedal	11C0273CP Pad - Brake Pedal	$231.94	1
022	00RA236	BOLT-HEX HEAD-FLANGE-M8X70-8.8	00RA236 BOLT-HEX HEAD-FLANGE-M8X70-8.8	-	2	Enquire
023	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8	-	2	Enquire
024	11CA005CP	PIN - PISTON ROD TO BRAKE PEDAL	11CA005CP PIN - PISTON ROD TO BRAKE PEDAL	$3.26	1
025	11C0286CP	SPRING CLIP - CLEVIS PIN	11C0286CP SPRING CLIP - CLEVIS PIN	$5.79	1
026	11C0560CP	CAP-BRAKE RESERVOIR	11C0560CP CAP-BRAKE RESERVOIR	$33.82	1
027	11C0194CP	Brake Fluid Reservoir	11C0194CP Brake Fluid Reservoir	$82.13	1
028	11C0261CP	Bracket - Brake Fluid Reservoir - LHD	11C0261CP Bracket - Brake Fluid Reservoir - LHD	-	1	Enquire
028	11C0034CP	Bracket - Brake Fluid Reservoir - RHD	11C0034CP Bracket - Brake Fluid Reservoir - RHD	$77.31	1
029	11C0131CP	HOSE-PRIMARY	11C0131CP HOSE-PRIMARY	$24.15	1
030	11C0135CP	HOSE-SECONDARY	11C0135CP HOSE-SECONDARY	$28.97	1
031	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX	-	2	Enquire
032	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX	-	18	Enquire

11 - C3 - Pedal Assembly - 11.1 - 01 - Pedal Assembly

McLaren 12C Spider

McLaren 12C Spider - 11 - C3 - PEDAL ASSEMBLY - 11.1 - 01 - PEDAL ASSEMBLY
