16 - F1 - POWER UNIT - 16.18 - 02 - AIR INTAKE SYSTEM of McLaren McLaren 12C Spider

View All

McLaren 12C Spider - 16 - F1 - POWER UNIT - 16.18 - 02 - AIR INTAKE SYSTEM

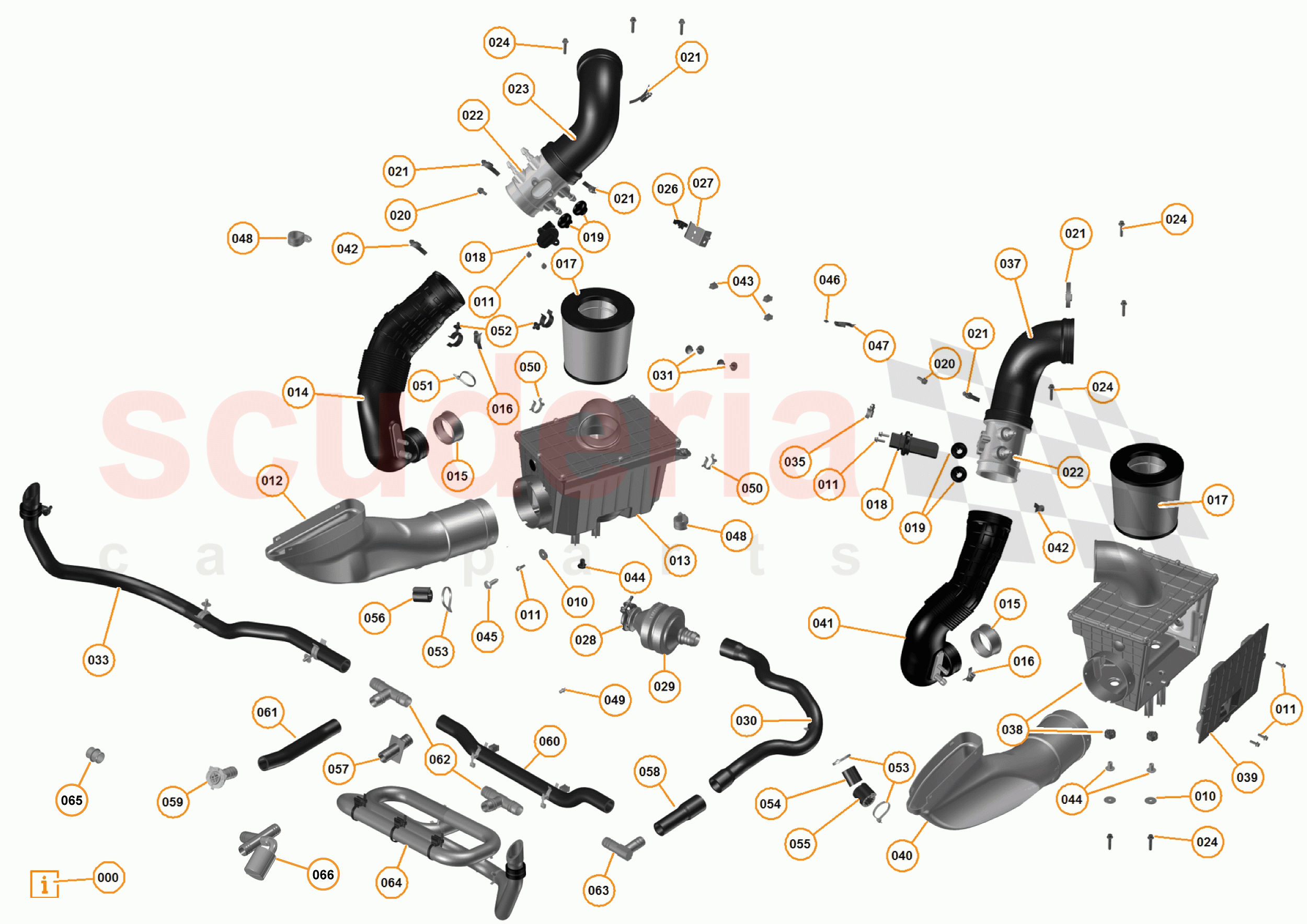

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11F1697SP	Foam Plug - Intake Sound Generator - Spider	$13.63	To Order
	00RM003	Rivet - DIA 5 x 10 - Torx	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC043	WASHER - M6XOD25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA063	Screw - M5x16 - Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1224SP	Duct - External Air Intake to Airbox - Spider - LH	$268.13	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0948CP	Airbox Assy - Engine - RH	$539.75	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0238CP	DUCT-MAF TUBE TO T24-RH	$192.75	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0471CP	SEAL - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE	$28.89	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB030	HOSE CLAMP - 60-80 - NORMA TORRO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0217CP	AIR FILTER	$115.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11F0020CP	SENSOR-MASS AIR FL24	$590.36	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0470CP	Isolator - Mass Air Flow Tube	$11.54	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA061	Screw - M6x16 - Flange Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB031	CLAMP - HOSE - 90-110	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0246CP	MAF TUBE	$327.69	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0944CP	ELBOW-AIRBOX TO MA24TUBE-RH	$250.60	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA073	SCREW - M6X30 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL011	EDGE CLIP - 202X4.6MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0640CP	Bracket - Mounting Clip - Hose - Intake Sound Generator - RH	$57.80	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0651CP	CLAMP - THROTTLE - INTAKE SOUND GENERATOR	$57.80	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0839CP	INTAKE SOUND GENERATOR	$327.69	To Order
	11F1293SP	Intake Sound Generator - Engine - Spider	$289.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1407SP	Hose - Primary - Intake Sound Generator - Spider - MY15	$96.36	To Order
	11F0603SP	Hose - Primary - Intake Sound Generator - Spider	$81.90	To Order

Photo	Part No	Description	Price (each)	Stock
	00RM007	Ratchet Rivet - 19.8-35 - Black - 0705831	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1699SP	Hose - Outlet - Intake Sound Generator - Spider - RH - MY15	$102.35	To Order
	11F0606SP	OUTLET HOSE-RH-ISG24PIDER	$106.01	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB053	HOSE CLAMP - 25-40MM - NORMA TORRO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0943CP	ELBOW-AIRBOX TO MA24TUBE-LH	$250.60	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0945CP	Airbox Assy - Engine - LH	$539.75	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0641CP	Airbox Service Panel - Engine	$163.83	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1225SP	Duct - External Air Intake to Airbox - Spider - RH	$268.13	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1057CP	Duct - Mass Air Flow Tube to Turbocharger - Engine - LH	$192.75	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB068	Hose Clamp - 80-100 - Norma Torro	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB144	Adaptor Base - M6 - Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0889CP	SPACER - TOPHAT - AIRBOX	$19.25	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA314	Blind Rivet-Screw - 6.3-6.81	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB023	CLIP SPACER - 1MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB066	SWIVEL CLIP - 25-27MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB085	P-CLIP - NORMA - DIA 25X15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG028	CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL023	CABLE TIE - HIGH TEMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG017	Firtree C Clip - 25-27mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL012	CABLE TIE - 300X4.6MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA366	PIPE PROTECTOR - 13MM ID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA367	PIPE PROTECTOR - 19MM ID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA357	PIPE PROTECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0604SP	Adaptor - Engine Bulkhead - Intake Sound Generator - Spider	$144.57	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0853SP	DEL-SECONDARY HOSE24SG-SPIDER	$28.89	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0607SP	Adaptor - Cabin Bulkhead - Intake Sound Generator - Spider	$91.55	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1408SP	Hose - Tertiary - Intake Sound Generator - Spider - MY15	$188.10	To Order
	11F0854SP	TERTIARY HOSE-ISG-24IDER	$183.12	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0855SP	Hose - Outlet Centre - Intake Sound Generator - Spider	$144.57	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0856SP	T-Piece - Connector - 19mm	$33.73	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1383SP	90 Degree Elbow - Intake Sound Generator - 19mm - Spider	$30.20	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1384SP	Hose - Intake Sound Generator - Spider - Outlet	$207.66	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1700SP	Joiner - NVH - RH - Intake Sound Generator - Spider - MY15	$154.21	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1587SP	Resonator - X Piece - Intake Sound Generator	$132.82	To Order
