McLaren 12C Coupe - 1 - A1 - BODY STRUCTURES - 1.3 - 03 - REAR FRAME ASSEMBLY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A8122CP Insert - M12 x M8 $70.96 To Order
11A8121CP Insert - M14 x M10 $70.65 To Order
11A8120CP Insert - M16 x M12 $71.12 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A4284CP PLUG - DOME - 25 DIAMETER $1.89 To Order
Photo Part No Description Price (each) Stock
00RG050 Plug - Dome - 33 Diameter Enquire To Order
Photo Part No Description Price (each) Stock
11A4747CP Panel - Engine Bay & Fuel Cell Floor $982.52 To Order
Photo Part No Description Price (each) Stock
00RM004 RIVET - 3.28.X 8MM - BOLLHOFF Enquire To Order
Photo Part No Description Price (each) Stock
11A3815CP COOLING FLIP - ENGINE BAY FLOOR $81.33 To Order
Photo Part No Description Price (each) Stock
11A3817CP COVER FRAME BULKHE24 MNTG LWR- $105.26 To Order
Photo Part No Description Price (each) Stock
11A3816CP COVER FRAME BULKHE24 MNTG LWR- $105.26 To Order
Photo Part No Description Price (each) Stock
11A1734CP Shim - 0.5mm - Rear - Lower $13.46 To Order
Photo Part No Description Price (each) Stock
11A1733CP SHIM REAR FRAME TO TUB-LWR-1MM $9.96 To Order
Photo Part No Description Price (each) Stock
11A1732CP SHIM REAR FRAME TO TUB-LWR-2MM $14.43 To Order
Photo Part No Description Price (each) Stock
00RA164 BOLT-HEX HEAD-FLANGE-M16X80-10 Enquire To Order
Photo Part No Description Price (each) Stock
00RA153 Bolt - M10x40 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11A1242CP SHIM REAR FRAME TO TUB-UPR-0.5 $14.43 To Order
Photo Part No Description Price (each) Stock
11A1241CP Shim - 1mm - Rear - Upper $15.38 To Order
Photo Part No Description Price (each) Stock
11A1240CP SHIM REAR FRAME TO24UB-UPR-2MM $24.07 To Order
Photo Part No Description Price (each) Stock
00RA157 Screw -M10x30 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11A7202CP Frame Assy - Rear - M10 - MY2015 $15,351.29 To Order
Photo Part No Description Price (each) Stock
11A3658CP Crash Can - Rear Frame - Repair Assembly - RH $1,378.15 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
11A8098CP Bumper Beam - Rear - MY2015 $1,837.55 To Order
Photo Part No Description Price (each) Stock
11A3659CP Crash Can - Rear Frame - Repair Assembly - LH $1,378.15 To Order
Photo Part No Description Price (each) Stock
11A4416CP CROSS BEAM - TRANSMISSION FLOOR $1,225.02 To Order
Photo Part No Description Price (each) Stock
11A2803CP Panel - Transmission Floor $308.23 To Order
Photo Part No Description Price (each) Stock
00RC013 WASHER - M6X18X1.6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA127 SCREW - M6X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA575 BOLT - M12X110 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A4940CP Engine Cradle Enquire To Order
Photo Part No Description Price (each) Stock
00RA181 SCREW - M6X12-8.8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11A3389CP BRKT-HEATSHIELD-MU24LER-LOWER $114.83 To Order
Photo Part No Description Price (each) Stock
00RC065 WASHER - M10X21X2.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RC066 WASHER - M12X28X2.5 Enquire To Order
Photo Part No Description Price (each) Stock
00RA400 SCREW - HEX HEAD - M10X60 - 10.9 Enquire To Order
Photo Part No Description Price (each) Stock
00RA284 Screw - M10x60 - hex Enquire To Order
View All

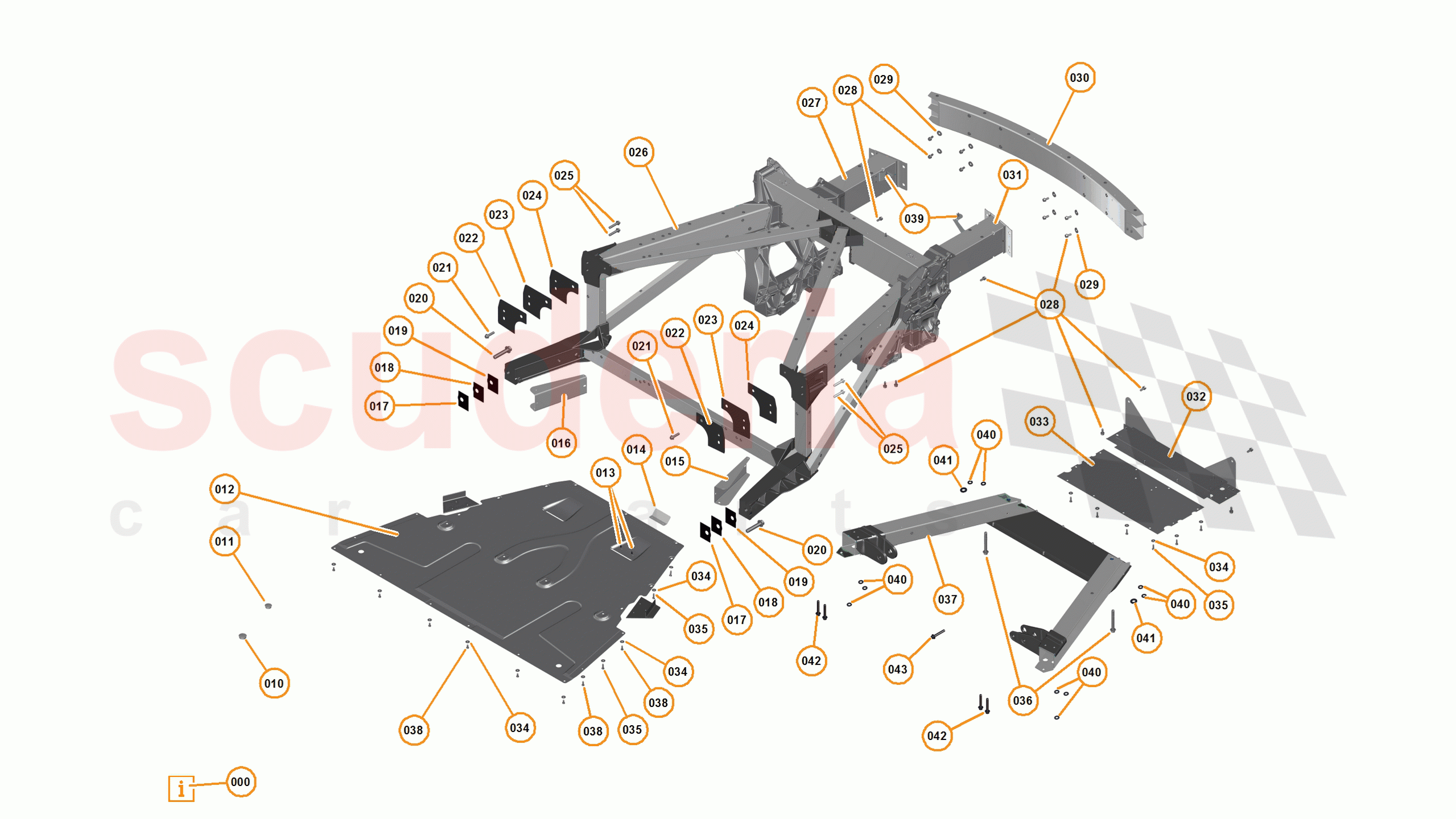

1 - A1 - BODY STRUCTURES - 1.3 - 03 - REAR FRAME ASSEMBLY of McLaren McLaren 12C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A8122CP
Insert - M12 x M8 		$70.96 1
000 11A8121CP
Insert - M14 x M10 		$70.65 1
000 11A8120CP
Insert - M16 x M12 		$71.12 1
000 11A8119CP
Insert - M20 x M16 		$70.49 1
010 11A4284CP
PLUG - DOME - 25 DIAMETER 		$1.89 10
011 00RG050
Plug - Dome - 33 Diameter 		- 2 Enquire
012 11A4747CP
Panel - Engine Bay & Fuel Cell Floor 		$982.52 1
013 00RM004
RIVET - 3.28.X 8MM - BOLLHOFF 		- 2 Enquire
014 11A3815CP
COOLING FLIP - ENGINE BAY FLOOR 		$81.33 1
015 11A3817CP
COVER FRAME BULKHE24 MNTG LWR- 		$105.26 1
016 11A3816CP
COVER FRAME BULKHE24 MNTG LWR- 		$105.26 1
017 11A1734CP
Shim - 0.5mm - Rear - Lower 		$13.46 2
018 11A1733CP
SHIM REAR FRAME TO TUB-LWR-1MM 		$9.96 2
019 11A1732CP
SHIM REAR FRAME TO TUB-LWR-2MM 		$14.43 2
020 00RA164
BOLT-HEX HEAD-FLANGE-M16X80-10 		- 2 Enquire
021 00RA153
Bolt - M10x40 - Hex 		- 2 Enquire
022 11A1242CP
SHIM REAR FRAME TO TUB-UPR-0.5 		$14.43 2
023 11A1241CP
Shim - 1mm - Rear - Upper 		$15.38 2
024 11A1240CP
SHIM REAR FRAME TO24UB-UPR-2MM 		$24.07 2
025 00RA157
Screw -M10x30 - Hex 		- 10 Enquire
026 11A7202CP
Frame Assy - Rear - M10 - MY2015 		$15,351.29 1
027 11A3658CP
Crash Can - Rear Frame - Repair Assembly - RH 		$1,378.15 1
028 00RA002
BOLT - M8X20 - HEX 		- 8 Enquire
029 00RC015
WASHER - M8X24X2 		- 8 Enquire
030 11A8098CP
Bumper Beam - Rear - MY2015 		$1,837.55 1
031 11A3659CP
Crash Can - Rear Frame - Repair Assembly - LH 		$1,378.15 1
032 11A4416CP
CROSS BEAM - TRANSMISSION FLOOR 		$1,225.02 1
033 11A2803CP
Panel - Transmission Floor 		$308.23 1
034 00RC013
WASHER - M6X18X1.6 		- 10 Enquire
035 00RA127
SCREW - M6X20 - HEX 		- 10 Enquire
036 00RA575
BOLT - M12X110 - HEX 		- 2 Enquire
037 11A4940CP
Engine Cradle 		- 1 Enquire
038 00RA181
SCREW - M6X12-8.8 - HEX 		- 6 Enquire
039 11A3389CP
BRKT-HEATSHIELD-MU24LER-LOWER 		$114.83 2
040 00RC065
WASHER - M10X21X2.0 		- 10 Enquire
041 00RC066
WASHER - M12X28X2.5 		- 2 Enquire
042 00RA400
SCREW - HEX HEAD - M10X60 - 10.9
Superseded parts: 00RA284; 		- 4 Enquire
043 00RA284
Screw - M10x60 - hex 		- 4 Enquire
