A/c Unit: Engine Compartment Devices

Maserati Quattroporte (2003-2007) DuoSelect

Find Your Part

Maserati Quattroporte (2003-2007) DuoSelect - A/C UNIT: ENGINE COMPARTMENT DEVICES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
189215 AC Condenser $559.92 To Order
Photo Part No Description Price (each) Stock
199514 L.H. UPPER BRACKET $45.04 To Order
199515 R.H. UPPER BRACKET $45.04 To Order
Photo Part No Description Price (each) Stock
199672 RH LOWER BRACKET $8.63 To Order
Photo Part No Description Price (each) Stock
199516 LH LOWER BRACKET $18.92 To Order
Photo Part No Description Price (each) Stock
165137 SCREW $1.91 To Order
Photo Part No Description Price (each) Stock
67085100 DEHYDRATING FILTER $44.93 IN STOCK
Photo Part No Description Price (each) Stock
67306400 Pipe From Condensor to Filter $217.30 To Order
Photo Part No Description Price (each) Stock
67579900 CLIP $1.16 To Order
Photo Part No Description Price (each) Stock
67306300 Pipe From Joint to Condensor $91.75 IN STOCK
Photo Part No Description Price (each) Stock
67060400 COMPLETE DEHYDRATING FILTER SUPPORT BRACKET $18.92 To Order
Photo Part No Description Price (each) Stock
16287127 SCREW $1.98 To Order
Photo Part No Description Price (each) Stock
11612524 SCREW $3.02 To Order
Photo Part No Description Price (each) Stock
67574400 PIPE FROM COMPRESSOR TO CONDENSER JOINT $247.89 To Order
Photo Part No Description Price (each) Stock
68194600 PIPE FROM COMPRESSOR TO SHIELD JOINT $416.80 To Order
Photo Part No Description Price (each) Stock
379290721 CLIP $1.85 To Order
Photo Part No Description Price (each) Stock
284728 AIR CONDITIONING DELPHI COMPRESSOR $2,513.56 IN STOCK
Photo Part No Description Price (each) Stock
141496 SPACER $13.28 To Order
Photo Part No Description Price (each) Stock
175428 SCREW M8 X 120 X 1.25 $10.85 To Order
Photo Part No Description Price (each) Stock
14307224 SCREW $4.03 IN STOCK
Photo Part No Description Price (each) Stock
11193874 WASHERD.8.4-16X1.4 $1.42 IN STOCK
Photo Part No Description Price (each) Stock
227256 BRACKET $33.65 To Order
Photo Part No Description Price (each) Stock
67063200 CLIP $3.76 IN STOCK
Photo Part No Description Price (each) Stock
67306500 PIPE FROM FILTER TO SHIELD $388.16 To Order
Photo Part No Description Price (each) Stock
65628200 AIR CONDITIONING PRESSURE SWITCH $150.12 IN STOCK
Photo Part No Description Price (each) Stock
186196 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.36 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.09 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $1.23 To Order
Photo Part No Description Price (each) Stock
68392000 O.R. GASKET $7.72 IN STOCK
Photo Part No Description Price (each) Stock
68392100 O-Ring $5.23 IN STOCK
Photo Part No Description Price (each) Stock
66309700 O.R. GASKET $19.43 IN STOCK
Photo Part No Description Price (each) Stock
68392700 O-Ring $3.93 IN STOCK
Photo Part No Description Price (each) Stock
68392800 O.R. GASKET $5.94 IN STOCK
Photo Part No Description Price (each) Stock
66309800 O.R. GASKET $18.92 IN STOCK
Photo Part No Description Price (each) Stock
66309600 O-RING $19.43 IN STOCK
Photo Part No Description Price (each) Stock
67085400 O Ring D18 $25.69 IN STOCK
Photo Part No Description Price (each) Stock
82068100 O-Ring D.25 Enquire To Order
Photo Part No Description Price (each) Stock
68199800 BRACKET $14.93 To Order
Photo Part No Description Price (each) Stock
16297627 SCREW $2.24 To Order
Photo Part No Description Price (each) Stock
225487 BRACKET $20.69 To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.09 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.36 IN STOCK
View All

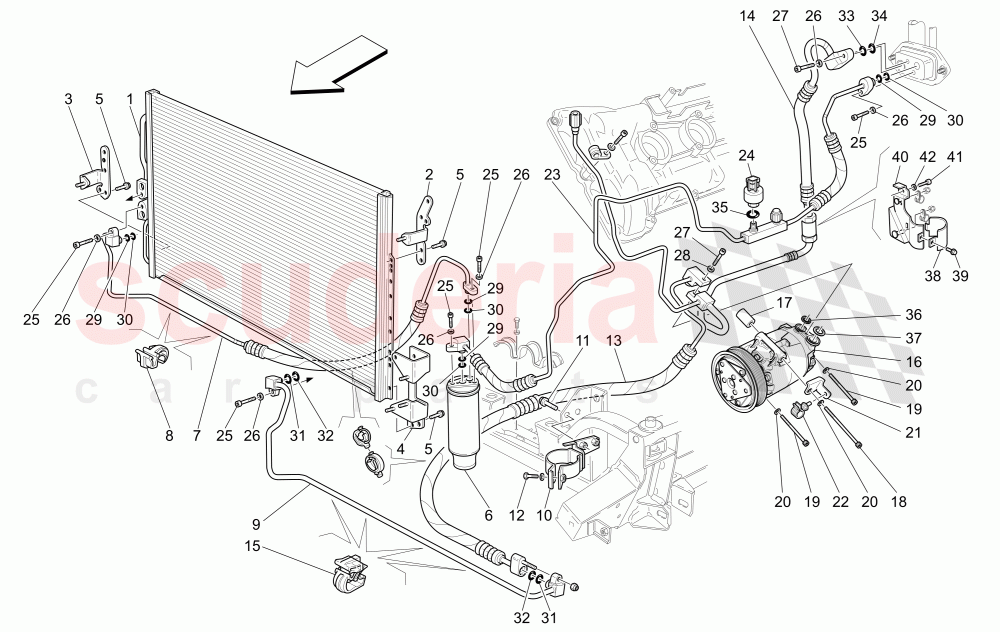

A/C UNIT: ENGINE COMPARTMENT DEVICES of Maserati Maserati Quattroporte (2003-2007) DuoSelect Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 189215
AC Condenser 		$559.92 (11.8% off) 1
2 199514
L.H. UPPER BRACKET 		$45.04 1
2 199515
R.H. UPPER BRACKET 		$45.04 1
3 199672
RH LOWER BRACKET 		$8.63 (13% off) 1
4 199516
LH LOWER BRACKET 		$18.92 (14.4% off) 1
5 165137
SCREW 		$1.91 (18% off) 10
6 67085100
DEHYDRATING FILTER
IN STOCK 		$44.93 (39.2% off) 1
7 67306400
Pipe From Condensor to Filter 		$217.30 1
8 67579900
CLIP 		$1.16 2
9 67306300
Pipe From Joint to Condensor
IN STOCK 		$91.75 1
10 67060400
COMPLETE DEHYDRATING FILTER SUPPORT BRACKET 		$18.92 (14.4% off) 1
11 16287127
SCREW 		$1.98 2
12 11612524
SCREW 		$3.02 1
13 67574400
PIPE FROM COMPRESSOR TO CONDENSER JOINT 		$247.89 (16.6% off) 1
14 68194600
PIPE FROM COMPRESSOR TO SHIELD JOINT 		$416.80 (12.3% off) 1
15 379290721
CLIP 		$1.85 2
16 284728
AIR CONDITIONING DELPHI COMPRESSOR
If ordered for engine # lower than 196384 or for this engine # :196387-196388-196392-196389-196391-196239-196400-196402-196399-196394-196393, also take P/N 271881
IN STOCK 		$2,513.56 1
17 141496
SPACER 		$13.28 1
18 175428
SCREW M8 X 120 X 1.25 		$10.85 1
19 14307224
SCREW
M8X90
IN STOCK 		$4.03 2
20 11193874
WASHERD.8.4-16X1.4
D.8.4-16X1.4
IN STOCK 		$1.42 3
21 227256
BRACKET 		$33.65 (3.9% off) 1
22 67063200
CLIP
IN STOCK 		$3.76 1
23 67306500
PIPE FROM FILTER TO SHIELD 		$388.16 (11.4% off) 1
24 65628200
AIR CONDITIONING PRESSURE SWITCH
IN STOCK 		$150.12 (8.7% off) 1
25 186196
SCREW 		- 6 Enquire
26 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5
IN STOCK 		$2.36 6
27 248334
SCREW M6 X 14MM
IN STOCK 		$3.09 1
28 127494
WASHER 		$1.23 1
29 68392000
O.R. GASKET
IN STOCK 		$7.72 (47.7% off) 4
30 68392100
O-Ring
IN STOCK 		$5.23 (31.5% off) 4
31 66309700
O.R. GASKET
IN STOCK 		$19.43 2
32 68392700
O-Ring
IN STOCK 		$3.93 (39.5% off) 2
33 68392800
O.R. GASKET
IN STOCK 		$5.94 1
34 66309800
O.R. GASKET
IN STOCK 		$18.92 1
35 66309600
O-RING
IN STOCK 		$19.43 1
36 67085400
O Ring D18
IN STOCK 		$25.69 1
37 82068100
O-Ring D.25 		- 1 Enquire
38 68199800
BRACKET 		$14.93 (2.2% off) 1
39 16297627
SCREW 		$2.24 1
40 225487
BRACKET 		$20.69 1
41 248334
SCREW M6 X 14MM
IN STOCK 		$3.09 1
42 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4
IN STOCK 		$2.36 1
