Name: A/C UNIT: TUNNEL DEVICES (Available with: FOUR-ZONE AUTOMATIC CLIMA)
Rating: 5.0 (1 reviews)

A/C UNIT: TUNNEL DEVICES (Available with: FOUR-ZONE AUTOMATIC CLIMA) of Maserati Maserati Quattroporte (2017+) Diesel

View All

Maserati Quattroporte (2017+) Diesel - A/C UNIT: TUNNEL DEVICES (Available with: FOUR-ZONE AUTOMATIC CLIMA)

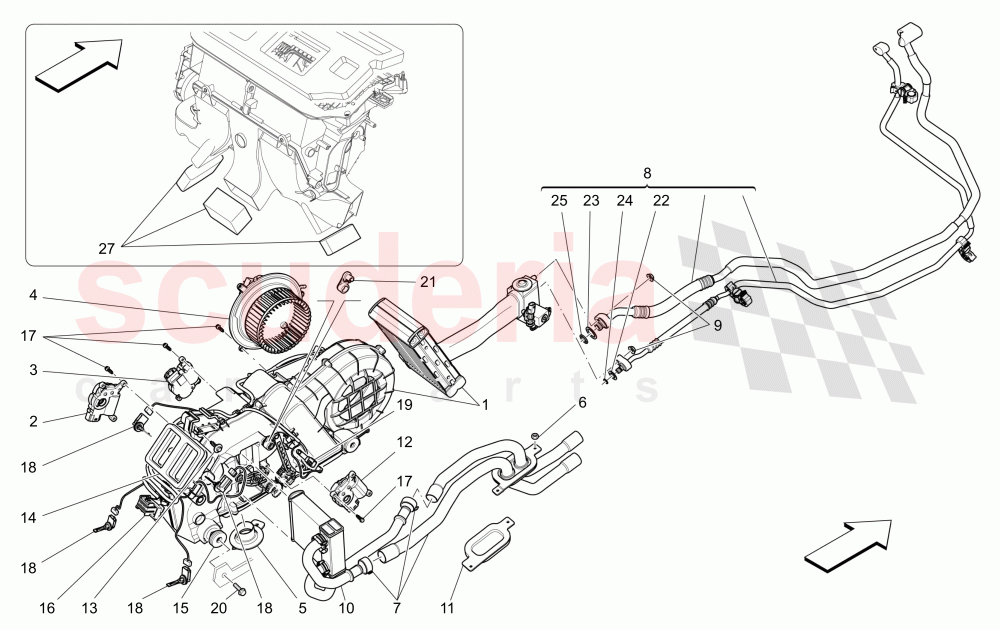

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	673002681	REAR AIR CONDITIONING CASE	$1,442.95	To Order

Photo	Part No	Description	Price (each)	Stock
	670035896	AIR ACTUATOR	$143.29	To Order

Photo	Part No	Description	Price (each)	Stock
	670035898	LH ACTUATOR	$143.29	To Order

Photo	Part No	Description	Price (each)	Stock
	670003710	ELECTROFAN	$709.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670002045	CONDENSATION DRAIN PIPE	$20.21	To Order

Photo	Part No	Description	Price (each)	Stock
	675000093	NUTM6	$1.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	673000043	RUBBER HOSE ASSEMBLY	$292.62	To Order

Photo	Part No	Description	Price (each)	Stock

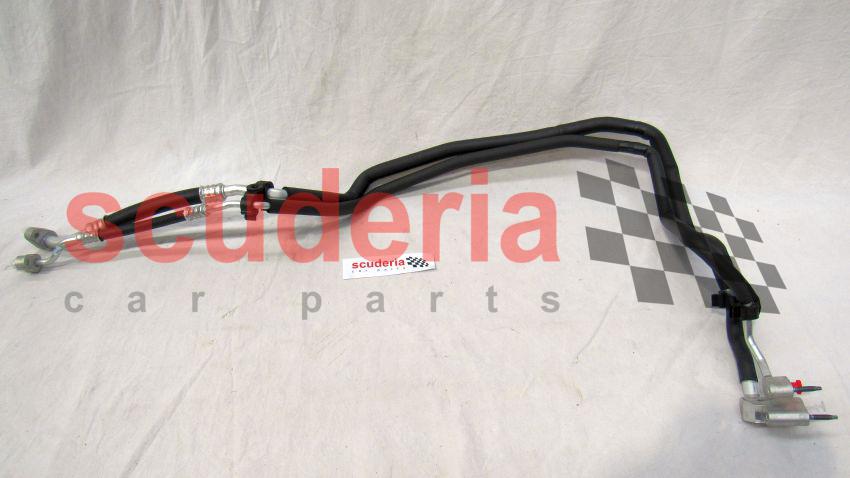

	670001961	PIPE BETWEEN EVAPOURATOR AND UNION	$210.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000328	NUT	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	673000042	RADIATOR AND PIPES	$432.89	To Order

Photo	Part No	Description	Price (each)	Stock
	670005088	PLUG	$29.41	To Order

Photo	Part No	Description	Price (each)	Stock
	670035897	RH ACTUATOR	$143.29	To Order

Photo	Part No	Description	Price (each)	Stock
	673000049	SCREW	$31.31	To Order

Photo	Part No	Description	Price (each)	Stock
	673000050	GASKET	$33.26	To Order

Photo	Part No	Description	Price (each)	Stock
	673000044	FASTENING RUBBER	$66.53	To Order

Photo	Part No	Description	Price (each)	Stock
	673002683	REAR COOLER WIRING HARNESS	$434.07	To Order
	673002682	REAR COOLER WIRING HARNESS	$370.38	To Order

Photo	Part No	Description	Price (each)	Stock
	62771900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000046	AIR SENSOR	$141.09	To Order

Photo	Part No	Description	Price (each)	Stock
	673000045	EVAPORATOR SENSOR	$47.97	To Order

Photo	Part No	Description	Price (each)	Stock
	675000436	SCREW	$2.58	To Order

Photo	Part No	Description	Price (each)	Stock
	673007371	LEVER	$50.33	To Order

Photo	Part No	Description	Price (each)	Stock
	675000122	O-RING 1/2" A/C	$8.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000123	3/4" SEAL	$8.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000119	O-RING 68 x 187	$2.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000306	O-RING 13.6 X 2.43	$2.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670009117	PAD	$36.50	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	670035894	REAR AIR CONTIDIONING SYSTEM ASSEMBLY - REAR SEAT BENCH, THREE PLACES	670035894 REAR AIR CONTIDIONING SYSTEM ASSEMBLY - REAR SEAT BENCH, THREE PLACES	$1,600.37	1
-	670035895	REAR AIR CONTIDIONING SYSTEM ASSEMBLY - COMFORT-LUXURY REAR SEATS WITH CENTRAL CONSOLE	670035895 REAR AIR CONTIDIONING SYSTEM ASSEMBLY - COMFORT-LUXURY REAR SEATS WITH CENTRAL CONSOLE	$1,470.20	1
1	673002681	REAR AIR CONDITIONING CASE	673002681 REAR AIR CONDITIONING CASE	$1,442.95	1
2	670035896	AIR ACTUATOR	670035896 AIR ACTUATOR	$143.29	1
3	670035898	LH ACTUATOR	670035898 LH ACTUATOR	$143.29	1
4	670003710	ELECTROFAN IN STOCK	670003710 ELECTROFAN IN STOCK	$709.64	1
5	670002045	CONDENSATION DRAIN PIPE	670002045 CONDENSATION DRAIN PIPE	$20.21	1
6	675000093	NUTM6 IN STOCK	675000093 NUTM6 M6 IN STOCK	$1.56	2
7	673000043	RUBBER HOSE ASSEMBLY	673000043 RUBBER HOSE ASSEMBLY	$292.62	1
8	670001961	PIPE BETWEEN EVAPOURATOR AND UNION IN STOCK	670001961 PIPE BETWEEN EVAPOURATOR AND UNION IN STOCK	$210.89	1
9	675000328	NUT	675000328 NUT	$1.46	2
10	673000042	RADIATOR AND PIPES	673000042 RADIATOR AND PIPES	$432.89	1
11	670005088	PLUG	670005088 PLUG	$29.41	1
12	670035897	RH ACTUATOR	670035897 RH ACTUATOR	$143.29	1
13	673000049	SCREW	673000049 SCREW	$31.31	1
14	673000050	GASKET	673000050 GASKET	$33.26	1
15	673000044	FASTENING RUBBER	673000044 FASTENING RUBBER	$66.53	4
16	673002683	REAR COOLER WIRING HARNESS	673002683 REAR COOLER WIRING HARNESS	$434.07	1
16	673002682	REAR COOLER WIRING HARNESS	673002682 REAR COOLER WIRING HARNESS	$370.38	1
17	62771900	SCREW	62771900 SCREW	-	33	Enquire
18	673000046	AIR SENSOR	673000046 AIR SENSOR	$141.09	4
19	673000045	EVAPORATOR SENSOR	673000045 EVAPORATOR SENSOR	$47.97	1
20	675000436	SCREW	675000436 SCREW	$2.58	4
21	673007371	LEVER	673007371 LEVER	$50.33	2
22	675000122	O-RING 1/2" A/C IN STOCK	675000122 O-RING 1/2" A/C IN STOCK	$8.48	1
23	675000123	3/4" SEAL IN STOCK	675000123 3/4" SEAL IN STOCK	$8.93	1
24	675000119	O-RING 68 x 187 IN STOCK	675000119 O-RING 68 x 187 6,8x1,87 IN STOCK	$2.08	1
25	675000306	O-RING 13.6 X 2.43 IN STOCK	675000306 O-RING 13.6 X 2.43 13,6x2,43 IN STOCK	$2.11	1
27	670009117	PAD	670009117 PAD	$36.50	1

A/C Unit: Tunnel Devices (Available With: Four-Zone Automatic Clima)

Maserati Quattroporte (2017+) Diesel
