Name: A/C UNIT: ENGINE COMPARTMENT DEVICES (Not available with: FOUR-ZONE AUTOMATIC CLIMA)
Rating: 5.0 (1 reviews)

A/C UNIT: ENGINE COMPARTMENT DEVICES (Not available with: FOUR-ZONE AUTOMATIC CLIMA) of Maserati Maserati Quattroporte (2013+) GTS

View All

Maserati Quattroporte (2013+) GTS - A/C UNIT: ENGINE COMPARTMENT DEVICES (Not available with: FOUR-ZONE AUTOMATIC CLIMA)

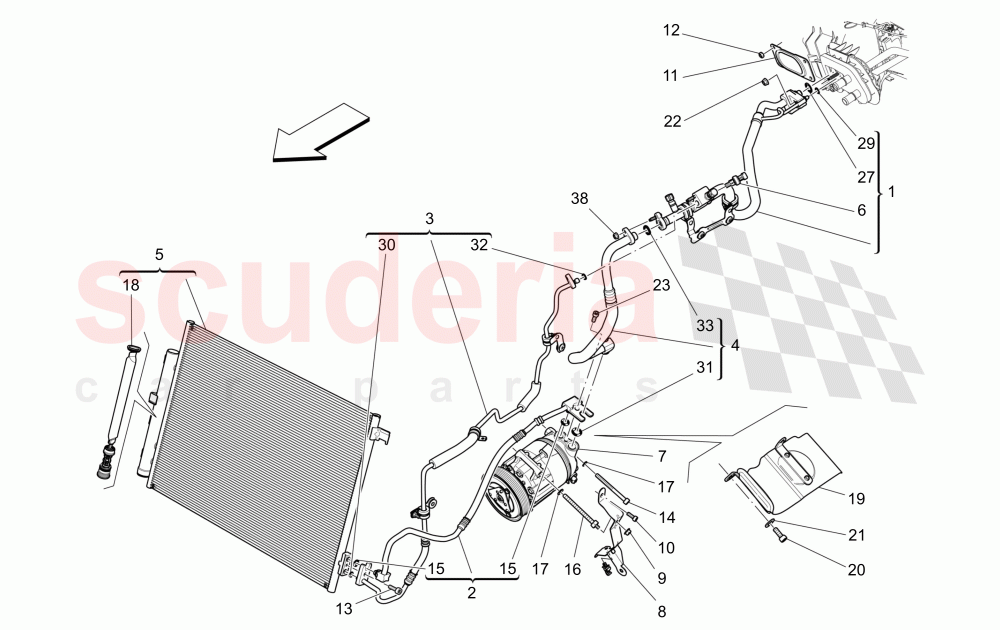

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670007954	PIPE FROM EVAPOURATOR TO UNION	$104.03	To Order

Photo	Part No	Description	Price (each)	Stock
	670001939	PIPE A.C. - COMPRESSOR	$85.06	To Order

Photo	Part No	Description	Price (each)	Stock
	670003216	PIPE BETWEEN CONDENSER AND JUNCTION	$143.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670007952	PIPE FROM COMPRESSOR TO UNION	$117.90	To Order

Photo	Part No	Description	Price (each)	Stock
	670009820	AC CONDENSER	$837.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670038668	PRESSOSTAT	$60.31	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	954109	Air Conditioning Compressor v8	$1,583.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	288682	BRACKET	$46.76	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUTM6	$1.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000314	SCREW	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	670005087	PLUG	$17.09	To Order

Photo	Part No	Description	Price (each)	Stock
	675000315	NUT	$1.83	To Order

Photo	Part No	Description	Price (each)	Stock
	675000456	SCREWM8X25	$4.82	To Order

Photo	Part No	Description	Price (each)	Stock
	14307224	SCREW	$4.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000122	O-RING 1/2" A/C	$8.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	286687	STUD	$34.68	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHERD.8.4-16X1.4	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	673000010	DEHYDRATOR FILTER KIT	$243.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670002170	HEAT SHIELD	$42.43	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	$2.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000328	NUT	$1.44	To Order

Photo	Part No	Description	Price (each)	Stock
	675000249	SCREW	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	675000123	3/4" SEAL	$8.77	To Order

Photo	Part No	Description	Price (each)	Stock
	675000121	3/8" SEAL	$6.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000121	3/8" SEAL	$6.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000123	3/4" SEAL	$8.77	To Order

Photo	Part No	Description	Price (each)	Stock
	675000119	O-RING 68 x 187	$2.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000306	O-RING 13.6 X 2.43	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000315	NUT	$1.83	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670007954	PIPE FROM EVAPOURATOR TO UNION	670007954 PIPE FROM EVAPOURATOR TO UNION	$104.03	1
2	670001939	PIPE A.C. - COMPRESSOR	670001939 PIPE A.C. - COMPRESSOR	$85.06	1
3	670003216	PIPE BETWEEN CONDENSER AND JUNCTION IN STOCK	670003216 PIPE BETWEEN CONDENSER AND JUNCTION IN STOCK	$143.47	1
4	670007952	PIPE FROM COMPRESSOR TO UNION	670007952 PIPE FROM COMPRESSOR TO UNION	$117.90	1
5	670009820	AC CONDENSER IN STOCK	670009820 AC CONDENSER IN STOCK	$837.43	1
6	670038668	PRESSOSTAT ARRIVING SOON	670038668 PRESSOSTAT ARRIVING SOON	$60.31	1
7	954109	Air Conditioning Compressor v8 IN STOCK	954109 Air Conditioning Compressor v8 IN STOCK	$1,583.30	1
8	288682	BRACKET	288682 BRACKET	$46.76	1
9	14059211	NUTM6 IN STOCK	14059211 NUTM6 M6 IN STOCK	$1.52	2
10	675000314	SCREW	675000314 SCREW	$1.43	1
11	670005087	PLUG	670005087 PLUG	$17.09	1
12	675000315	NUT	675000315 NUT	$1.83	4
13	675000456	SCREWM8X25	675000456 SCREWM8X25 M8X25	$4.82	1
14	14307224	SCREW IN STOCK	14307224 SCREW IN STOCK	$4.04	1
15	675000122	O-RING 1/2" A/C IN STOCK	675000122 O-RING 1/2" A/C IN STOCK	$8.32	2
16	286687	STUD	286687 STUD	$34.68	2
17	11193874	WASHERD.8.4-16X1.4 IN STOCK	11193874 WASHERD.8.4-16X1.4 D.8.4-16X1.4 IN STOCK	$1.43	3
18	673000010	DEHYDRATOR FILTER KIT IN STOCK	673000010 DEHYDRATOR FILTER KIT IN STOCK	$243.19	1
19	670002170	HEAT SHIELD	670002170 HEAT SHIELD	$42.43	1
20	231617	SCREW M6 X 18 IN STOCK	231617 SCREW M6 X 18 M6X16 IN STOCK	$2.60	3
21	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X1.2 IN STOCK	$2.36	3
22	675000328	NUT	675000328 NUT	$1.44	1
23	675000249	SCREW	675000249 SCREW	$1.45	1
27	675000123	3/4" SEAL	675000123 3/4" SEAL	$8.77	1
29	675000121	3/8" SEAL IN STOCK	675000121 3/8" SEAL IN STOCK	$6.59	1
30	675000121	3/8" SEAL IN STOCK	675000121 3/8" SEAL IN STOCK	$6.59	1
31	675000123	3/4" SEAL	675000123 3/4" SEAL	$8.77	1
32	675000119	O-RING 68 x 187 IN STOCK	675000119 O-RING 68 x 187 6,8x1,87 IN STOCK	$2.04	1
33	675000306	O-RING 13.6 X 2.43 IN STOCK	675000306 O-RING 13.6 X 2.43 13,6x2,43 IN STOCK	$2.07	1
38	675000315	NUT	675000315 NUT	$1.83	2

A/c Unit: Engine Compartment Devices (Not Available With: Four-Zone Automatic Clima)

Maserati Quattroporte (2013+) GTS

Maserati Quattroporte (2013+) GTS - A/C UNIT: ENGINE COMPARTMENT DEVICES (Not available with: FOUR-ZONE AUTOMATIC CLIMA)
