REAR SUSPENSION (06201) parts for Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP

Find Your Part

Authorised by Maserati SPA

REAR SUSPENSION of Maserati Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP

View All

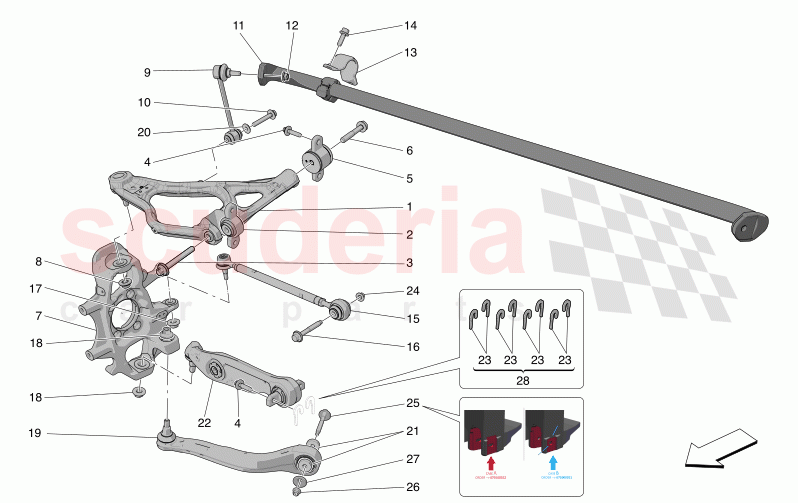

Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP - REAR SUSPENSION (06201)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670156071	COMPLETE L.H. REAR UPPER LEVER	$450.51	To Order
	670161646	COMPLETE R.H. REAR UPPER LEVER	$611.10	To Order

Photo	Part No	Description	Price (each)	Stock
	670160347	BUSHING	$82.10	To Order

Photo	Part No	Description	Price (each)	Stock
	670007895	SCREW M12	$8.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675001345	SCREW	$2.37	To Order

Photo	Part No	Description	Price (each)	Stock
	670160337	BUSHING	$189.13	To Order

Photo	Part No	Description	Price (each)	Stock
	675001196	SCREW	$10.35	To Order

Photo	Part No	Description	Price (each)	Stock
	670175415	LH REAR HUB HOLDER ASSEMBLY	$586.87	To Order
	670181987	LH REAR HUB HOLDER ASSEMBLY	$691.92	To Order
	670175416	RH REAR HUB HOLDER ASSEMBLY	$586.87	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	675002403	NUT	$1.42	To Order

Photo	Part No	Description	Price (each)	Stock
	670161672	LH BALL TIE ROD	$76.40	To Order
	670161850	RH BALL TIE ROD	$76.40	To Order

Photo	Part No	Description	Price (each)	Stock
	670160647	SCREW	$5.14	To Order

Photo	Part No	Description	Price (each)	Stock
	670156481	REAR STABILIZER BAR	$555.56	To Order

Photo	Part No	Description	Price (each)	Stock
	675000184	NUT	$1.87	To Order

Photo	Part No	Description	Price (each)	Stock
	675001071	U-BOLT	$14.62	To Order

Photo	Part No	Description	Price (each)	Stock
	675001015	SCREW	$1.87	To Order

Photo	Part No	Description	Price (each)	Stock
	670216677	REAR TOE-IN ADJUSTMENT ROD	$342.43	To Order

Photo	Part No	Description	Price (each)	Stock
	675001020	SCREW	$4.90	To Order

Photo	Part No	Description	Price (each)	Stock
	675001193	NUT	$6.00	To Order

Photo	Part No	Description	Price (each)	Stock
	675001188	NUT	$6.00	To Order

Photo	Part No	Description	Price (each)	Stock
	670161839	LH REAR SWINGING ARM	$364.64	To Order
	670161836	RH REAR SWINGING ARM	$418.18	To Order

Photo	Part No	Description	Price (each)	Stock
	670213189	WASHER	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	670160632	SPACER	$18.89	To Order

Photo	Part No	Description	Price (each)	Stock
	670160354	AXLE ROD	$266.67	To Order
	670160333	AXLE ROD	$266.67	To Order

Photo	Part No	Description	Price (each)	Stock
	670175780	CAMBER ADJUSTMENT PLATE	$10.94	To Order
	670175781	CAMBER ADJUSTMENT PLATE	$10.94	To Order
	670175782	CAMBER ADJUSTMENT PLATE	$10.94	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	675000127	NUT M12	$2.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670007895	SCREW M12	$8.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000023	NUT M12	$1.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670174098	WASHER	$19.48	To Order

Photo	Part No	Description	Price (each)	Stock
	673013880	KIT CAMBER ADJUSTMENT PLATE	$1,278.79	To Order

View All

REAR SUSPENSION of Maserati Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	1	670156071	COMPLETE L.H. REAR UPPER LEVER	670156071 COMPLETE L.H. REAR UPPER LEVER	$450.51	1
	1	670161646	COMPLETE R.H. REAR UPPER LEVER	670161646 COMPLETE R.H. REAR UPPER LEVER	$611.10	1
	2	670160347	BUSHING	670160347 BUSHING	$82.10	2
	3	670007895	SCREW M12 IN STOCK	670007895 SCREW M12 IN STOCK	$8.25	2
	4	675001345	SCREW	675001345 SCREW	$2.37	12
	5	670160337	BUSHING	670160337 BUSHING	$189.13	2
	6	675001196	SCREW	675001196 SCREW	$10.35	2
	7	670175415	LH REAR HUB HOLDER ASSEMBLY	670175415 LH REAR HUB HOLDER ASSEMBLY Available with: DUAL-CAST STEEL BRAKES ;	$586.87	1
	7	670181987	LH REAR HUB HOLDER ASSEMBLY	670181987 LH REAR HUB HOLDER ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7000931 - 99999999; Available with: CARBON CERAMIC BRAKES ;	$691.92	1
	7	670175416	RH REAR HUB HOLDER ASSEMBLY	670175416 RH REAR HUB HOLDER ASSEMBLY Available with: DUAL-CAST STEEL BRAKES ;	$586.87	1
	7	670181989	RH REAR HUB HOLDER ASSEMBLY	670181989 RH REAR HUB HOLDER ASSEMBLY WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7000931 - 99999999; Available with: CARBON CERAMIC BRAKES ;	$691.92	1
	8	675002403	NUT	675002403 NUT Bespoke Assembly Number 7003417 - 99999999;	$1.42	2
	9	670161672	LH BALL TIE ROD	670161672 LH BALL TIE ROD	$76.40	1
	9	670161850	RH BALL TIE ROD	670161850 RH BALL TIE ROD	$76.40	1
	10	670160647	SCREW	670160647 SCREW	$5.14	2
	11	670156481	REAR STABILIZER BAR	670156481 REAR STABILIZER BAR	$555.56	1
	12	675000184	NUT	675000184 NUT	$1.87	2
	13	675001071	U-BOLT	675001071 U-BOLT	$14.62	2
	14	675001015	SCREW	675001015 SCREW	$1.87	4
	15	670216677	REAR TOE-IN ADJUSTMENT ROD	670216677 REAR TOE-IN ADJUSTMENT ROD	$342.43	2
	16	675001020	SCREW	675001020 SCREW	$4.90	2
	17	675001193	NUT	675001193 NUT	$6.00	2
	18	675001188	NUT	675001188 NUT	$6.00	4
	19	670161839	LH REAR SWINGING ARM	670161839 LH REAR SWINGING ARM	$364.64	1
	19	670161836	RH REAR SWINGING ARM	670161836 RH REAR SWINGING ARM	$418.18	1
	20	670213189	WASHER	670213189 WASHER	$1.32	2
	21	670160632	SPACER	670160632 SPACER	$18.89	4
	22	670160354	AXLE ROD	670160354 AXLE ROD LH side;	$266.67	1
	22	670160333	AXLE ROD	670160333 AXLE ROD RH side;	$266.67	1
	23	670175780	CAMBER ADJUSTMENT PLATE	670175780 CAMBER ADJUSTMENT PLATE THICKNESS 0.5 mm;	$10.94	4
	23	670175781	CAMBER ADJUSTMENT PLATE	670175781 CAMBER ADJUSTMENT PLATE THICKNESS 1 mm;	$10.94	4
	23	670175782	CAMBER ADJUSTMENT PLATE	670175782 CAMBER ADJUSTMENT PLATE THICKNESS 2 mm;	$10.94	4
	23	670175783	CAMBER ADJUSTMENT PLATE	670175783 CAMBER ADJUSTMENT PLATE THICKNESS 3 mm;	$10.94	4
	23	670160335	CAMBER ADJUSTMENT PLATE	670160335 CAMBER ADJUSTMENT PLATE THICKNESS 4 mm;	$10.94	4
	24	675000127	NUT M12 IN STOCK	675000127 NUT M12 IN STOCK	$2.41	2
	25	670007895	SCREW M12 IN STOCK	670007895 SCREW M12 Bespoke Assembly Number 7002663 - 99999999; IN STOCK	$8.25	2
	26	675000023	NUT M12 IN STOCK	675000023 NUT M12 IN STOCK	$1.51	2
	27	670174098	WASHER	670174098 WASHER	$19.48	2
	28	673013880	KIT CAMBER ADJUSTMENT PLATE	673013880 KIT CAMBER ADJUSTMENT PLATE The kit includes 50 plates for each thickness;	$1,278.79	1
	29	675009264	WASHER	675009264 WASHER Bespoke Assembly Number 7003417 - 99999999;	$1.76	2
