Lubrication And Gearbox Oil Cooling

Maserati MC20 Notte Automatic 3.0 BT V6 2WD 630HP

Illustration Number: 03501

Find Your Part

Maserati MC20 Notte Automatic 3.0 BT V6 2WD 630HP - LUBRICATION AND GEARBOX OIL COOLING (03501)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670156680 WATER DELIVERY PIPE FROM PUMP TO ENGINE $328.22 To Order
Photo Part No Description Price (each) Stock
670156681 WATER DELIVERY PIPE FROM ENGINE TO EXCHANGER $328.22 To Order
Photo Part No Description Price (each) Stock
675000351 COLLARD.30 $2.95 To Order
675000351 COLLARD.30 $2.95 To Order
Photo Part No Description Price (each) Stock
670160121 VENT PIPE $24.52 To Order
Photo Part No Description Price (each) Stock
675001203 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
670160122 BRACKET $32.11 To Order
Photo Part No Description Price (each) Stock
675001204 SCREW $14.15 To Order
View All

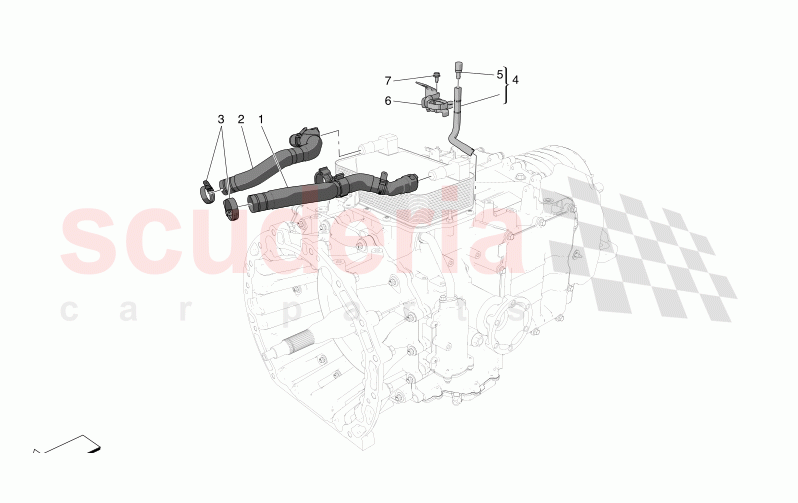

LUBRICATION AND GEARBOX OIL COOLING of Maserati Maserati MC20 Notte Automatic 3.0 BT V6 2WD 630HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670156680
WATER DELIVERY PIPE FROM PUMP TO ENGINE 		$328.22 1
2 670156681
WATER DELIVERY PIPE FROM ENGINE TO EXCHANGER 		$328.22 1
3 675000351
COLLARD.30 		$2.95 2
3 675000351
COLLARD.30 		$2.95 2
4 670160121
VENT PIPE 		$24.52 1
5 675001203
PLUG 		- 1 Enquire
6 670160122
BRACKET 		$32.11 1
7 675001204
SCREW 		$14.15 1
