Name: A/C UNIT: DASHBOARD DEVICES
Rating: 5.0 (1 reviews)

A/C UNIT: DASHBOARD DEVICES of Maserati Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

View All

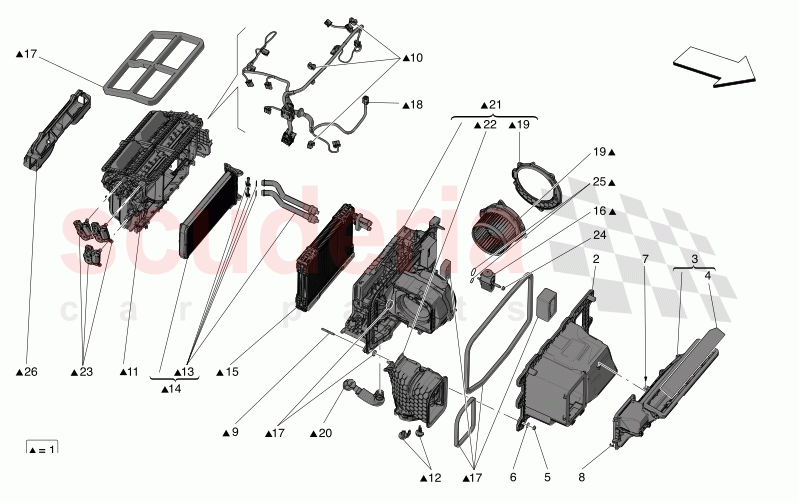

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - A/C UNIT: DASHBOARD DEVICES (08411)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670296462	AIR CONDITIONING ASSEMBLY	$2,031.26	To Order

Photo	Part No	Description	Price (each)	Stock
	670179044	SHIELD FOR WATER	$188.45	To Order
	670215216	SHIELD FOR WATER	$174.53	To Order

Photo	Part No	Description	Price (each)	Stock
	670178996	AIR INLET MODULE	$263.04	To Order
	670178670	AIR INLET MODULE	$2,175.08	To Order

Photo	Part No	Description	Price (each)	Stock
	670215189	POLLEN FILTER	$67.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675001186	NUT	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	675001364	WASHER	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	675001115	SCREW	$3.66	To Order

Photo	Part No	Description	Price (each)	Stock
	670178477	CLIP	$0.90	To Order

Photo	Part No	Description	Price (each)	Stock
	673012115	STUD	$58.52	To Order

Photo	Part No	Description	Price (each)	Stock
	673012116	CLIP	$11.68	To Order

Photo	Part No	Description	Price (each)	Stock
	673014094	CENTRAL BODY	$276.81	To Order

Photo	Part No	Description	Price (each)	Stock
	673012111	AIR INLET/REC KINEMATICS	$11.23	To Order

Photo	Part No	Description	Price (each)	Stock
	673012105	KIT WATER PIPES	$39.86	To Order

Photo	Part No	Description	Price (each)	Stock
	673012106	HEATER CORE W PIPES	$358.57	To Order

Photo	Part No	Description	Price (each)	Stock
	673012113	EVAPORATOR ASSEMBLY	$462.00	To Order

Photo	Part No	Description	Price (each)	Stock
	673012114	TXV	$113.94	To Order

Photo	Part No	Description	Price (each)	Stock
	673012108	GASKET KIT	$75.89	To Order

Photo	Part No	Description	Price (each)	Stock
	673012104	A/C WIRING	$149.23	To Order

Photo	Part No	Description	Price (each)	Stock
	673012112	ELECTROFAN	$407.49	To Order

Photo	Part No	Description	Price (each)	Stock
	673012107	KIT DRAIN PIPE	$30.99	To Order

Photo	Part No	Description	Price (each)	Stock
	673012117	FRONT DRAIN WALL TO CHASSIS	$475.39	To Order

Photo	Part No	Description	Price (each)	Stock
	673012301	KIT FRONT AIR INLET/REC CASES	$36.39	To Order

Photo	Part No	Description	Price (each)	Stock
	670104418	ACTUATOR	$67.65	To Order

Photo	Part No	Description	Price (each)	Stock
	675001306	NUT	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	673009339	GASKET KIT	$47.94	To Order

Photo	Part No	Description	Price (each)	Stock
	673012110	FLOOR DUCT	$34.66	To Order

View All

Diagram Tap to enlarge

A/c Unit: Dashboard Devices

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

Illustration Number: 08411

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - A/C UNIT: DASHBOARD DEVICES (08411)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670296462	AIR CONDITIONING ASSEMBLY	670296462 AIR CONDITIONING ASSEMBLY Bespoke Assembly Number 7001514 - 99999999;	$2,031.26	1
2	670179044	SHIELD FOR WATER	670179044 SHIELD FOR WATER EU CN US CD JP ME KO;	$188.45	1
2	670215216	SHIELD FOR WATER	670215216 SHIELD FOR WATER AU UK JRH IN SA;	$174.53	1
3	670178996	AIR INLET MODULE	670178996 AIR INLET MODULE EU CN US CD JP ME KO;	$263.04	1
3	670178670	AIR INLET MODULE	670178670 AIR INLET MODULE AU UK JRH IN SA;	$2,175.08	1
4	670215189	POLLEN FILTER IN STOCK	670215189 POLLEN FILTER IN STOCK	$67.86	1
5	675001186	NUT	675001186 NUT	$1.74	8
6	675001364	WASHER	675001364 WASHER	$1.63	8
7	675001115	SCREW	675001115 SCREW	$3.66	1
8	670178477	CLIP	670178477 CLIP	$0.90	3
9	673012115	STUD	673012115 STUD	$58.52	8
10	673012116	CLIP	673012116 CLIP	$11.68	3
11	673014094	CENTRAL BODY	673014094 CENTRAL BODY Bespoke Assembly Number 7001514 - 99999999;	$276.81	1
12	673012111	AIR INLET/REC KINEMATICS	673012111 AIR INLET/REC KINEMATICS	$11.23	1
13	673012105	KIT WATER PIPES	673012105 KIT WATER PIPES	$39.86	1
14	673012106	HEATER CORE W PIPES	673012106 HEATER CORE W PIPES	$358.57	1
15	673012113	EVAPORATOR ASSEMBLY	673012113 EVAPORATOR ASSEMBLY	$462.00	1
16	673012114	TXV	673012114 TXV	$113.94	1
17	673012108	GASKET KIT	673012108 GASKET KIT	$75.89	1
18	673012104	A/C WIRING	673012104 A/C WIRING	$149.23	1
19	673012112	ELECTROFAN	673012112 ELECTROFAN	$407.49	1
20	673012107	KIT DRAIN PIPE	673012107 KIT DRAIN PIPE	$30.99	1
21	673012117	FRONT DRAIN WALL TO CHASSIS	673012117 FRONT DRAIN WALL TO CHASSIS	$475.39	1
22	673012301	KIT FRONT AIR INLET/REC CASES	673012301 KIT FRONT AIR INLET/REC CASES	$36.39	1
23	670104418	ACTUATOR	670104418 ACTUATOR	$67.65	7
24	675001306	NUT	675001306 NUT	$1.20	1
25	673009339	GASKET KIT	673009339 GASKET KIT	$47.94	1
26	673012110	FLOOR DUCT	673012110 FLOOR DUCT	$34.66	1

A/c Unit: Dashboard Devices

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

Illustration Number: 08411

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - A/C UNIT: DASHBOARD DEVICES (08411)
