A/C Unit: Engine Compartment Devices

Maserati MC20 GT2 Stradale Automatic 3.0 BT V6 2WD 630HP - 640HP

Illustration Number: 08401

Find Your Part

Maserati MC20 GT2 Stradale Automatic 3.0 BT V6 2WD 630HP - 640HP - A/C UNIT: ENGINE COMPARTMENT DEVICES (08401)

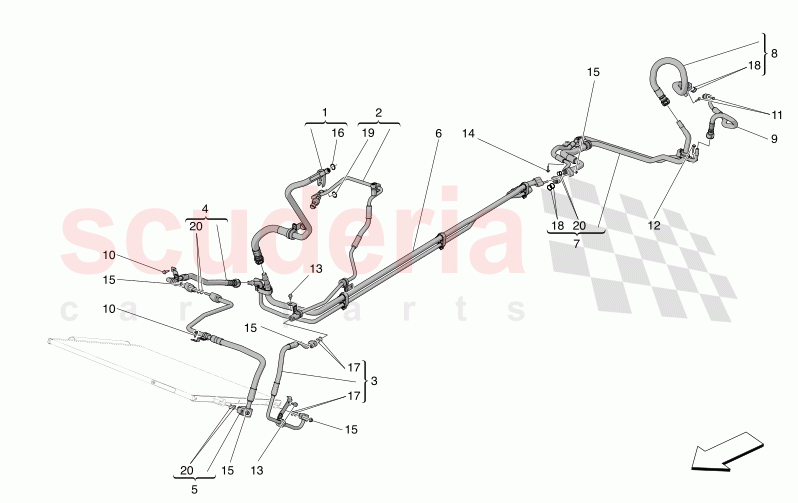

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670175330 COMPLETE FLEXIBLE PIPE FROM EVAPORATOR TO UNION $256.95 To Order
Photo Part No Description Price (each) Stock
670214681 COMPLETE FLEXIBLE PIPE FROM CONDENSER TO EVAPORATOR $201.89 To Order
Photo Part No Description Price (each) Stock
670175351 PIPE BETWEEN CONDENSER AND JUNCTION $128.46 To Order
Photo Part No Description Price (each) Stock
670175333 COMPLETE FLEXIBLE PIPE FROM CONDENSER TO EVAPORATOR $136.63 To Order
Photo Part No Description Price (each) Stock
670175332 HOSE FITTING REAR HVAC $169.26 To Order
Photo Part No Description Price (each) Stock
670182007 PIPE $201.89 To Order
Photo Part No Description Price (each) Stock
670175335 COMPLETE FLEXIBLE PIPE FROM UNION TO COMPRESSOR $249.81 To Order
Photo Part No Description Price (each) Stock
670175334 SECOND SECTION FLEXIBLE PIPE $136.63 To Order
Photo Part No Description Price (each) Stock
670175355 COMPLETE FLEXIBLE PIPE FROM COMPRESSOR TO UNION $136.63 To Order
Photo Part No Description Price (each) Stock
675001232 SCREW $8.21 To Order
Photo Part No Description Price (each) Stock
675001211 SCREW $8.21 To Order
Photo Part No Description Price (each) Stock
675001356 SCREW $10.10 To Order
Photo Part No Description Price (each) Stock
675001308 SCREW $8.21 To Order
Photo Part No Description Price (each) Stock
675001402 SCREW $8.21 To Order
Photo Part No Description Price (each) Stock
675001307 NUT $1.14 To Order
Photo Part No Description Price (each) Stock
675000123 3/4" SEAL $8.78 To Order
Photo Part No Description Price (each) Stock
675000119 O-RING 68 x 187 $2.10 IN STOCK
Photo Part No Description Price (each) Stock
675000306 O-RING 13.6 X 2.43 $2.04 IN STOCK
Photo Part No Description Price (each) Stock
675000121 3/8" SEAL $6.56 IN STOCK
Photo Part No Description Price (each) Stock
675001987 O.R. GASKET $8.09 To Order
View All
A/C UNIT: ENGINE COMPARTMENT DEVICES of Maserati Maserati MC20 GT2 Stradale Automatic 3.0 BT V6 2WD 630HP - 640HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670175330
COMPLETE FLEXIBLE PIPE FROM EVAPORATOR TO UNION
EU CN US CD JP ME KO; 		$256.95 1
2 670214681
COMPLETE FLEXIBLE PIPE FROM CONDENSER TO EVAPORATOR
EU CN US CD JP ME KO; 		$201.89 1
3 670175351
PIPE BETWEEN CONDENSER AND JUNCTION 		$128.46 1
4 670175333
COMPLETE FLEXIBLE PIPE FROM CONDENSER TO EVAPORATOR 		$136.63 1
5 670175332
HOSE FITTING REAR HVAC 		$169.26 1
6 670182007
PIPE 		$201.89 1
7 670175335
COMPLETE FLEXIBLE PIPE FROM UNION TO COMPRESSOR 		$249.81 1
8 670175334
SECOND SECTION FLEXIBLE PIPE 		$136.63 1
9 670175355
COMPLETE FLEXIBLE PIPE FROM COMPRESSOR TO UNION 		$136.63 1
10 675001232
SCREW 		$8.21 2
11 675001211
SCREW 		$8.21 2
12 675001356
SCREW 		$10.10 2
13 675001308
SCREW 		$8.21 1
14 675001402
SCREW 		$8.21 2
15 675001307
NUT 		$1.14 4
16 675000123
3/4" SEAL 		$8.78 1
17 675000119
O-RING 68 x 187
IN STOCK 		$2.10 4
18 675000306
O-RING 13.6 X 2.43
IN STOCK 		$2.04 4
19 675000121
3/8" SEAL
IN STOCK 		$6.56 1
20 675001987
O.R. GASKET 		$8.09 6
