Fuel Pumps And Connection Lines

Maserati MC20 GT2 Stradale Automatic 3.0 BT V6 2WD 630HP - 640HP

Illustration Number: 01431

Find Your Part

Maserati MC20 GT2 Stradale Automatic 3.0 BT V6 2WD 630HP - 640HP - FUEL PUMPS AND CONNECTION LINES (01431)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670160696 RING NUT $43.72 To Order
Photo Part No Description Price (each) Stock
670160697 SCREW $17.83 To Order
Photo Part No Description Price (each) Stock
670156469 FUEL DELIVERY PIPE $66.53 To Order
Photo Part No Description Price (each) Stock
670296126 DELIVERY PIPES ASSEMBLY $123.83 To Order
Photo Part No Description Price (each) Stock
675001240 FUEL PUMP ELECTRIC CONTROL UNIT $139.65 To Order
Photo Part No Description Price (each) Stock
675001186 NUT $1.73 To Order
Photo Part No Description Price (each) Stock
675001364 WASHER $1.62 To Order
Photo Part No Description Price (each) Stock
675001165 GASKET $30.43 To Order
Photo Part No Description Price (each) Stock
670174867 FUEL PUMP CABLE $101.17 To Order
Photo Part No Description Price (each) Stock
670156484 BRACKET $13.44 To Order
Photo Part No Description Price (each) Stock
670051104 SCREW $2.29 To Order
View All

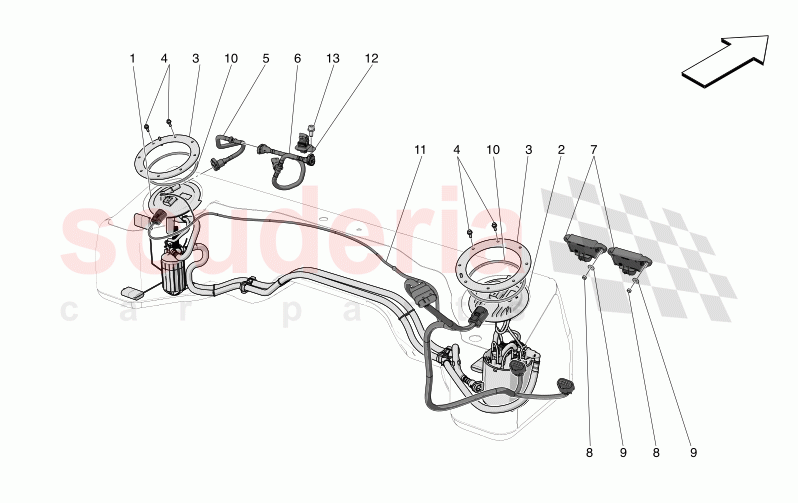

FUEL PUMPS AND CONNECTION LINES of Maserati Maserati MC20 GT2 Stradale Automatic 3.0 BT V6 2WD 630HP - 640HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
3 670160696
RING NUT 		$43.72 2
4 670160697
SCREW 		$17.83 16
5 670156469
FUEL DELIVERY PIPE 		$66.53 1
6 670296126
DELIVERY PIPES ASSEMBLY
Bespoke Assembly Number 7001365 - 99999999; 		$123.83 1
7 675001240
FUEL PUMP ELECTRIC CONTROL UNIT 		$139.65 2
8 675001186
NUT
Bespoke Assembly Number 7001533 - 99999999; 		$1.73 4
9 675001364
WASHER 		$1.62 4
10 675001165
GASKET 		$30.43 2
11 670174867
FUEL PUMP CABLE 		$101.17 1
12 670156484
BRACKET 		$13.44 1
13 670051104
SCREW 		$2.29 1
