Gearbox Housings

Maserati MC20 Automatic 3.0 BT V6 2WD 630HP

Illustration Number: 03101

Find Your Part

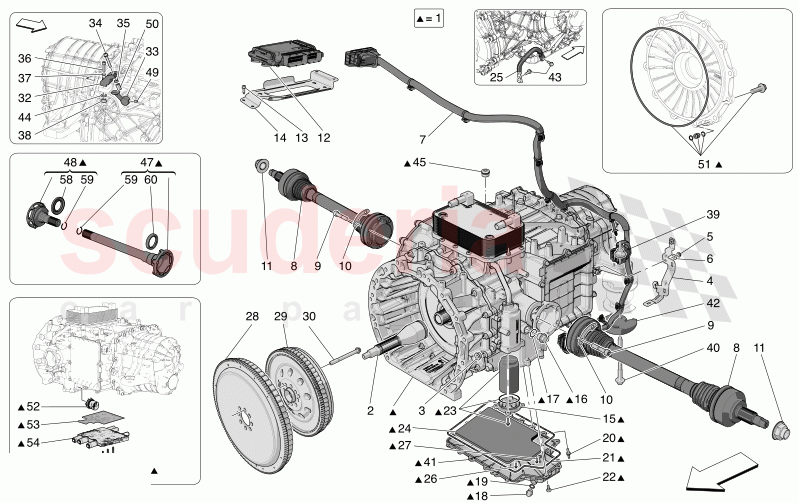

Maserati MC20 Automatic 3.0 BT V6 2WD 630HP - GEARBOX HOUSINGS (03101)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670175118 AUTOMATIC GEARBOX ASSEMBLY $27,344.14 To Order
670307882 AUTOMATIC GEARBOX ASSEMBLY $24,055.52 To Order
670307882 AUTOMATIC GEARBOX ASSEMBLY $24,055.52 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670181842 SHAFT $884.53 To Order
Photo Part No Description Price (each) Stock
675001210 NUT $1.56 To Order
Photo Part No Description Price (each) Stock
670160120 BRACKET $30.96 To Order
Photo Part No Description Price (each) Stock
670175151 NUT $1.56 To Order
Photo Part No Description Price (each) Stock
670175146 WASHER $2.71 To Order
Photo Part No Description Price (each) Stock
670212968 AUTOMATIC GEARBOX WIRING HARNESS $240.78 To Order
Photo Part No Description Price (each) Stock
670301968 REAR AXLE SHAFT $208.56 To Order
Photo Part No Description Price (each) Stock
670295832 SCREW $4.99 To Order
Photo Part No Description Price (each) Stock
670002408 PLATE $3.69 To Order
Photo Part No Description Price (each) Stock
675000138 NUT $9.44 IN STOCK
Photo Part No Description Price (each) Stock
670214553 CONTROL UNIT GEARBOX $3,395.61 To Order
Photo Part No Description Price (each) Stock
675001384 SCREW $1.47 To Order
Photo Part No Description Price (each) Stock
670161898 CONTROL UNIT BRACKET $45.33 To Order
Photo Part No Description Price (each) Stock
673011251 COVER FILTER $204.85 To Order
673015849 COVER FILTER $264.45 To Order
Photo Part No Description Price (each) Stock
673011243 OIL LEVEL PLUG $34.12 To Order
Photo Part No Description Price (each) Stock
673011244 O.R. GASKET $11.89 To Order
Photo Part No Description Price (each) Stock
673011245 PLUG $29.73 IN STOCK
Photo Part No Description Price (each) Stock
673011246 O.R. GASKET $9.19 IN STOCK
Photo Part No Description Price (each) Stock
673011571 PIN $31.93 To Order
Photo Part No Description Price (each) Stock
673014161 GASKET Enquire To Order
673014161 GASKET Enquire To Order
673011569 GASKET $126.81 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673011570 SCREW $13.46 To Order
Photo Part No Description Price (each) Stock
673011242 FILTER KIT $201.12 IN STOCK
Photo Part No Description Price (each) Stock
673011566 FILTER $200.74 To Order
Photo Part No Description Price (each) Stock
670181161 GROUND CABLE $39.08 To Order
Photo Part No Description Price (each) Stock
673011567 SCREW $11.60 To Order
Photo Part No Description Price (each) Stock
673011568 SCREW $6.62 To Order
Photo Part No Description Price (each) Stock
670182513 ADAPTER $1,433.89 To Order
670299492 ADAPTER $1,433.89 To Order
Photo Part No Description Price (each) Stock
670182512 ENGINE FLYWHEEL $2,093.94 To Order
Photo Part No Description Price (each) Stock
670182510 SCREW $48.58 To Order
Photo Part No Description Price (each) Stock
670181908 BRACKET $46.68 To Order
Photo Part No Description Price (each) Stock
670181910 LEVER $59.57 To Order
Photo Part No Description Price (each) Stock
670182068 SCREW $2.56 To Order
Photo Part No Description Price (each) Stock
675001208 NUT $1.46 To Order
Photo Part No Description Price (each) Stock
675001206 SCREW $1.06 To Order
Photo Part No Description Price (each) Stock
675001428 WASHER $0.97 To Order
Photo Part No Description Price (each) Stock
670181913 NUT $16.94 To Order
Photo Part No Description Price (each) Stock
675000127 NUT M12 $2.35 IN STOCK
Photo Part No Description Price (each) Stock
675001431 SCREW $13.29 To Order
Photo Part No Description Price (each) Stock
673013152 GEARBOX OIL SUMP $515.38 To Order
673013152 GEARBOX OIL SUMP $515.38 To Order
673015848 GEARBOX OIL SUMP $515.38 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670213358 MASS DAMPER $273.13 To Order
Photo Part No Description Price (each) Stock
675001211 SCREW $7.11 To Order
Photo Part No Description Price (each) Stock
670181914 WASHER $23.79 To Order
Photo Part No Description Price (each) Stock
673014040 TRANSMISSION OIL DELIVERY CAP WITH O-RING $14.82 To Order
Photo Part No Description Price (each) Stock
673015685 GEARBOX LH FLANGE KIT $446.53 To Order
673015686 GEARBOX LH FLANGE KIT $606.94 To Order
Photo Part No Description Price (each) Stock
673015683 GEARBOX RH FLANGE KIT $356.58 To Order
673015684 GEARBOX RH FLANGE KIT $383.68 To Order
Photo Part No Description Price (each) Stock
675001205 SCREW $0.94 To Order
Photo Part No Description Price (each) Stock
670181911 LOCK CYLINDER $19.51 To Order
Photo Part No Description Price (each) Stock
673017006 DIFFERENTIAL COVER O-RING KIT $133.70 To Order
Photo Part No Description Price (each) Stock
673016909 CABLE CONNECTOR $32.08 To Order
Photo Part No Description Price (each) Stock
673016905 GASKET $6.62 To Order
Photo Part No Description Price (each) Stock
673016903 MECHATRONIC ASSEMBLY $1,731.40 To Order
673016904 MECHATRONIC ASSEMBLY $3,189.43 To Order
Photo Part No Description Price (each) Stock
673016908 SCREW $0.99 To Order
Photo Part No Description Price (each) Stock
673016907 SCREW $0.69 To Order
Photo Part No Description Price (each) Stock
673016906 SCREW $0.64 To Order
Photo Part No Description Price (each) Stock
673017012 RH SEAL RING $1.11 To Order
Photo Part No Description Price (each) Stock
673017011 RING $1.47 To Order
673017013 RING $1.47 To Order
Photo Part No Description Price (each) Stock
673017014 LH SEAL RING $1.11 To Order
View All
GEARBOX HOUSINGS of Maserati Maserati MC20 Automatic 3.0 BT V6 2WD 630HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670175118
AUTOMATIC GEARBOX ASSEMBLY
Bespoke Assembly Number 0 - 7002605; Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL Not available with: REAR ELECTRONIC DIFFERENTIAL; 		$27,344.14 1
1 670307882
AUTOMATIC GEARBOX ASSEMBLY
Bespoke Assembly Number 0 - 7000455; Available with: REAR ELECTRONIC DIFFERENTIAL Not available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL; 		$24,055.52 1
1 670307882
AUTOMATIC GEARBOX ASSEMBLY
Bespoke Assembly Number 7000605 - 7002318; Available with: REAR ELECTRONIC DIFFERENTIAL Not available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL; 		$24,055.52 1
1 670307882
AUTOMATIC GEARBOX ASSEMBLY
Bespoke Assembly Number 0 - 7003256; Available with: REAR ELECTRONIC DIFFERENTIAL Not available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL; 		$24,055.52 1
1 670307882
AUTOMATIC GEARBOX ASSEMBLY
FOR CARS WITH ASSEMBLY < 7000456 UPDATE THE GEAR SOFTWARE AT THE LATEST VERSION AVAIBLE - FOR CARS WITH ASSEMBLY < 7003257 ORDER ALSO THE UNDERFLOOR GUARD PN 670302469; Available with: REAR ELECTRONIC DIFFERENTIAL Not available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL; 		$24,055.52 1
1 670307883
AUTOMATIC GEARBOX ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7002606 - 7003304; Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL Not available with: REAR ELECTRONIC DIFFERENTIAL; 		$23,673.68 1
1 670307883
AUTOMATIC GEARBOX ASSEMBLY
FOR VEHICLE WITH ASSEMBLY < 7003305 ORDER ALSO THE UNDERFLOOR GUARD PN 670302469; Bespoke Assembly Number 7002606 - 99999999; Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL Not available with: REAR ELECTRONIC DIFFERENTIAL; 		$23,673.68 1
2 670181842
SHAFT 		$884.53 1
3 675001210
NUT 		$1.56 12
4 670160120
BRACKET 		$30.96 1
5 670175151
NUT 		$1.56 2
6 670175146
WASHER 		$2.71 2
7 670212968
AUTOMATIC GEARBOX WIRING HARNESS 		$240.78 1
8 670301968
REAR AXLE SHAFT 		$208.56 2
9 670295832
SCREW 		$4.99 12
10 670002408
PLATE 		$3.69 6
11 675000138
NUT
IN STOCK 		$9.44 2
12 670214553
CONTROL UNIT GEARBOX 		$3,395.61 1
13 675001384
SCREW 		$1.47 8
14 670161898
CONTROL UNIT BRACKET 		$45.33 1
15 673011251
COVER FILTER
Bespoke Gear Number 0 - 3330001; 		$204.85 1
15 673015849
COVER FILTER
Bespoke Gear Number 3330002 - 99999999; 		$264.45 1
16 673011243
OIL LEVEL PLUG 		$34.12 1
17 673011244
O.R. GASKET 		$11.89 1
18 673011245
PLUG
IN STOCK 		$29.73 1
19 673011246
O.R. GASKET
IN STOCK 		$9.19 1
20 673011571
PIN 		$31.93 2
21 673014161
GASKET
IF STOCK = 0, ORDER THE GASKET 673011569 AND FOR THE FIRST REPLACEMENT ALSO ORDER THE OIL PAN 673013152; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Gear Number 0 - 1349078; Available with: REAR ELECTRONIC DIFFERENTIAL Not available with: MECHANICAL LIMITED-SLIP D 		- 1 Enquire
21 673014161
GASKET
IF STOCK = 0, ORDER THE GASKET 673011569 AND FOR THE FIRST REPLACEMENT ALSO ORDER THE OIL PAN 673013152; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Gear Number 0 - 1350071; Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL Not available with: REAR ELECTRONIC D 		- 1 Enquire
21 673011569
GASKET
VALID WITH PN 670154772, PN 670175118, PN 670222423, PN 670299315, PN 670299316; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 7003256; Available with: REAR ELECTRONIC DIFFERENTIAL Not available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL; 		$126.81 1
21 673011569
GASKET
VALID WITH PN 670154772, PN 670175118, PN 670222423, PN 670299315, PN 670299316; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 7003304; Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL Not available with: REAR ELECTRONIC DIFFERENTIAL; 		$126.81 1
21 673015850
GASKET
ORDER 673015850 GASKET INSTEAD OF PN 673011569 IF THE VEHICLE HAS REPLACED THE ORIGINAL TRANSMISSION WITH PN 670307882; Bespoke Assembly Number 0 - 7003256; Available with: REAR ELECTRONIC DIFFERENTIAL Not available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL; 		$121.38 1
21 673015850
GASKET
ORDER 673015850 GASKET INSTEAD OF PN 673011569 IF THE VEHICLE HAS REPLACED THE ORIGINAL TRANSMISSION WITH PN 670307883; Bespoke Assembly Number 0 - 7003304; Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL Not available with: REAR ELECTRONIC DIFFERENTIAL; 		$121.38 1
21 673015850
GASKET
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7003257 - 99999999; Available with: REAR ELECTRONIC DIFFERENTIAL Not available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL; 		$121.38 1
21 673015850
GASKET
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7003305 - 99999999; Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL Not available with: REAR ELECTRONIC DIFFERENTIAL; 		$121.38 1
22 673011570
SCREW 		$13.46 13
23 673011242
FILTER KIT
IN STOCK 		$201.12 1
24 673011566
FILTER 		$200.74 1
25 670181161
GROUND CABLE 		$39.08 1
26 673011567
SCREW 		$11.60 2
27 673011568
SCREW 		$6.62 2
28 670182513
ADAPTER
Bespoke Assembly Number 0 - 7002242; 		$1,433.89 1
28 670299492
ADAPTER
Bespoke Assembly Number 7002243 - 99999999; 		$1,433.89 1
29 670182512
ENGINE FLYWHEEL 		$2,093.94 1
30 670182510
SCREW 		$48.58 8
32 670181908
BRACKET 		$46.68 1
33 670181910
LEVER 		$59.57 1
34 670182068
SCREW 		$2.56 1
35 675001208
NUT 		$1.46 1
36 675001206
SCREW 		$1.06 1
37 675001428
WASHER 		$0.97 1
38 670181913
NUT 		$16.94 1
39 675000127
NUT M12
IN STOCK 		$2.35 2
40 675001431
SCREW 		$13.29 2
41 673013152
GEARBOX OIL SUMP
VALID FOR GEARBOX PN 670154772, PN 670175118, PN 670222423, PN 670299315, PN 670299316 - FOR CARS WITH TRANSMISSION SERIAL <1350072 WITH THE FIRST REPLACEMENT OF THE OIL PAN PN 673013152 ORDER ALSO THE GASKET PN 673011569; Bespoke Assembly Number 0 - 7003304; Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL Not available with: REAR ELECTRONIC DIFFERENTIAL; 		$515.38 1
41 673013152
GEARBOX OIL SUMP
VALID FOR GEARBOX PN 670154772, PN 670175118, PN 670222423, PN 670299315, PN 670299316 - FOR CARS WITH TRANSMISSION SERIAL 1349079 WITH THE FIRST REPLACEMENT OF THE OIL PAN PN 673013152 ORDER ALSO THE GASKET PN 673011569; Bespoke Assembly Number 0 - 7003256; Available with: REAR ELECTRONIC DIFFERENTIAL Not available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL; 		$515.38 1
41 673015848
GEARBOX OIL SUMP
ORDER THE OIL PAN 673015848 INSTEAD OF THE PN 673013152 IF THE VEHICLE HAS REPLACED THE ORIGINAL TRANSMISSION WITH PN 670307882 - PER LE VETTURE CON SERIALE CAMBIO < 1349079 CON LA PRIMA SOSTITUZIONE DELLA COPPA OLIO PN 673013152 ORDINARE ANCHE LA GUARNIZIONE PN 673011569; Bespoke Assembly Number 0 - 7003256; Available with: REAR ELECTRONIC DIFFERENTIAL Not available with: MECHANICAL LIMITED-SLIP 		$515.38 1
41 673015848
GEARBOX OIL SUMP
ORDER THE OIL PAN 673015848 INSTEAD OF THE PN 673013152 IF THE VEHICLE HAS REPLACED THE ORIGINAL TRANSMISSION WITH PN 670307883 - PER LE VETTURE CON SERIALE CAMBIO < 1350072 CON LA PRIMA SOSTITUZIONE DELLA COPPA OLIO PN 673013152 ORDINARE ANCHE LA GUARNIZIONE PN 673011569; Bespoke Assembly Number 0 - 7003304; Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL Not available with: REAR ELECTRONIC 		$515.38 1
41 673015848
GEARBOX OIL SUMP
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7003257 - 99999999; Available with: REAR ELECTRONIC DIFFERENTIAL Not available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL; 		$515.38 1
41 673015848
GEARBOX OIL SUMP
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7003305 - 99999999; Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL Not available with: REAR ELECTRONIC DIFFERENTIAL; 		$515.38 1
42 670213358
MASS DAMPER 		$273.13 2
43 675001211
SCREW 		$7.11 2
44 670181914
WASHER 		$23.79 1
45 673014040
TRANSMISSION OIL DELIVERY CAP WITH O-RING 		$14.82 1
47 673015685
GEARBOX LH FLANGE KIT
Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL ; 		$446.53 1
47 673015686
GEARBOX LH FLANGE KIT
Available with: REAR ELECTRONIC DIFFERENTIAL ; 		$606.94 1
48 673015683
GEARBOX RH FLANGE KIT
Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL ; 		$356.58 1
48 673015684
GEARBOX RH FLANGE KIT
Available with: REAR ELECTRONIC DIFFERENTIAL ; 		$383.68 1
49 675001205
SCREW 		$0.94 1
50 670181911
LOCK CYLINDER 		$19.51 1
51 673017006
DIFFERENTIAL COVER O-RING KIT 		$133.70 1
52 673016909
CABLE CONNECTOR
Bespoke Assembly Number 7001514 - 99999999; 		$32.08 1
53 673016905
GASKET
Bespoke Assembly Number 7001514 - 99999999; 		$6.62 1
54 673016903
MECHATRONIC ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7001514 - 99999999; Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL ; 		$1,731.40 1
54 673016904
MECHATRONIC ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 7001514 - 99999999; Available with: REAR ELECTRONIC DIFFERENTIAL ; 		$3,189.43 1
55 673016908
SCREW
Bespoke Assembly Number 7001514 - 99999999; 		$0.99 2
56 673016907
SCREW
Bespoke Assembly Number 7001514 - 99999999; 		$0.69 7
57 673016906
SCREW
Bespoke Assembly Number 7001514 - 99999999; 		$0.64 12
58 673017012
RH SEAL RING 		$1.11 1
59 673017011
RING
Available with: MECHANICAL LIMITED-SLIP DIFFERENTIAL ; 		$1.47 2
59 673017013
RING
Available with: REAR ELECTRONIC DIFFERENTIAL ; 		$1.47 2
60 673017014
LH SEAL RING 		$1.11 1

Haven't found what you're looking for?

More: Maserati Gearboxes Tuning Parts Need help? Call us

View Cart / Checkout
