Front Doors: Mechanisms

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

Illustration Number: 09312

Find Your Part

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - FRONT DOORS: MECHANISMS (09312)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670071211 EXTERNAL DOOR HANDLE Enquire To Order
670118929 EXTERNAL DOOR HANDLE Enquire To Order
670270095 EXTERNAL DOOR HANDLE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670109519 LH EXTERNAL DOOR HANDLE RETAINING BRACKET $118.91 To Order
670109524 RH EXTERNAL DOOR HANDLE RETAINING BRACKET $85.36 To Order
670109525 LH EXTERNAL DOOR HANDLE RETAINING BRACKET $87.81 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670005442 EXTERNAL DOOR HANDLE GASKET $1.82 To Order
Photo Part No Description Price (each) Stock
670154292 SCREW $4.00 To Order
Photo Part No Description Price (each) Stock
670216496 LH FRONT DOOR LOCK $430.34 To Order
670216496 LH FRONT DOOR LOCK $430.34 To Order

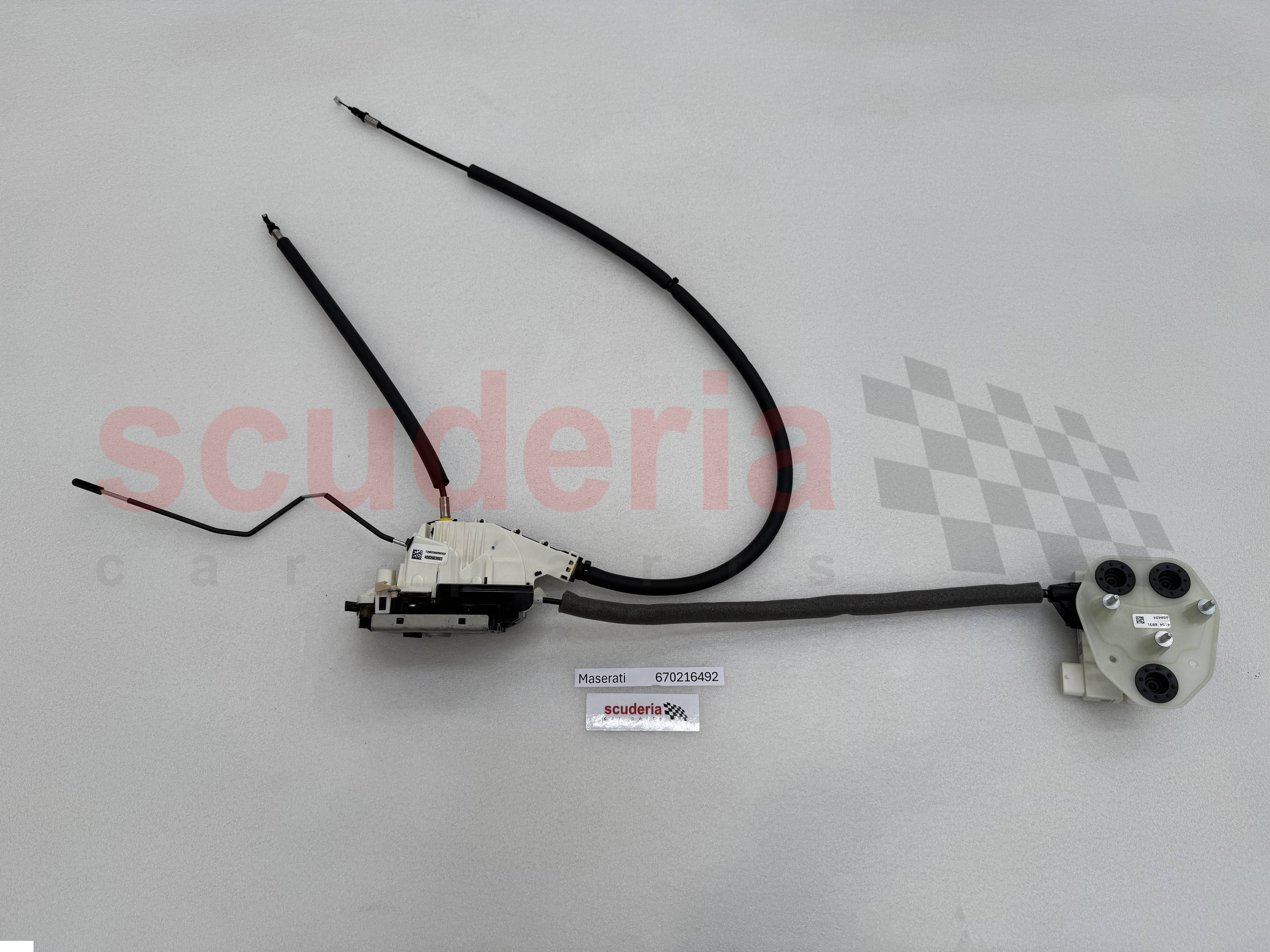

670216492 RH FRONT DOOR LOCK $464.57 IN STOCK
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
670035101 TIE ROD $22.09 IN STOCK
Photo Part No Description Price (each) Stock
670032745 FRONT LH WINDOW RUN CHANNEL $22.62 To Order
670032749 FRONT RH WINDOW RUN CHANNEL $22.62 To Order
Photo Part No Description Price (each) Stock
670176157 LH FRONT POWER WINDOW $483.02 IN STOCK
670176157 LH FRONT POWER WINDOW $483.02 IN STOCK
670176156 RH FRONT POWER WINDOW $482.02 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
675000573 DOORS LOCK STRIKER $18.90 To Order
Photo Part No Description Price (each) Stock
675000301 DOOR LOCK REVOLVING PLUG TRIM $34.92 IN STOCK
670119818 DOOR LOCK REVOLVING PLUG TRIM Enquire To Order
675000302 DOOR LOCK REVOLVING PLUG TRIM $24.90 IN STOCK
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
675000160 LH UPPER HINGE $28.73 To Order
675000162 RH UPPER HINGE $46.83 IN STOCK
Photo Part No Description Price (each) Stock
675000159 LH LOWER HINGE $27.02 To Order
675000161 RH LOWER HINGE $27.95 IN STOCK
Photo Part No Description Price (each) Stock
670009758 SPECIAL SCREW $2.23 To Order
Photo Part No Description Price (each) Stock
670012585 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
670006984 SCREW $2.46 To Order
Photo Part No Description Price (each) Stock
675000005 SCREWM 8x15 $2.42 IN STOCK
Photo Part No Description Price (each) Stock
675000485 SCREWM10 $1.65 To Order
Photo Part No Description Price (each) Stock
670034687 GASKET $3.24 To Order
Photo Part No Description Price (each) Stock
675000485 SCREWM10 $1.65 To Order
Photo Part No Description Price (each) Stock
670006983 NUT $1.83 To Order
View All

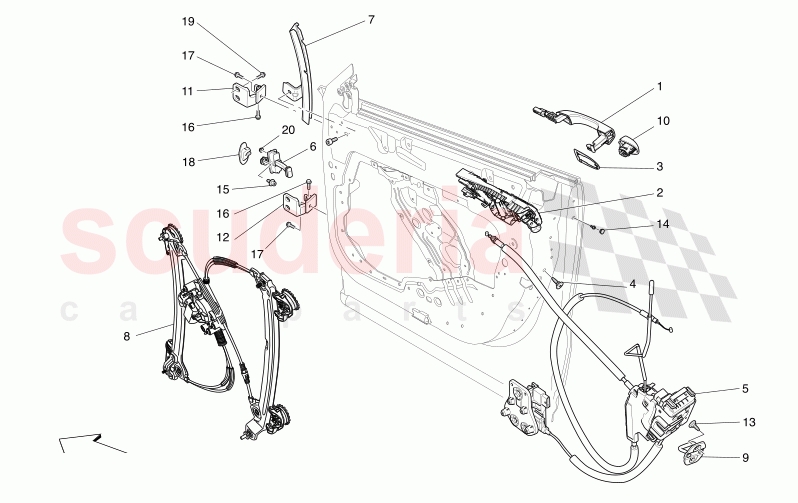

FRONT DOORS: MECHANISMS of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670071211
EXTERNAL DOOR HANDLE
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6053787 - 6106797; Not available with: EXTERIOR BLACK KIT - MC SPECIFIC, DOOR HANDLES IN BODY COLOR; 		- 2 Enquire
1 670118929
EXTERNAL DOOR HANDLE
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6053787 - 6106797; Available with: DOOR HANDLES IN BODY COLOR ; 		- 2 Enquire
1 670270095
EXTERNAL DOOR HANDLE
passenger's side; Available with: EXTENDED KEY-LESS ENTRY Not available with: EXTERIOR BLACK KIT - MC SPECIFIC, DOOR HANDLES IN BODY COLOR; 		- 1 Enquire
1 670270095
EXTERNAL DOOR HANDLE
driver's side; Not available with: EXTERIOR BLACK KIT - MC SPECIFIC, DOOR HANDLES IN BODY COLOR; 		- 1 Enquire
2 670109519
LH EXTERNAL DOOR HANDLE RETAINING BRACKET
Bespoke Assembly Number 6071253 - 99999999; AU UK JRH IN SA; 		$118.91 1
2 670109524
RH EXTERNAL DOOR HANDLE RETAINING BRACKET
Bespoke Assembly Number 6069380 - 99999999; AU UK JRH IN SA; 		$85.36 1
2 670109525
LH EXTERNAL DOOR HANDLE RETAINING BRACKET
Bespoke Assembly Number 6069380 - 99999999; EU CN US CD JP ME KO; 		$87.81 1
2 670109516
RH EXTERNAL DOOR HANDLE RETAINING BRACKET
Bespoke Assembly Number 6071254 - 99999999; EU CN US CD JP ME KO; 		$100.70 1
3 670005442
EXTERNAL DOOR HANDLE GASKET 		$1.82 2
4 670154292
SCREW 		$4.00 6
5 670216496
LH FRONT DOOR LOCK
Bespoke Assembly Number 6082295 - 6105655; Available with: SOFT DOOR CLOSE - CENTRALIZED AUTOMATED ELECTRICAL DOORS LOCKING ; AU UK JRH IN SA; 		$430.34 1
5 670216496
LH FRONT DOOR LOCK
Bespoke Assembly Number 6035538 - 99999999; Available with: SOFT DOOR CLOSE - CENTRALIZED AUTOMATED ELECTRICAL DOORS LOCKING ; AU UK JRH IN SA; 		$430.34 1
5 670216492
RH FRONT DOOR LOCK
Bespoke Assembly Number 6082295 - 6104139; Available with: SOFT DOOR CLOSE - CENTRALIZED AUTOMATED ELECTRICAL DOORS LOCKING ; AU UK JRH IN SA;
IN STOCK 		$464.57 1
5 670216492
RH FRONT DOOR LOCK
Bespoke Assembly Number 6035538 - 99999999; Available with: SOFT DOOR CLOSE - CENTRALIZED AUTOMATED ELECTRICAL DOORS LOCKING ; AU UK JRH IN SA;
IN STOCK 		$464.57 1
5 670216495
LH FRONT DOOR LOCK
Bespoke Assembly Number 6035538 - 6106279; Available with: SOFT DOOR CLOSE - CENTRALIZED AUTOMATED ELECTRICAL DOORS LOCKING ; EU CN US CD JP ME KO; 		$513.48 1
5 670216495
LH FRONT DOOR LOCK
Bespoke Assembly Number 6035538 - 99999999; Available with: SOFT DOOR CLOSE - CENTRALIZED AUTOMATED ELECTRICAL DOORS LOCKING ; EU CN US CD JP ME KO; 		$513.48 1
5 670216491
RH FRONT DOOR LOCK
Bespoke Assembly Number 6082277 - 6104790; Available with: SOFT DOOR CLOSE - CENTRALIZED AUTOMATED ELECTRICAL DOORS LOCKING ; EU CN US CD JP ME KO; 		$590.18 1
5 670216491
RH FRONT DOOR LOCK
Bespoke Assembly Number 6082277 - 99999999; Available with: SOFT DOOR CLOSE - CENTRALIZED AUTOMATED ELECTRICAL DOORS LOCKING ; EU CN US CD JP ME KO; 		$590.18 1
6 670035101
TIE ROD
IN STOCK 		$22.09 1
7 670032745
FRONT LH WINDOW RUN CHANNEL 		$22.62 1
7 670032749
FRONT RH WINDOW RUN CHANNEL 		$22.62 1
8 670176157
LH FRONT POWER WINDOW
Bespoke Assembly Number 6044652 - 6102427;
IN STOCK 		$483.02 1
8 670176157
LH FRONT POWER WINDOW
Bespoke Assembly Number 6044652 - 99999999;
IN STOCK 		$483.02 1
8 670176156
RH FRONT POWER WINDOW
Bespoke Assembly Number 6044652 - 6102427;
IN STOCK 		$482.02 1
8 670176156
RH FRONT POWER WINDOW
Bespoke Assembly Number 6102428 - 99999999;
IN STOCK 		$482.02 1
9 675000573
DOORS LOCK STRIKER 		$18.90 2
10 675000301
DOOR LOCK REVOLVING PLUG TRIM
LH side; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6106797; Not available with: EXTERIOR BLACK KIT - MC SPECIFIC, BLACK DOOR HANDLES, DOOR HANDLES IN BODY COLOR; AU UK JRH IN SA;
IN STOCK 		$34.92 1
10 670119818
DOOR LOCK REVOLVING PLUG TRIM
LH side; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6053787 - 6106797; Available with: DOOR HANDLES IN BODY COLOR Not available with: BLACK DOOR HANDLES; AU UK JRH IN SA; 		- 1 Enquire
10 675000302
DOOR LOCK REVOLVING PLUG TRIM
RH side; Not available with: EXTERIOR BLACK KIT - MC SPECIFIC, BLACK DOOR HANDLES, DOOR HANDLES IN BODY COLOR; AU UK JRH IN SA;
IN STOCK 		$24.90 1
10 670119817
DOOR LOCK REVOLVING PLUG TRIM
RH side; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6053787 - 99999999; Available with: DOOR HANDLES IN BODY COLOR Not available with: BLACK DOOR HANDLES; AU UK JRH IN SA; 		- 1 Enquire
10 675000302
DOOR LOCK REVOLVING PLUG TRIM
LH side; Not available with: EXTERIOR BLACK KIT - MC SPECIFIC, BLACK DOOR HANDLES, DOOR HANDLES IN BODY COLOR; EU CN US CD JP ME KO;
IN STOCK 		$24.90 1
10 670119817
DOOR LOCK REVOLVING PLUG TRIM
LH side; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6053787 - 99999999; Available with: DOOR HANDLES IN BODY COLOR Not available with: BLACK DOOR HANDLES; EU CN US CD JP ME KO; 		- 1 Enquire
10 675000301
DOOR LOCK REVOLVING PLUG TRIM
RH side; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6106797; Not available with: EXTERIOR BLACK KIT - MC SPECIFIC, BLACK DOOR HANDLES, DOOR HANDLES IN BODY COLOR; EU CN US CD JP ME KO;
IN STOCK 		$34.92 1
10 670119818
DOOR LOCK REVOLVING PLUG TRIM
RH side; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6053787 - 6106797; Available with: DOOR HANDLES IN BODY COLOR Not available with: BLACK DOOR HANDLES; EU CN US CD JP ME KO; 		- 1 Enquire
11 675000160
LH UPPER HINGE 		$28.73 1
11 675000162
RH UPPER HINGE
IN STOCK 		$46.83 1
12 675000159
LH LOWER HINGE 		$27.02 1
12 675000161
RH LOWER HINGE
IN STOCK 		$27.95 1
13 670009758
SPECIAL SCREW 		$2.23 2
14 670012585
PLUG 		- 1 Enquire
15 670006984
SCREW 		$2.46 2
16 675000005
SCREWM 8x15
IN STOCK 		$2.42 4
17 675000485
SCREWM10 		$1.65 4
18 670034687
GASKET 		$3.24 2
19 675000485
SCREWM10 		$1.65 4
20 670006983
NUT 		$1.83 4
