External Vehicle Devices

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP

Illustration Number: 08001

Find Your Part

Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP - EXTERNAL VEHICLE DEVICES (08001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670105984 WINDSCREEN WIPER MOTOR $417.26 IN STOCK
Photo Part No Description Price (each) Stock
670030635 SPECIAL SCREW $2.18 To Order
Photo Part No Description Price (each) Stock
670005392 SCREW $4.04 To Order
Photo Part No Description Price (each) Stock
670032335 DRIVER SIDE WINDSCREEN WIPER ARM $175.48 To Order
Photo Part No Description Price (each) Stock
670032336 PASSENGER SIDE WINDSCREEN WIPER ARM $156.09 To Order
Photo Part No Description Price (each) Stock
675000175 NUTM10 $1.05 IN STOCK
Photo Part No Description Price (each) Stock
670010292 JET FOR WINDOW WASHING Enquire To Order
670025836 JET FOR WINDOW WASHING Enquire To Order
Photo Part No Description Price (each) Stock
670007188 CAP $1.20 IN STOCK
Photo Part No Description Price (each) Stock
675000176 WASHERD.10.5-21X1 $1.18 IN STOCK
Photo Part No Description Price (each) Stock
670034637 WINDSCREEN WASHER TANK $246.22 IN STOCK
Photo Part No Description Price (each) Stock
670032344 PIPE $43.48 To Order
Photo Part No Description Price (each) Stock
670032342 WINDSCREEN WASHER PIPE $126.90 To Order
670037605 WINDSCREEN WASHER PIPE $109.07 To Order
Photo Part No Description Price (each) Stock
670030893 WASHER $3.05 To Order
Photo Part No Description Price (each) Stock
670037594 HIGH TONE HORN $51.61 To Order
670037596 HIGH TONE HORN $50.95 IN STOCK
670222390 HIGH TONE HORN $53.13 To Order
Photo Part No Description Price (each) Stock
670222389 DEEP TONE HORN $53.13 To Order
670037595 DEEP TONE HORN $57.60 To Order
670222389 DEEP TONE HORN $53.13 To Order
Photo Part No Description Price (each) Stock
675000433 SCREW M6 X 20 $1.74 IN STOCK
Photo Part No Description Price (each) Stock
670005392 SCREW $4.04 To Order
Photo Part No Description Price (each) Stock
670037445 CAP $10.86 IN STOCK
Photo Part No Description Price (each) Stock
675000582 NUT $1.32 To Order
Photo Part No Description Price (each) Stock
670035110 GASKET $11.71 To Order
Photo Part No Description Price (each) Stock
675000620 REAR LIFTGATE WINDSCREEN WIPER MOTOR $104.94 To Order
Photo Part No Description Price (each) Stock
675000593 RIVET $1.57 To Order
Photo Part No Description Price (each) Stock
675000581 JET FOR WINDOW WASHING $4.84 To Order
Photo Part No Description Price (each) Stock
670033525 HOSE $41.27 To Order
Photo Part No Description Price (each) Stock
675000651 CLIP $5.96 To Order
Photo Part No Description Price (each) Stock
673016771 RAIN SENSOR GELPAD $60.10 To Order
Photo Part No Description Price (each) Stock
673013657 LHD WINDSCREEN WIPER SET $59.22 IN STOCK
Photo Part No Description Price (each) Stock
670310562 RAIN SENSOR $111.67 To Order
Photo Part No Description Price (each) Stock
670107927 REAR LIFTGATE WINDOW WIPER ARM $48.82 IN STOCK
Photo Part No Description Price (each) Stock
675002230 RETAINING CLIP $3.39 To Order
View All

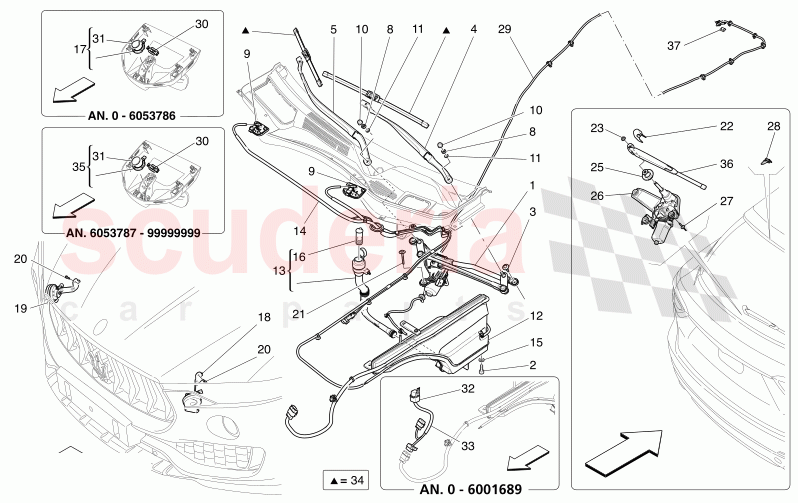

EXTERNAL VEHICLE DEVICES of Maserati Maserati Levante Modena Automatic 3.0 BT V6 4WD 350HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670105984
WINDSCREEN WIPER MOTOR
Bespoke Assembly Number 6065289 - 99999999; EU CN US CD JP ME KO;
IN STOCK 		$417.26 1
2 670030635
SPECIAL SCREW 		$2.18 3
3 670005392
SCREW 		$4.04 1
4 670032335
DRIVER SIDE WINDSCREEN WIPER ARM
EU CN US CD JP ME KO; 		$175.48 1
5 670032336
PASSENGER SIDE WINDSCREEN WIPER ARM
EU CN US CD JP ME KO; 		$156.09 1
8 675000175
NUTM10
IN STOCK 		$1.05 2
9 670010292
JET FOR WINDOW WASHING
Available with: HEATED WINDSHIELD WASHER NOZZLES ; 		- 2 Enquire
9 670025836
JET FOR WINDOW WASHING
Not available with: HEATED WINDSHIELD WASHER NOZZLES; 		- 2 Enquire
10 670007188
CAP
IN STOCK 		$1.20 2
11 675000176
WASHERD.10.5-21X1
IN STOCK 		$1.18 2
12 670034637
WINDSCREEN WASHER TANK
Available with: FULL LED HEADLAMPS Not available with: BI-XENON HEADLAMPS FULL AFS, BI-XENON HEADLAMPS (NO AFS);
IN STOCK 		$246.22 1
13 670032344
PIPE 		$43.48 1
14 670032342
WINDSCREEN WASHER PIPE
Available with: HEATED WINDSHIELD WASHER NOZZLES ; 		$126.90 1
14 670037605
WINDSCREEN WASHER PIPE
Not available with: HEATED WINDSHIELD WASHER NOZZLES; 		$109.07 1
15 670030893
WASHER 		$3.05 3
18 670037594
HIGH TONE HORN
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6106505; Available with: ELECTRONIC VEHICLE HORN ; 		$51.61 1
18 670037596
HIGH TONE HORN
Not available with: ELECTRONIC VEHICLE HORN;
IN STOCK 		$50.95 1
18 670222390
HIGH TONE HORN
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6106506 - 99999999; Available with: ELECTRONIC VEHICLE HORN ; 		$53.13 1
19 670222389
DEEP TONE HORN
Bespoke Assembly Number 0 - 6106505; Available with: ELECTRONIC VEHICLE HORN ; 		$53.13 1
19 670037595
DEEP TONE HORN
Not available with: ELECTRONIC VEHICLE HORN; 		$57.60 1
19 670222389
DEEP TONE HORN
Available with: ELECTRONIC VEHICLE HORN ; 		$53.13 1
20 675000433
SCREW M6 X 20
IN STOCK 		$1.74 2
21 670005392
SCREW 		$4.04 1
22 670037445
CAP
IN STOCK 		$10.86 1
23 675000582
NUT 		$1.32 1
25 670035110
GASKET 		$11.71 1
26 675000620
REAR LIFTGATE WINDSCREEN WIPER MOTOR 		$104.94 1
27 675000593
RIVET 		$1.57 3
28 675000581
JET FOR WINDOW WASHING 		$4.84 1
29 670033525
HOSE 		$41.27 1
30 675000651
CLIP 		$5.96 1
31 673016771
RAIN SENSOR GELPAD
Bespoke Assembly Number 6053787 - 99999999; 		$60.10 1
34 673013657
LHD WINDSCREEN WIPER SET
EU CN US CD JP ME KO;
IN STOCK 		$59.22 1
35 670310562
RAIN SENSOR
Bespoke Assembly Number 6053787 - 99999999; 		$111.67 1
36 670107927
REAR LIFTGATE WINDOW WIPER ARM
IN STOCK 		$48.82 1
37 675002230
RETAINING CLIP 		$3.39 3
