A/c Unit: Tunnel Devices

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 08431

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - A/C UNIT: TUNNEL DEVICES (08431)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
673002681 REAR AIR CONDITIONING CASE $1,405.15 To Order
Photo Part No Description Price (each) Stock
670035896 AIR ACTUATOR $139.53 To Order
Photo Part No Description Price (each) Stock
670035898 LH ACTUATOR $139.53 To Order
Photo Part No Description Price (each) Stock
670003710 ELECTROFAN $974.17 To Order
Photo Part No Description Price (each) Stock
670035055 CONDENSATION DRAIN PIPE $28.90 To Order
Photo Part No Description Price (each) Stock
675000093 NUTM6 $1.51 IN STOCK
Photo Part No Description Price (each) Stock
673007341 RUBBER HOSE ASSEMBLY $284.96 To Order
Photo Part No Description Price (each) Stock
670033076 PIPE BETWEEN EVAPOURATOR AND UNION $248.60 To Order
670033077 PIPE BETWEEN EVAPOURATOR AND UNION $314.45 To Order
Photo Part No Description Price (each) Stock
675000328 NUT $1.43 To Order
Photo Part No Description Price (each) Stock
673000042 RADIATOR AND PIPES $421.54 To Order
Photo Part No Description Price (each) Stock
670005088 PLUG $28.64 To Order
Photo Part No Description Price (each) Stock
670035897 RH ACTUATOR $139.53 To Order
Photo Part No Description Price (each) Stock
673000049 SCREW $30.50 To Order
Photo Part No Description Price (each) Stock
673000050 GASKET $32.38 To Order
Photo Part No Description Price (each) Stock
673000044 FASTENING RUBBER $64.78 To Order
Photo Part No Description Price (each) Stock
673002682 REAR COOLER WIRING HARNESS $360.67 To Order
Photo Part No Description Price (each) Stock
62771900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
673000046 AIR SENSOR $137.40 To Order
Photo Part No Description Price (each) Stock
673000045 EVAPORATOR SENSOR $46.71 To Order
Photo Part No Description Price (each) Stock
675000436 SCREW $2.51 To Order
Photo Part No Description Price (each) Stock
673007371 LEVER $49.01 To Order
Photo Part No Description Price (each) Stock
675000122 O-RING 1/2" A/C $8.25 IN STOCK
Photo Part No Description Price (each) Stock
675000123 3/4" SEAL $8.70 IN STOCK
Photo Part No Description Price (each) Stock
675000119 O-RING 68 x 187 $2.02 IN STOCK
Photo Part No Description Price (each) Stock
675000306 O-RING 13.6 X 2.43 $2.05 IN STOCK
Photo Part No Description Price (each) Stock
670104967 PAD $9.71 To Order
Photo Part No Description Price (each) Stock
670152733 PAD $31.51 To Order
Photo Part No Description Price (each) Stock
670109782 BRACKET $29.44 To Order
View All

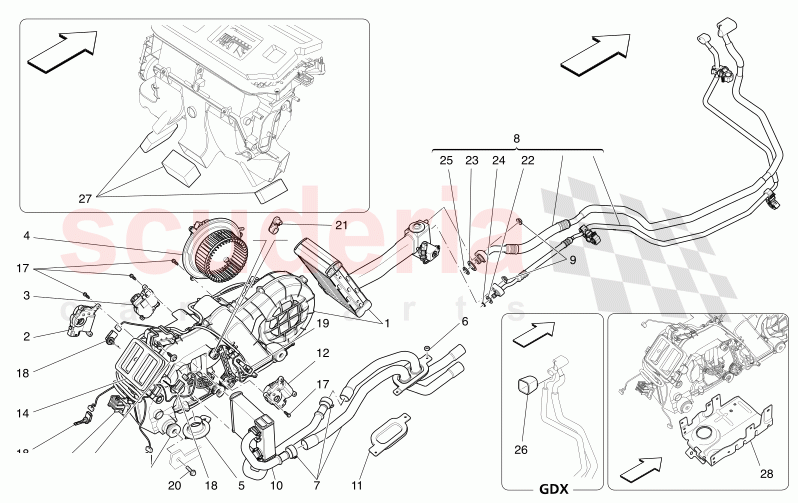

A/C UNIT: TUNNEL DEVICES of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 670033083
REAR AIR CONTIDIONING SYSTEM ASSEMBLY
Bespoke Assembly Number 0 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$1,942.65 1
1 673002681
REAR AIR CONDITIONING CASE
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$1,405.15 1
2 670035896
AIR ACTUATOR
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$139.53 1
3 670035898
LH ACTUATOR
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$139.53 1
4 670003710
ELECTROFAN
Bespoke Assembly Number 0 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$974.17 1
5 670035055
CONDENSATION DRAIN PIPE
Bespoke Assembly Number 0 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$28.90 1
6 675000093
NUTM6
IN STOCK 		$1.51 2
7 673007341
RUBBER HOSE ASSEMBLY 		$284.96 1
8 670033076
PIPE BETWEEN EVAPOURATOR AND UNION
Bespoke Assembly Number 0 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; EU CN US CD JP ME KO; 		$248.60 1
8 670033077
PIPE BETWEEN EVAPOURATOR AND UNION
Bespoke Assembly Number 0 - 6112506; Available with: FOUR-ZONE AUTOMATIC CLIMA ; AU UK JRH IN SA; 		$314.45 1
9 675000328
NUT
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$1.43 2
10 673000042
RADIATOR AND PIPES
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$421.54 1
11 670005088
PLUG
Not available with: FOUR-ZONE AUTOMATIC CLIMA; 		$28.64 1
12 670035897
RH ACTUATOR
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$139.53 1
13 673000049
SCREW 		$30.50 1
14 673000050
GASKET 		$32.38 1
15 673000044
FASTENING RUBBER 		$64.78 4
16 673002682
REAR COOLER WIRING HARNESS 		$360.67 1
17 62771900
SCREW 		- 33 Enquire
18 673000046
AIR SENSOR 		$137.40 4
19 673000045
EVAPORATOR SENSOR 		$46.71 1
20 675000436
SCREW
Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$2.51 4
21 673007371
LEVER 		$49.01 2
22 675000122
O-RING 1/2" A/C
IN STOCK 		$8.25 1
23 675000123
3/4" SEAL
IN STOCK 		$8.70 1
24 675000119
O-RING 68 x 187
IN STOCK 		$2.02 1
25 675000306
O-RING 13.6 X 2.43
IN STOCK 		$2.05 1
26 670104967
PAD
Available with: FOUR-ZONE AUTOMATIC CLIMA ; AU UK JRH IN SA; 		$9.71 1
27 670152733
PAD
Bespoke Assembly Number 6086265 - 99999999; Available with: FOUR-ZONE AUTOMATIC CLIMA ; 		$31.51 1
28 670109782
BRACKET 		$29.44 1
