Standard Provided

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 07305

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - STANDARD PROVIDED (07305)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670213870 REAR CRASH-BOX CROSS MEMBER ASS. $2,152.01 To Order
Photo Part No Description Price (each) Stock
670101866 TRAILER TOW MODULE $364.16 To Order
Photo Part No Description Price (each) Stock
673007272 TOW HOOK PLUG $30.76 To Order
Photo Part No Description Price (each) Stock
670036474 TOWING HOOK $768.42 To Order
Photo Part No Description Price (each) Stock
670036475 SCREW $17.86 To Order
Photo Part No Description Price (each) Stock
670102684 REAR CRASH-BOX CROSS MEMBER ASS. $1,221.15 To Order
670215703 REAR CRASH-BOX CROSS MEMBER ASS. $1,080.43 To Order
Photo Part No Description Price (each) Stock
673007273 SPLIT PIN $27.01 To Order
Photo Part No Description Price (each) Stock
670102912 TOWING HOOK $653.55 To Order
Photo Part No Description Price (each) Stock
673007274 PIN $70.83 To Order
Photo Part No Description Price (each) Stock
670100897 TOWING HOOK BAG $41.94 To Order
670100898 TOWING HOOK BAG $40.75 To Order
Photo Part No Description Price (each) Stock
675000375 SCREWM6X20 $0.79 IN STOCK
Photo Part No Description Price (each) Stock
675000443 NUT $0.92 To Order
Photo Part No Description Price (each) Stock
673014538 EMEA APPROVAL LABEL $64.62 To Order
View All

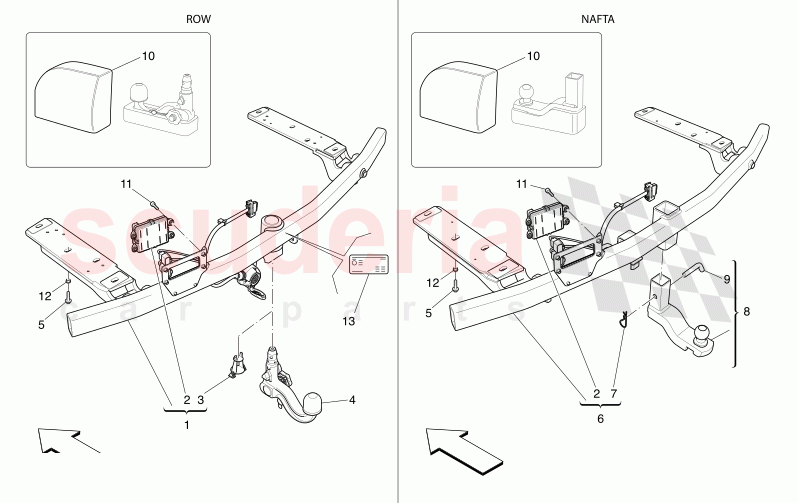

STANDARD PROVIDED of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670213870
REAR CRASH-BOX CROSS MEMBER ASS.
Bespoke Assembly Number 6087717 - 6112506; Available with: TRAILER TOW GROUP ROW Not available with: TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION; 		$2,152.01 1
2 670101866
TRAILER TOW MODULE
Bespoke Assembly Number 0 - 6112506; 		$364.16 1
3 673007272
TOW HOOK PLUG
Available with: TRAILER TOW GROUP ROW Not available with: TRAILER TOW US SPECIFICATION; 		$30.76 1
4 670036474
TOWING HOOK
Bespoke Assembly Number 6053787 - 99999999; Available with: TRAILER TOW GROUP ROW Not available with: TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION; EU UK JP ME JRH IN SA KO; 		$768.42 1
5 670036475
SCREW
Bespoke Assembly Number 0 - 6112506; 		$17.86 8
6 670102684
REAR CRASH-BOX CROSS MEMBER ASS.
Bespoke Assembly Number 0 - 6109305; Available with: TRAILER TOW US SPECIFICATION Not available with: TRAILER TOW GROUP ROW, TRAILER TOW AUSTRALIAN SPECIFICATION; 		$1,221.15 1
6 670215703
REAR CRASH-BOX CROSS MEMBER ASS.
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 6109306 - 6112506; Available with: TRAILER TOW US SPECIFICATION Not available with: TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW GROUP ROW; 		$1,080.43 1
7 673007273
SPLIT PIN
Available with: TRAILER TOW US SPECIFICATION Not available with: TRAILER TOW GROUP ROW; 		$27.01 1
8 670102912
TOWING HOOK
Bespoke Assembly Number 0 - 6112506; Available with: TRAILER TOW US SPECIFICATION Not available with: TRAILER TOW GROUP ROW, TRAILER TOW AUSTRALIAN SPECIFICATION; 		$653.55 1
9 673007274
PIN
Available with: TRAILER TOW US SPECIFICATION Not available with: TRAILER TOW GROUP ROW; 		$70.83 1
10 670100897
TOWING HOOK BAG
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6112506; Available with: 18'' COLLAPSIBLE SPARE WHEEL, TRAILER TOW GROUP ROW ; 		$41.94 1
10 670100898
TOWING HOOK BAG
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 6112506; Available with: 18'' COLLAPSIBLE SPARE WHEEL, TRAILER TOW US SPECIFICATION ; 		$40.75 1
11 675000375
SCREWM6X20
IN STOCK 		$0.79 4
12 675000443
NUT 		$0.92 6
13 673014538
EMEA APPROVAL LABEL
Available with: TRAILER TOW GROUP ROW Not available with: TRAILER TOW AUSTRALIAN SPECIFICATION, TRAILER TOW US SPECIFICATION; 		$64.62 1
