Braking Control Systems

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 04901

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - BRAKING CONTROL SYSTEMS (04901)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
673010399 ABS/ASR HYDRAULIC UNIT $666.07 To Order
Photo Part No Description Price (each) Stock
670104779 ABS/ASR HYDRAULIC GROUP FIXING BRACKET $38.48 To Order
Photo Part No Description Price (each) Stock

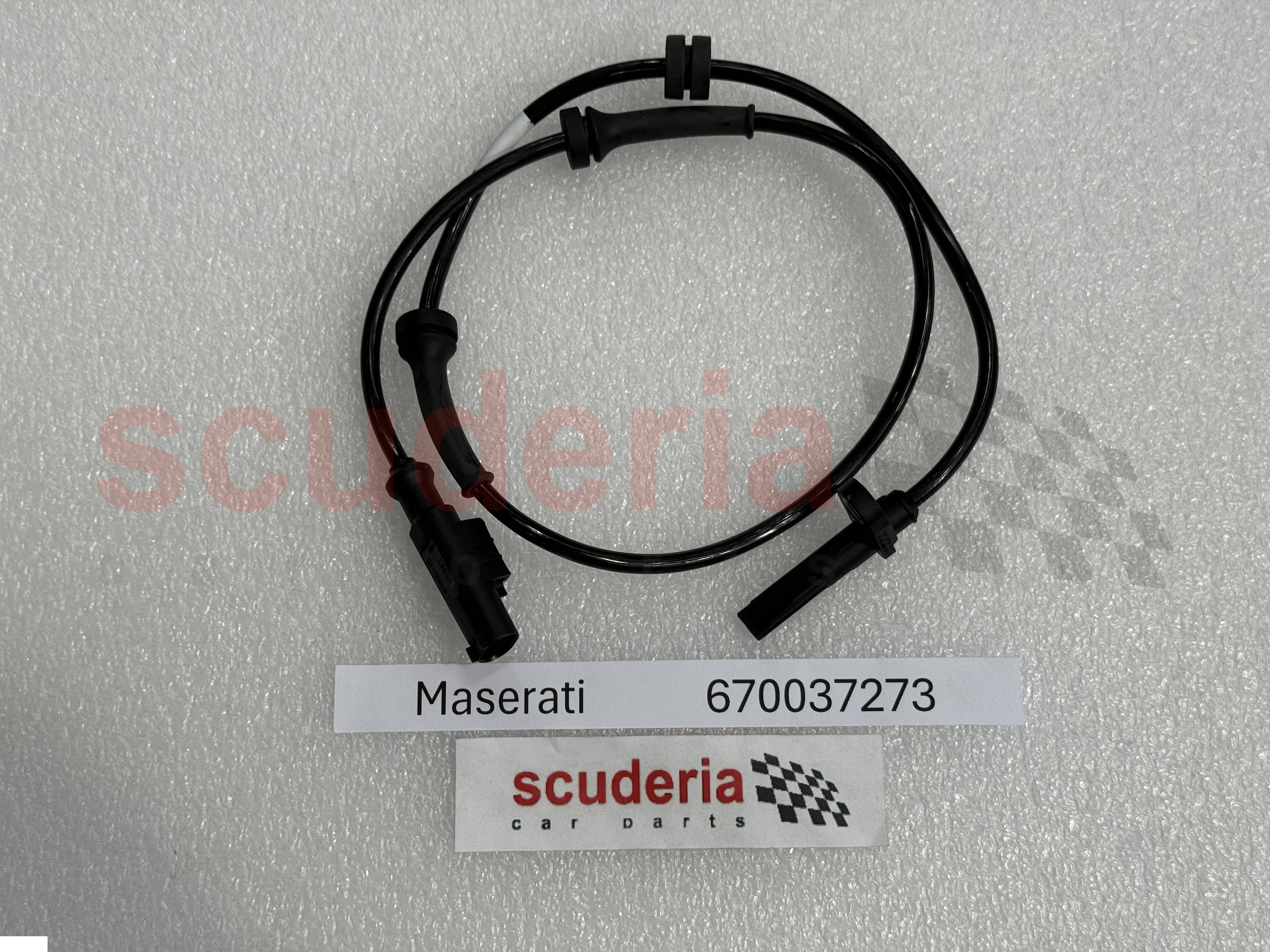

670037273 FRONT ABS SENSOR $49.81 To Order
Photo Part No Description Price (each) Stock
670034381 WHEEL BEARING ASSEMBLY $297.93 To Order
Photo Part No Description Price (each) Stock
670035429 SCREW $5.24 To Order
Photo Part No Description Price (each) Stock
670032032 SCREW $3.47 IN STOCK
Photo Part No Description Price (each) Stock
670103668 WHEEL BEARING ASSEMBLY $270.67 To Order
Photo Part No Description Price (each) Stock
670037513 REAR ABS SENSOR $56.02 IN STOCK
Photo Part No Description Price (each) Stock
675000662 SCREW $1.85 To Order
Photo Part No Description Price (each) Stock
675000662 SCREW $1.85 To Order
Photo Part No Description Price (each) Stock
670100063 LH BRACKET $5.97 To Order
670100064 RH BRACKET $5.97 To Order
Photo Part No Description Price (each) Stock
675000662 SCREW $1.85 To Order
Photo Part No Description Price (each) Stock
675000355 CLIP $1.16 To Order
Photo Part No Description Price (each) Stock
014059314 NUTM8 Enquire To Order
Photo Part No Description Price (each) Stock
675000430 SCREW $2.55 To Order
Photo Part No Description Price (each) Stock
675000387 SCREW $1.95 To Order
Photo Part No Description Price (each) Stock
670036889 LH ABS CABLE BRACKET $29.82 To Order
670036875 RH ABS CABLE BRACKET $29.82 To Order
Photo Part No Description Price (each) Stock
670100247 LH BRACKET $3.81 To Order
670100246 RH BRACKET $3.81 To Order
Photo Part No Description Price (each) Stock
675000662 SCREW $1.85 To Order
Photo Part No Description Price (each) Stock
670155018 SHIELD $4.12 To Order
View All

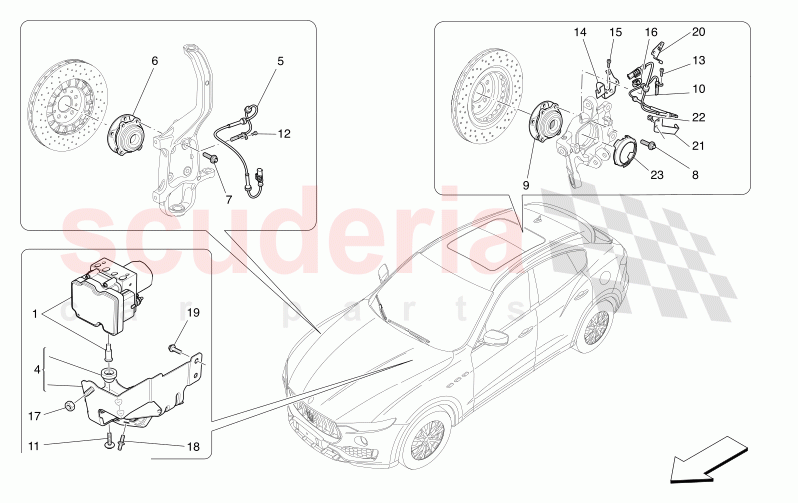

BRAKING CONTROL SYSTEMS of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 673010399
ABS/ASR HYDRAULIC UNIT
Bespoke Assembly Number 6079467 - 99999999; Available with: MEDIUM DUAL CAST BRAKE SYSTEM - FRONT 380 [mm], REAR 330 [mm] Not available with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm], STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm]; 		$666.07 1
4 670104779
ABS/ASR HYDRAULIC GROUP FIXING BRACKET 		$38.48 1
5 670037273
FRONT ABS SENSOR 		$49.81 2
6 670034381
WHEEL BEARING ASSEMBLY 		$297.93 2
7 670035429
SCREW 		$5.24 8
8 670032032
SCREW
IN STOCK 		$3.47 4
9 670103668
WHEEL BEARING ASSEMBLY 		$270.67 2
10 670037513
REAR ABS SENSOR
Bespoke Assembly Number 6053787 - 99999999; Available with: MEDIUM DUAL CAST BRAKE SYSTEM - FRONT 380 [mm], REAR 330 [mm] Not available with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm], STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm];
IN STOCK 		$56.02 2
12 675000662
SCREW 		$1.85 2
13 675000662
SCREW 		$1.85 2
14 670100063
LH BRACKET
Bespoke Assembly Number 6053787 - 99999999; Available with: MEDIUM DUAL CAST BRAKE SYSTEM - FRONT 380 [mm], REAR 330 [mm] Not available with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm], STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm]; 		$5.97 1
14 670100064
RH BRACKET
Bespoke Assembly Number 6053787 - 99999999; Available with: MEDIUM DUAL CAST BRAKE SYSTEM - FRONT 380 [mm], REAR 330 [mm] Not available with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm], STANDARD BRAKE SYSTEM - FRONT 345 [mm], REAR 330 [mm]; 		$5.97 1
15 675000662
SCREW 		$1.85 2
16 675000355
CLIP 		$1.16 2
17 014059314
NUTM8 		- 1 Enquire
18 675000430
SCREW 		$2.55 1
19 675000387
SCREW 		$1.95 2
20 670036889
LH ABS CABLE BRACKET 		$29.82 1
20 670036875
RH ABS CABLE BRACKET 		$29.82 1
21 670100247
LH BRACKET 		$3.81 1
21 670100246
RH BRACKET 		$3.81 1
22 675000662
SCREW 		$1.85 4
23 670155018
SHIELD
Bespoke Assembly Number 6080541 - 99999999; Not available with: PERFORMANCE BRAKE SYSTEM - FRONT 380 [mm], REAR 345 [mm]; 		$4.12 2
