Front Wheels Transmission

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP

Illustration Number: 03222

Find Your Part

Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP - FRONT WHEELS TRANSMISSION (03222)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670104057 FRONT DIFFERENTIAL $1,960.38 To Order
Photo Part No Description Price (each) Stock
14307834 SCREW $3.01 To Order
13029034 SCREW $5.11 To Order
14306534 SCREW $2.51 To Order
Photo Part No Description Price (each) Stock
768641 BRACKET $190.22 To Order
Photo Part No Description Price (each) Stock
670107694 FRONT DRIVE SHAFT $760.48 To Order
Photo Part No Description Price (each) Stock
670003772 PLATE $3.81 IN STOCK
Photo Part No Description Price (each) Stock
675000583 SCREW $2.51 To Order
Photo Part No Description Price (each) Stock
670153213 HEAT SHIELD $58.21 To Order
670153215 HEAT SHIELD $64.11 To Order
Photo Part No Description Price (each) Stock
675000102 SCREWM6X14 $2.71 To Order
Photo Part No Description Price (each) Stock
675000384 SCREWM10X25 $5.24 IN STOCK
Photo Part No Description Price (each) Stock
670154135 ALL WHEEL DRIVE TRANSFER CASE $2,453.15 To Order
670307165 ALL WHEEL DRIVE TRANSFER CASE $2,453.15 To Order
Photo Part No Description Price (each) Stock
670004015 HEAT SHIELD $28.65 To Order
Photo Part No Description Price (each) Stock
675000102 SCREWM6X14 $2.71 To Order
Photo Part No Description Price (each) Stock

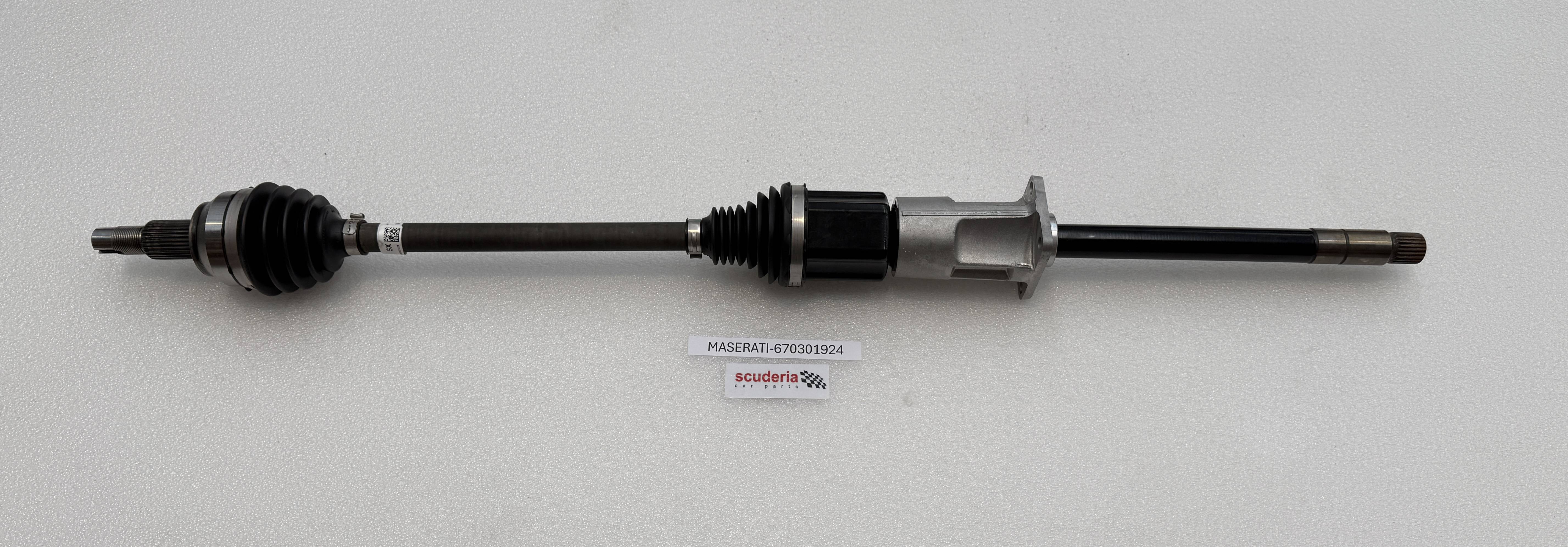

670301924 LH AXLE SHAFT ASSEMBLY $1,002.58 To Order
670301924 LH AXLE SHAFT ASSEMBLY $1,002.58 To Order
Photo Part No Description Price (each) Stock
670301923 RH AXLE SHAFT ASSEMBLY $735.94 To Order
670301923 RH AXLE SHAFT ASSEMBLY $735.94 To Order
Photo Part No Description Price (each) Stock
675000386 SCREWM10X60 $3.82 To Order
Photo Part No Description Price (each) Stock
675000385 SCREWM10X40 $3.75 To Order
Photo Part No Description Price (each) Stock
670160290 TRANSFER CASE CONTROL UNIT $610.65 To Order
Photo Part No Description Price (each) Stock
673009049 SCREW $5.83 To Order
Photo Part No Description Price (each) Stock

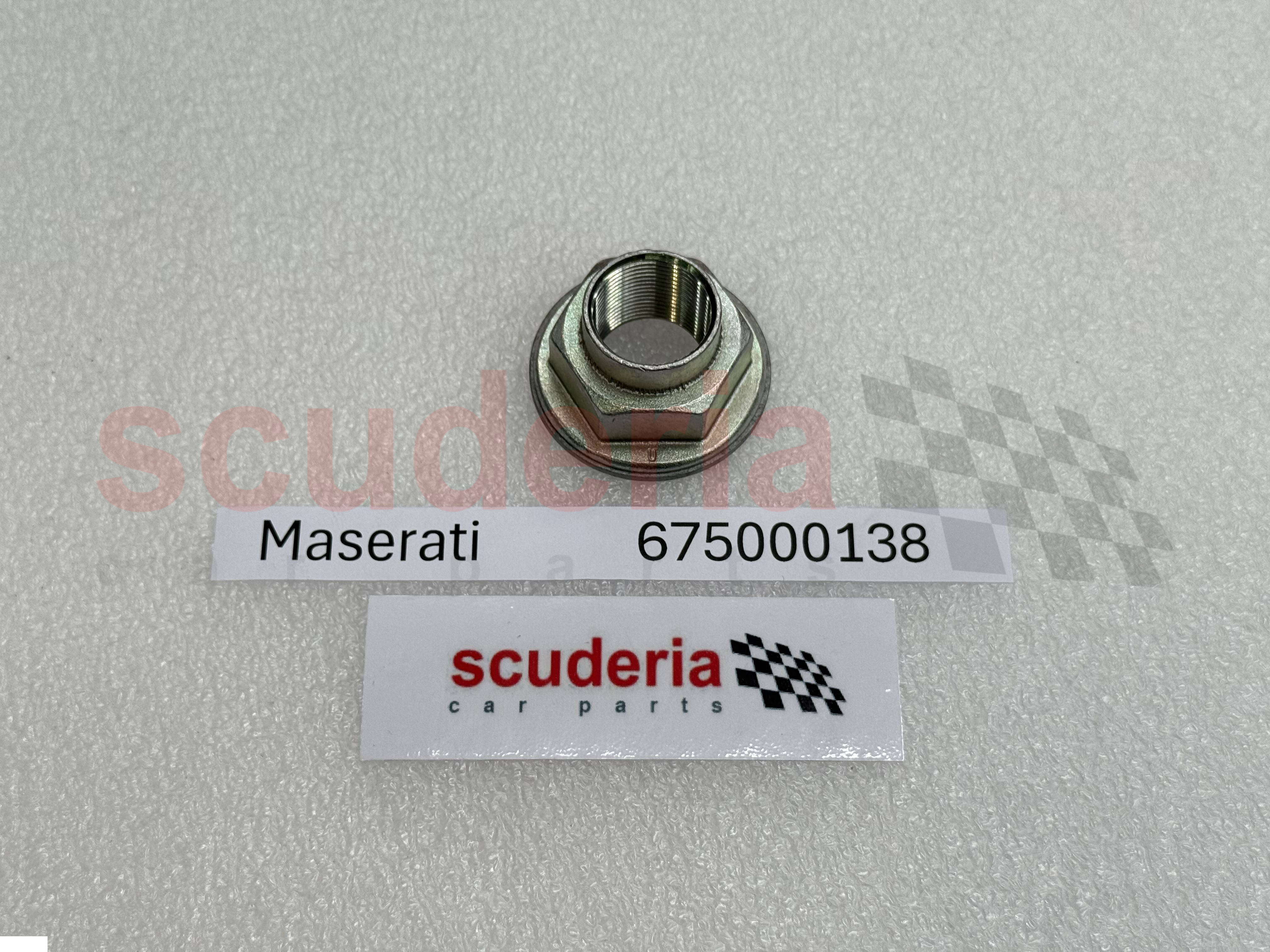

675000138 NUT $9.42 IN STOCK
Photo Part No Description Price (each) Stock
670105684 VENT PIPE $24.86 To Order
Photo Part No Description Price (each) Stock
46328688 SCREW $3.12 To Order
Photo Part No Description Price (each) Stock
673008007 O.R. GASKET $5.30 To Order
Photo Part No Description Price (each) Stock
673008008 LOCK RING $5.73 To Order
Photo Part No Description Price (each) Stock
675000719 GASKET $2.92 To Order
Photo Part No Description Price (each) Stock
673016820 TRANSFER CASE FLANGE KIT $201.03 To Order
Photo Part No Description Price (each) Stock
673016821 TRANSFER CASE FIXING KIT $73.36 To Order
View All

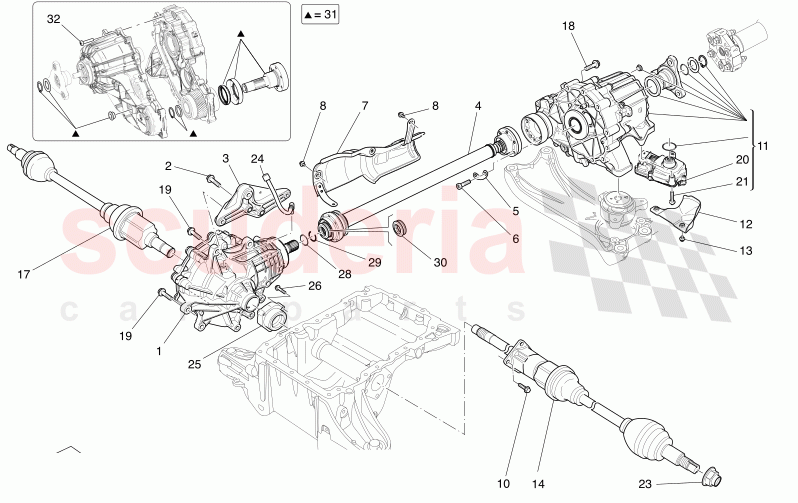

FRONT WHEELS TRANSMISSION of Maserati Maserati Levante Modena S Automatic 3.0 BT V6 4WD 430HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670104057
FRONT DIFFERENTIAL
Bespoke Assembly Number 6053787 - 99999999; 		$1,960.38 1
2 14307834
SCREW
Bespoke Assembly Number 6035538 - 99999999; 		$3.01 3
2 13029034
SCREW
Bespoke Assembly Number 6035538 - 99999999; 		$5.11 1
2 14306534
SCREW
Bespoke Assembly Number 6035538 - 99999999; 		$2.51 1
3 768641
BRACKET
Bespoke Assembly Number 6035538 - 99999999; 		$190.22 1
4 670107694
FRONT DRIVE SHAFT
Bespoke Assembly Number 6053315 - 99999999; 		$760.48 1
5 670003772
PLATE
IN STOCK 		$3.81 3
6 675000583
SCREW 		$2.51 6
7 670153213
HEAT SHIELD
EU CN US CD JP ME KO; 		$58.21 1
7 670153215
HEAT SHIELD
AU UK JRH IN SA; 		$64.11 1
8 675000102
SCREWM6X14 		$2.71 4
10 675000384
SCREWM10X25
IN STOCK 		$5.24 4
11 670154135
ALL WHEEL DRIVE TRANSFER CASE
Bespoke Assembly Number 6079467 - 6113695; 		$2,453.15 1
11 670307165
ALL WHEEL DRIVE TRANSFER CASE
Bespoke Assembly Number 6113696 - 99999999; 		$2,453.15 1
12 670004015
HEAT SHIELD 		$28.65 1
13 675000102
SCREWM6X14 		$2.71 2
14 670301924
LH AXLE SHAFT ASSEMBLY
Bespoke Assembly Number 0 - 6112445; 		$1,002.58 1
14 670301924
LH AXLE SHAFT ASSEMBLY
Bespoke Assembly Number 6112446 - 99999999; 		$1,002.58 1
17 670301923
RH AXLE SHAFT ASSEMBLY
Bespoke Assembly Number 0 - 6112445; 		$735.94 1
17 670301923
RH AXLE SHAFT ASSEMBLY 		$735.94 1
18 675000386
SCREWM10X60 		$3.82 8
19 675000385
SCREWM10X40 		$3.75 8
20 670160290
TRANSFER CASE CONTROL UNIT
Bespoke Assembly Number 6079467 - 99999999; 		$610.65 1
21 673009049
SCREW 		$5.83 2
23 675000138
NUT
IN STOCK 		$9.42 2
24 670105684
VENT PIPE
Bespoke Assembly Number 6035538 - 99999999; 		$24.86 1
26 46328688
SCREW 		$3.12 3
28 673008007
O.R. GASKET 		$5.30 1
29 673008008
LOCK RING 		$5.73 1
30 675000719
GASKET 		$2.92 1
31 673016820
TRANSFER CASE FLANGE KIT
VALID FOR VEHICLES WITH TRANSFER CASE PN 670152726,670154135 OR 670307165; 		$201.03 1
32 673016821
TRANSFER CASE FIXING KIT 		$73.36 1
