Name: A/C UNIT: ENGINE COMPARTMENT DEVICES
Rating: 5.0 (1 reviews)

View All

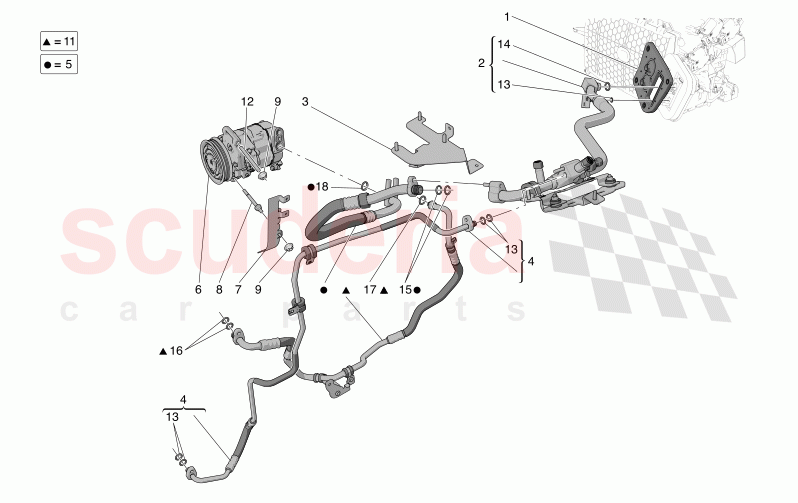

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	675001734	GASKET	$12.34	To Order

Photo	Part No	Description	Price (each)	Stock
	670176386	PIPE BETWEEN EVAPOURATOR AND UNION	$190.36	To Order

Photo	Part No	Description	Price (each)	Stock
	670213656	BRACKET	$13.45	To Order

Photo	Part No	Description	Price (each)	Stock
	670178585	PIPE BETWEEN CONDENSER AND JUNCTION	$106.09	To Order

Photo	Part No	Description	Price (each)	Stock
	670156436	PIPE A.C. - COMPRESSOR	$111.06	To Order

Photo	Part No	Description	Price (each)	Stock
	675001009	A.C. COMPRESSOR	$252.83	To Order

Photo	Part No	Description	Price (each)	Stock
	675002406	TIMING BELT GUARD	$17.18	To Order

Photo	Part No	Description	Price (each)	Stock
	675001019	SCREW	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	675001090	NUT	$1.08	To Order

Photo	Part No	Description	Price (each)	Stock
	670156437	PIPE A.C. - COMPRESSOR	$121.96	To Order

Photo	Part No	Description	Price (each)	Stock
	675000902	STUD	$2.94	To Order

Photo	Part No	Description	Price (each)	Stock
	675000119	O-RING 68 x 187	$2.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000306	O-RING 13.6 X 2.43	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000306	O-RING 13.6 X 2.43	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675001987	O.R. GASKET	$8.16	To Order

Photo	Part No	Description	Price (each)	Stock
	675000122	O-RING 1/2" A/C	$8.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675000123	3/4" SEAL	$8.77	IN STOCK

View All

A/c Unit: Engine Compartment Devices

Maserati Grecale Modena Automatic 2.0 T4 4WD 250HP MHEV

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	675001734	GASKET	675001734 GASKET	$12.34	1
2	670176386	PIPE BETWEEN EVAPOURATOR AND UNION	670176386 PIPE BETWEEN EVAPOURATOR AND UNION EU US JP KO N0;	$190.36	1
3	670213656	BRACKET	670213656 BRACKET	$13.45	1
4	670178585	PIPE BETWEEN CONDENSER AND JUNCTION	670178585 PIPE BETWEEN CONDENSER AND JUNCTION EU CN US JP ME KO N0;	$106.09	1
5	670156436	PIPE A.C. - COMPRESSOR	670156436 PIPE A.C. - COMPRESSOR	$111.06	1
6	675001009	A.C. COMPRESSOR	675001009 A.C. COMPRESSOR	$252.83	1
7	675002406	TIMING BELT GUARD	675002406 TIMING BELT GUARD	$17.18	1
8	675001019	SCREW	675001019 SCREW	$2.53	1
9	675001090	NUT	675001090 NUT	$1.08	4
11	670156437	PIPE A.C. - COMPRESSOR	670156437 PIPE A.C. - COMPRESSOR	$121.96	1
12	675000902	STUD	675000902 STUD	$2.94	2
13	675000119	O-RING 68 x 187 IN STOCK	675000119 O-RING 68 x 187 IN STOCK	$2.04	5
14	675000306	O-RING 13.6 X 2.43 IN STOCK	675000306 O-RING 13.6 X 2.43 IN STOCK	$2.07	1
15	675000306	O-RING 13.6 X 2.43 IN STOCK	675000306 O-RING 13.6 X 2.43 IN STOCK	$2.07	2
16	675001987	O.R. GASKET	675001987 O.R. GASKET	$8.16	2
17	675000122	O-RING 1/2" A/C IN STOCK	675000122 O-RING 1/2" A/C IN STOCK	$8.33	1
18	675000123	3/4" SEAL IN STOCK	675000123 3/4" SEAL IN STOCK	$8.77	1
