Name: REAR SUSPENSION
Rating: 4.7 (1 reviews)

REAR SUSPENSION of Maserati Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV

View All

Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV - REAR SUSPENSION (06201)

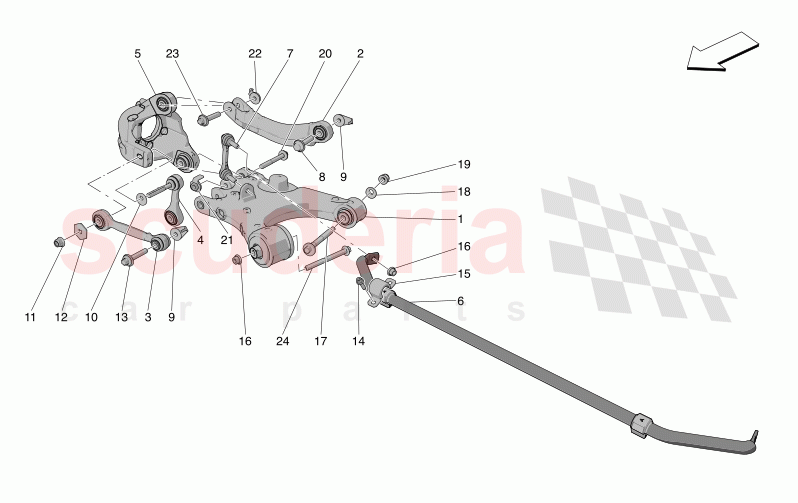

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670217325	LH REAR SWINGING ARM	$364.89	To Order
	675007359	swinging arm	$286.55	To Order
	675007360	swinging arm	$407.51	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	670161064	LH ROD REAR CAMBER	$116.00	To Order
	670161062	RH ROD REAR CAMBER	$120.97	To Order

Photo	Part No	Description	Price (each)	Stock
	675001564	REAR TOE-IN ADJUSTMENT ROD	$64.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675001560	BALL TIE ROD	$68.24	To Order

Photo	Part No	Description	Price (each)	Stock
	670156904	LH REAR HUB HOLDER ASSEMBLY	$438.25	To Order
	670157497	RH REAR HUB HOLDER	$438.25	To Order

Photo	Part No	Description	Price (each)	Stock
	670179257	REAR STABILIZER BAR	$176.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675001748	LINK STABILIZER BAR	$37.08	To Order

Photo	Part No	Description	Price (each)	Stock
	675001681	SCREW	$4.44	To Order

Photo	Part No	Description	Price (each)	Stock
	675001680	NUT	$6.90	To Order

Photo	Part No	Description	Price (each)	Stock
	675001789	WASHER	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	675001533	NUT	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	675001712	RING NUT	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	675001684	SCREW	$3.99	To Order

Photo	Part No	Description	Price (each)	Stock
	675001686	SCREW	$1.58	To Order

Photo	Part No	Description	Price (each)	Stock
	675001511	REAR STABILIZER BAR CLAMP	$12.22	To Order

Photo	Part No	Description	Price (each)	Stock
	675001189	NUT	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	675001716	SCREW	$10.40	To Order

Photo	Part No	Description	Price (each)	Stock
	675001836	WASHER	$4.45	To Order

Photo	Part No	Description	Price (each)	Stock
	675000585	NUT	$3.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675001531	SCREW	$5.63	To Order

Photo	Part No	Description	Price (each)	Stock
	675000706	NUT	$4.79	To Order

Photo	Part No	Description	Price (each)	Stock
	675001685	NUT	$6.90	To Order

Photo	Part No	Description	Price (each)	Stock
	675001684	SCREW	$3.99	To Order

Photo	Part No	Description	Price (each)	Stock
	675001829	SCREW	$5.54	To Order

View All

Diagram Tap to enlarge

Rear Suspension

Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV

Illustration Number: 06201

Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV - REAR SUSPENSION (06201)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670217325	LH REAR SWINGING ARM	670217325 LH REAR SWINGING ARM Available with: AIR SUSPENSION WITH SKYHOOK ;	$364.89	1
1	675007359	swinging arm	675007359 swinging arm Not available with: AIR SUSPENSION WITH SKYHOOK;	$286.55	1
1	675007360	swinging arm	675007360 swinging arm Not available with: AIR SUSPENSION WITH SKYHOOK;	$407.51	1
1	670217329	RH REAR SWINGING ARM	670217329 RH REAR SWINGING ARM Available with: AIR SUSPENSION WITH SKYHOOK ;	$364.89	1
2	670161064	LH ROD REAR CAMBER	670161064 LH ROD REAR CAMBER	$116.00	1
2	670161062	RH ROD REAR CAMBER	670161062 RH ROD REAR CAMBER	$120.97	1
3	675001564	REAR TOE-IN ADJUSTMENT ROD IN STOCK	675001564 REAR TOE-IN ADJUSTMENT ROD IN STOCK	$64.15	2
4	675001560	BALL TIE ROD	675001560 BALL TIE ROD	$68.24	2
5	670156904	LH REAR HUB HOLDER ASSEMBLY	670156904 LH REAR HUB HOLDER ASSEMBLY	$438.25	1
5	670157497	RH REAR HUB HOLDER	670157497 RH REAR HUB HOLDER	$438.25	1
6	670179257	REAR STABILIZER BAR IN STOCK	670179257 REAR STABILIZER BAR IN STOCK	$176.48	1
7	675001748	LINK STABILIZER BAR	675001748 LINK STABILIZER BAR	$37.08	2
8	675001681	SCREW	675001681 SCREW	$4.44	2
9	675001680	NUT	675001680 NUT	$6.90	4
10	675001789	WASHER	675001789 WASHER	$2.70	2
11	675001533	NUT	675001533 NUT	$2.39	2
12	675001712	RING NUT	675001712 RING NUT	$2.70	2
13	675001684	SCREW	675001684 SCREW	$3.99	2
14	675001686	SCREW	675001686 SCREW	$1.58	4
15	675001511	REAR STABILIZER BAR CLAMP	675001511 REAR STABILIZER BAR CLAMP	$12.22	2
16	675001189	NUT	675001189 NUT	$2.39	6
17	675001716	SCREW	675001716 SCREW	$10.40	2
18	675001836	WASHER	675001836 WASHER	$4.45	2
19	675000585	NUT IN STOCK	675000585 NUT IN STOCK	$3.19	2
20	675001531	SCREW	675001531 SCREW	$5.63	2
21	675000706	NUT	675000706 NUT	$4.79	2
22	675001685	NUT	675001685 NUT	$6.90	2
23	675001684	SCREW	675001684 SCREW	$3.99	2
24	675001829	SCREW	675001829 SCREW	$5.54	2

Rear Suspension

Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV

Illustration Number: 06201

Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV - REAR SUSPENSION (06201)
