Main Wiring

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Illustration Number: 08603

Find Your Part

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - MAIN WIRING (08603)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670053665 CABLE SERVICE ENGINE $193.30 To Order
Photo Part No Description Price (each) Stock
670050338 CLIP $13.05 To Order
Photo Part No Description Price (each) Stock
670050274 CLIP $11.91 To Order
Photo Part No Description Price (each) Stock
670051106 SCREW $2.39 To Order
Photo Part No Description Price (each) Stock
670051104 SCREW $2.30 To Order
Photo Part No Description Price (each) Stock
670052946 BRACKET $9.89 To Order
Photo Part No Description Price (each) Stock
670051612 BRACKET $11.24 To Order
Photo Part No Description Price (each) Stock
670054265 BRACKET $12.25 To Order
Photo Part No Description Price (each) Stock
670053250 BRACKET $11.24 To Order
Photo Part No Description Price (each) Stock
675002129 BRACKET $7.39 To Order
Photo Part No Description Price (each) Stock
675001112 RIVET $1.52 To Order
View All

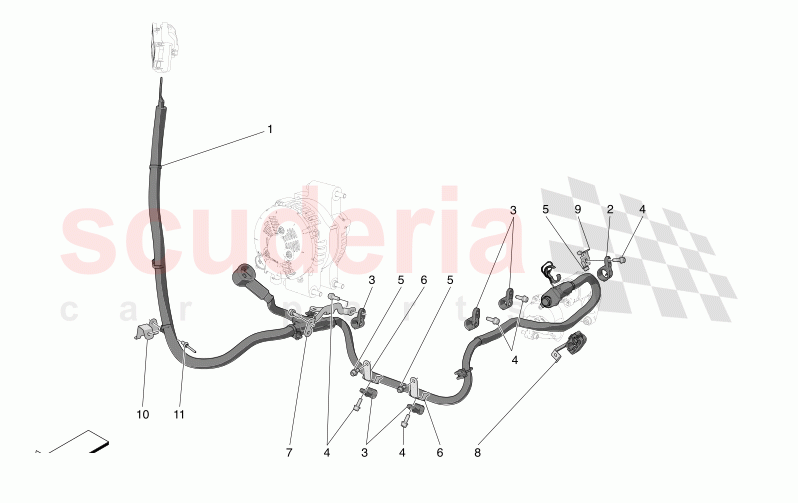

MAIN WIRING of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670053665
CABLE SERVICE ENGINE 		$193.30 1
2 670050338
CLIP 		$13.05 1
3 670050274
CLIP 		$11.91 5
4 670051106
SCREW 		$2.39 6
5 670051104
SCREW 		$2.30 3
6 670052946
BRACKET 		$9.89 2
7 670051612
BRACKET 		$11.24 1
8 670054265
BRACKET 		$12.25 1
9 670053250
BRACKET 		$11.24 1
10 675002129
BRACKET 		$7.39 1
11 675001112
RIVET 		$1.52 1
