Lubrication And Gearbox Oil Cooling

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP

Illustration Number: 03502

Find Your Part

Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP - LUBRICATION AND GEARBOX OIL COOLING (03502)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675001863 OIL HEAT EXCHANGER $544.98 To Order
Photo Part No Description Price (each) Stock
675001867 OIL EXCHANGER BRACKET $16.17 To Order
Photo Part No Description Price (each) Stock
675001870 GEARBOX OIL DELIVERY TUBE $70.56 To Order
Photo Part No Description Price (each) Stock
675001871 GEARBOX OIL RETURN TUBE $97.21 To Order
Photo Part No Description Price (each) Stock
675001864 TRANSMISSION OIL COOLING TUBE $42.05 To Order
Photo Part No Description Price (each) Stock
675002072 CONDENSER OIL PIPE $254.65 To Order
Photo Part No Description Price (each) Stock
670051104 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
675001055 SCREW $2.32 To Order
Photo Part No Description Price (each) Stock
675000662 SCREW $1.85 To Order
Photo Part No Description Price (each) Stock
675000397 SCREWTE M8 $9.52 To Order
Photo Part No Description Price (each) Stock
675001091 GEARBOX PIPES FIXING BRACKET $7.54 To Order
Photo Part No Description Price (each) Stock
675001869 BRACKET $18.98 To Order
Photo Part No Description Price (each) Stock
675001858 BRACKET $9.83 To Order
Photo Part No Description Price (each) Stock
675001132 SCREW $0.94 To Order
Photo Part No Description Price (each) Stock
675001855 NUT $5.38 To Order
Photo Part No Description Price (each) Stock
675000288 SPACER $2.31 To Order
Photo Part No Description Price (each) Stock
675000054 FLEXIBLE PAD $14.66 To Order
Photo Part No Description Price (each) Stock
670052354 OIL DELIVERY AND RETURN HOSE $189.27 To Order
Photo Part No Description Price (each) Stock
675000182 NUT $1.17 To Order
Photo Part No Description Price (each) Stock
670051311 BRACKET $12.10 To Order
Photo Part No Description Price (each) Stock
670052385 BRACKET $20.80 To Order
View All

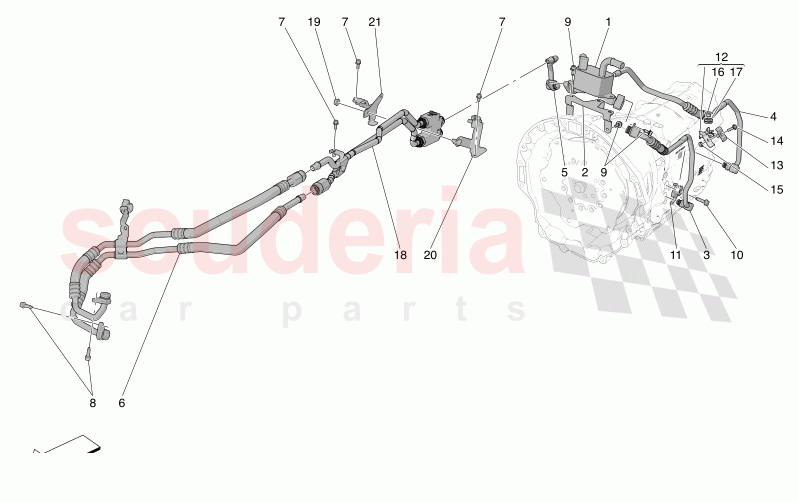

LUBRICATION AND GEARBOX OIL COOLING of Maserati Maserati Grecale Trofeo Automatic 3.0 BT V6 530HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675001863
OIL HEAT EXCHANGER 		$544.98 1
2 675001867
OIL EXCHANGER BRACKET 		$16.17 1
3 675001870
GEARBOX OIL DELIVERY TUBE 		$70.56 1
4 675001871
GEARBOX OIL RETURN TUBE 		$97.21 1
5 675001864
TRANSMISSION OIL COOLING TUBE 		$42.05 1
6 675002072
CONDENSER OIL PIPE 		$254.65 1
7 670051104
SCREW 		$2.31 3
8 675001055
SCREW 		$2.32 2
9 675000662
SCREW 		$1.85 8
10 675000397
SCREWTE M8 		$9.52 1
11 675001091
GEARBOX PIPES FIXING BRACKET 		$7.54 1
12 675001869
BRACKET 		$18.98 1
13 675001858
BRACKET 		$9.83 1
14 675001132
SCREW 		$0.94 1
15 675001855
NUT 		$5.38 1
16 675000288
SPACER 		$2.31 1
17 675000054
FLEXIBLE PAD 		$14.66 1
18 670052354
OIL DELIVERY AND RETURN HOSE 		$189.27 1
19 675000182
NUT 		$1.17 2
20 670051311
BRACKET 		$12.10 1
21 670052385
BRACKET 		$20.80 1
22 14457081
O-RING D.2.62
IN STOCK 		$2.24 1
23 670003311
O.R. GASKET 		$1.17 1
