Air Suspension System

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV

Illustration Number: 06241

Find Your Part

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV - AIR SUSPENSION SYSTEM (06241)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670305675 AIR PIPE $18.37 To Order
Photo Part No Description Price (each) Stock
670216817 AIR SUSPENSION SYSTEM TANK $363.89 To Order
Photo Part No Description Price (each) Stock
670217139 AIR SUSPENSION SYSTEM COMPRESSOR $1,428.28 To Order
Photo Part No Description Price (each) Stock
670177218 BRACKET $14.79 To Order
Photo Part No Description Price (each) Stock
670176773 HEAT SHIELD $18.61 To Order
Photo Part No Description Price (each) Stock
670176772 HEAT SHIELD $35.37 To Order
Photo Part No Description Price (each) Stock
675001245 SCREW $1.71 To Order
Photo Part No Description Price (each) Stock
675000686 RIVET $1.22 IN STOCK
Photo Part No Description Price (each) Stock
675001036 SCREW $1.47 To Order
Photo Part No Description Price (each) Stock
670177587 SCREW $3.58 To Order
Photo Part No Description Price (each) Stock
675000794 NUT $1.55 To Order
Photo Part No Description Price (each) Stock
670213972 SCREW $2.94 To Order
Photo Part No Description Price (each) Stock
670217140 SCREW $1.25 To Order
Photo Part No Description Price (each) Stock
670161934 CLIP $1.43 To Order
Photo Part No Description Price (each) Stock
670213219 CLIP $4.96 To Order
Photo Part No Description Price (each) Stock
670160076 AIR SUSPENSION SYSTEM CHARGING PIPE $86.03 To Order
Photo Part No Description Price (each) Stock
673013285 COMPRESSOR KIT $923.37 To Order
Photo Part No Description Price (each) Stock
673013287 ASSEMBLY KIT $289.97 To Order
Photo Part No Description Price (each) Stock
673013294 VALVE BLOCK KIT $532.41 To Order
Photo Part No Description Price (each) Stock
673013286 BRACKET KIT $392.75 To Order
Photo Part No Description Price (each) Stock
675000966 NUT $1.29 To Order
View All

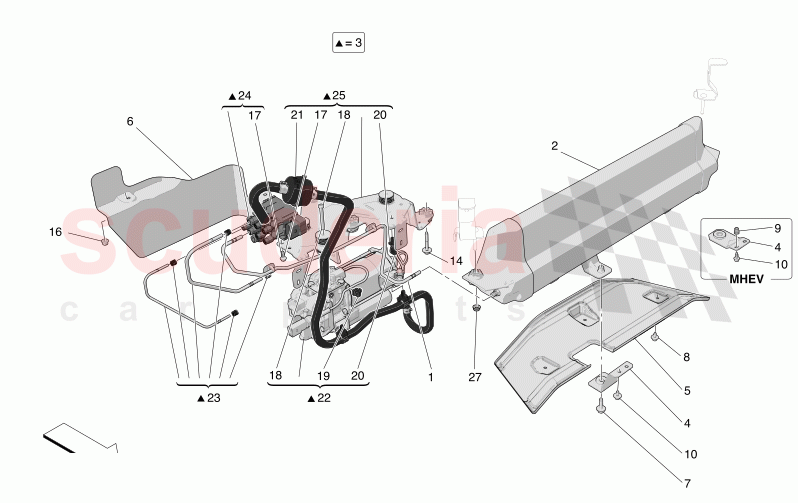

AIR SUSPENSION SYSTEM of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670305675
AIR PIPE 		$18.37 1
2 670216817
AIR SUSPENSION SYSTEM TANK
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$363.89 1
3 670217139
AIR SUSPENSION SYSTEM COMPRESSOR
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$1,428.28 1
4 670177218
BRACKET
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$14.79 1
5 670176773
HEAT SHIELD
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$18.61 1
6 670176772
HEAT SHIELD 		$35.37 1
7 675001245
SCREW
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$1.71 1
9 675000686
RIVET
Available with: AIR SUSPENSION WITH SKYHOOK ;
IN STOCK 		$1.22 2
10 675001036
SCREW
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$1.47 2
14 670177587
SCREW
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$3.58 1
16 675000794
NUT
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$1.55 2
17 670213972
SCREW 		$2.94 2
18 670217140
SCREW 		$1.25 3
19 670161934
CLIP 		$1.43 2
20 670213219
CLIP 		$4.96 1
21 670160076
AIR SUSPENSION SYSTEM CHARGING PIPE 		$86.03 1
22 673013285
COMPRESSOR KIT 		$923.37 1
23 673013287
ASSEMBLY KIT 		$289.97 1
24 673013294
VALVE BLOCK KIT 		$532.41 1
25 673013286
BRACKET KIT 		$392.75 1
27 675000966
NUT
Available with: AIR SUSPENSION WITH SKYHOOK ; 		$1.29 2
