Braking Devices On Front Wheels

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV

Illustration Number: 04101

Find Your Part

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV - BRAKING DEVICES ON FRONT WHEELS (04101)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670156762 FRONT BRAKE DISC $172.42 IN STOCK
Photo Part No Description Price (each) Stock
675001537 SCREW $2.49 To Order
Photo Part No Description Price (each) Stock
675001495 SCREW $5.32 To Order
Photo Part No Description Price (each) Stock
670214625 LH FRONT CALIPER ASSEMBLY $686.72 To Order
670214626 LH FRONT CALIPER ASSEMBLY $663.92 To Order
670214627 LH FRONT CALIPER ASSEMBLY $666.09 To Order
...and 25 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673015812 FRONT PADS KIT $321.91 To Order
673017372 FRONT PADS KIT M182 MHEV ECE $295.00 To Order
Photo Part No Description Price (each) Stock
675001587 LH FRONT CALIPER RIGID PIPE $7.23 To Order
675001588 RH FRONT CALIPER RIGID PIPE $7.77 To Order
Photo Part No Description Price (each) Stock
675001676 LH FRONT BRACKET $7.31 To Order
675001677 RH FRONT BRACKET $7.31 To Order
Photo Part No Description Price (each) Stock
675000898 SCREW $5.04 To Order
Photo Part No Description Price (each) Stock
675001063 NUT $1.28 To Order
Photo Part No Description Price (each) Stock
675001738 LH FRONT BRAKE DISC GUARD $26.85 To Order
675001739 RH FRONT BRAKE DISC GUARD $26.85 To Order
Photo Part No Description Price (each) Stock
675001032 SCREW $1.32 To Order
Photo Part No Description Price (each) Stock
675000276 SPRING PLATE $1.00 To Order
Photo Part No Description Price (each) Stock
675001877 FLEXIBLE PIPE TO FRONT CALIPERS $10.43 To Order
Photo Part No Description Price (each) Stock
675001740 LH BRACKET $2.97 To Order
675001741 RH BRACKET $3.87 To Order
Photo Part No Description Price (each) Stock
673011103 BLEEDER SCREW AND PLUG $61.91 To Order
Photo Part No Description Price (each) Stock
675001897 RIVET $2.10 To Order
Photo Part No Description Price (each) Stock
673011104 SPRING $80.27 To Order
Photo Part No Description Price (each) Stock
673011102 LH BRACKET AND SCREW $40.14 To Order
673011101 RH BRACKET AND SCREW $40.14 To Order
Photo Part No Description Price (each) Stock
673011100 GASKET KIT $78.35 To Order
View All

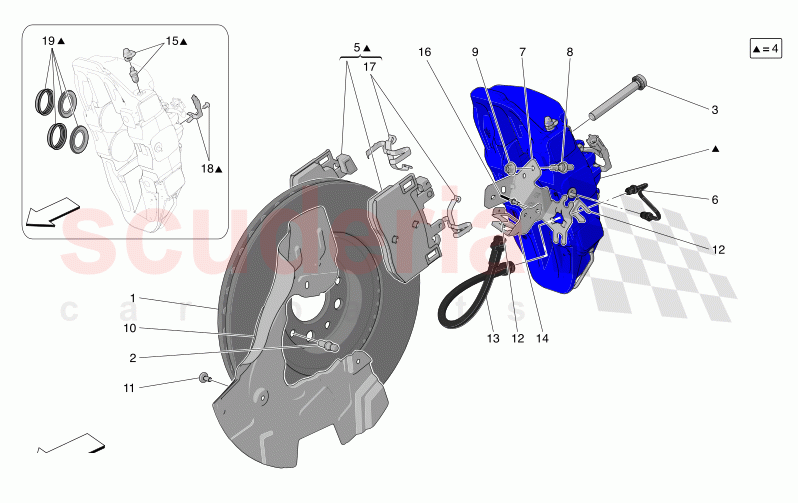

BRAKING DEVICES ON FRONT WHEELS of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670156762
FRONT BRAKE DISC
IN STOCK 		$172.42 2
2 675001537
SCREW 		$2.49 2
3 675001495
SCREW 		$5.32 4
4 670214625
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2028092; Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$686.72 1
4 670214626
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2029164; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$663.92 1
4 670214627
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2028024; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$666.09 1
4 670214628
LH FRONT CALIPER ASSEMBLY
Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$686.72 1
4 670214629
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2032179; Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$666.09 1
4 670308610
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2028093 - 2034319; Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$621.53 1
4 670308611
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2029165 - 2034469; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		- 1 Enquire
4 670308612
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2028025 - 2034134; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$678.03 1
4 670214635
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2028092; Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$686.72 1
4 670214636
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2029164; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$663.92 1
4 670214637
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2028024; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$686.72 1
4 670214638
RH FRONT CALIPER ASSEMBLY
Available with: BRAKE CALIPERS LIGHT BLUE Not available with: STANDARD BRAKE CALIPERS, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$686.72 1
4 670214639
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 2032179; Available with: YELLOW BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$686.72 1
4 670308620
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2028093 - 2034319; Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$621.53 1
4 670308621
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2029165 - 2034469; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$641.09 1
4 670308622
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2028025 - 2034134; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$678.03 1
4 670214629
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 2033535; Available with: YELLOW BRAKE CALIPERS ; EU AU UK JP JRH IN KO N0 N8; 		$666.09 1
4 670311709
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034135 - 99999999; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$678.03 1
4 670311704
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034320 - 99999999; Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$542.21 1
4 670311708
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034470 - 99999999; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$678.03 1
4 670308614
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2033536 - 2034472; Available with: YELLOW BRAKE CALIPERS ; EU AU US UK JP JRH IN KO N0 N8; 		- 1 Enquire
4 670311710
LH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034473 - 99999999; Available with: YELLOW BRAKE CALIPERS ; EU AU UK JP JRH IN KO N0 N8; 		$678.03 1
4 670214639
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 2033535; Available with: YELLOW BRAKE CALIPERS ; EU AU UK JP JRH IN KO N0 N8; 		$686.72 1
4 670311715
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034135 - 99999999; Available with: RED BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$678.03 1
4 670311705
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034320 - 99999999; Available with: STANDARD BRAKE CALIPERS Not available with: BRAKE CALIPERS LIGHT BLUE, BLACK BRAKE CALIPERS, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$559.60 1
4 670311714
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034470 - 99999999; Available with: BLACK BRAKE CALIPERS Not available with: STANDARD BRAKE CALIPERS, BRAKE CALIPERS LIGHT BLUE, RED BRAKE CALIPERS, YELLOW BRAKE CALIPERS; EU AU UK JP JRH IN KO N0 N8; 		$678.03 1
4 670308624
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2033536 - 2034472; Available with: YELLOW BRAKE CALIPERS ; EU AU UK JP JRH IN KO N0 N8; 		- 1 Enquire
4 670311718
RH FRONT CALIPER ASSEMBLY
WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2034473 - 99999999; Available with: YELLOW BRAKE CALIPERS ; EU AU UK JP JRH IN KO N0 N8; 		$678.03 1
5 673015812
FRONT PADS KIT
PLEASE REFER TO TSO BULLETINS MAS004408 BEFORE ORDERING THE CORRECT BRAKE PADS KIT; EU AU UK JP JRH IN KO N0 N8; 		$321.91 1
5 673017372
FRONT PADS KIT M182 MHEV ECE
PLEASE REFER TO TSO BULLETINS MAS004408 BEFORE ORDERING THE CORRECT BRAKE PADS KIT; EU AU UK JP JRH IN KO N0 N8; 		$295.00 1
6 675001587
LH FRONT CALIPER RIGID PIPE
Not available with: AWD DISCONNECT; 		$7.23 1
6 675001588
RH FRONT CALIPER RIGID PIPE
Not available with: AWD DISCONNECT; 		$7.77 1
7 675001676
LH FRONT BRACKET
Not available with: AWD DISCONNECT; 		$7.31 1
7 675001677
RH FRONT BRACKET
Not available with: AWD DISCONNECT; 		$7.31 1
8 675000898
SCREW 		$5.04 4
9 675001063
NUT 		$1.28 4
10 675001738
LH FRONT BRAKE DISC GUARD
Not available with: AWD DISCONNECT; 		$26.85 1
10 675001739
RH FRONT BRAKE DISC GUARD
Not available with: AWD DISCONNECT; 		$26.85 1
11 675001032
SCREW 		$1.32 6
12 675000276
SPRING PLATE 		$1.00 4
13 675001877
FLEXIBLE PIPE TO FRONT CALIPERS 		$10.43 2
14 675001740
LH BRACKET 		$2.97 1
14 675001741
RH BRACKET 		$3.87 1
15 673011103
BLEEDER SCREW AND PLUG 		$61.91 4
16 675001897
RIVET 		$2.10 4
17 673011104
SPRING 		$80.27 4
18 673011102
LH BRACKET AND SCREW 		$40.14 1
18 673011101
RH BRACKET AND SCREW 		$40.14 1
19 673011100
GASKET KIT 		$78.35 1
