Cooling: Air Radiators And Ducts

Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV

Illustration Number: 01701

Find Your Part

Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV - COOLING: AIR RADIATORS AND DUCTS (01701)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675001943 WATER RADIATOR $522.70 To Order
Photo Part No Description Price (each) Stock
675002060 LH BRACKET FOR UPPER FIXING WATER RADIATOR $36.59 To Order
Photo Part No Description Price (each) Stock
675002059 RH BRACKET FOR UPPER FIXING WATER RADIATOR $36.59 To Order
Photo Part No Description Price (each) Stock
675001933 SCREW $1.56 To Order
Photo Part No Description Price (each) Stock
675002068 LOWER COVER $54.65 To Order
Photo Part No Description Price (each) Stock
675002069 SCREW $0.76 To Order
Photo Part No Description Price (each) Stock
675001945 SECONDARY WATER RADIATOR $516.64 To Order
Photo Part No Description Price (each) Stock
670181751 AIR SHUTTER $168.91 To Order
Photo Part No Description Price (each) Stock
670161225 OIL RADIATOR $342.08 To Order
Photo Part No Description Price (each) Stock
675001562 LH BRACKET $18.41 To Order
675001561 RH BRACKET $18.41 To Order
Photo Part No Description Price (each) Stock
675001063 NUT $1.31 To Order
Photo Part No Description Price (each) Stock
675001053 SCREW $1.69 IN STOCK
Photo Part No Description Price (each) Stock
675001119 SCREW $0.83 To Order
Photo Part No Description Price (each) Stock
675001449 A.C CONDENSER $651.85 To Order
Photo Part No Description Price (each) Stock
675001040 PLATE $1.32 To Order
Photo Part No Description Price (each) Stock
675001942 FAN $904.37 To Order
Photo Part No Description Price (each) Stock
670218079 RH BRACKET $23.62 IN STOCK
Photo Part No Description Price (each) Stock
675002110 LH BRACKET $25.87 IN STOCK
Photo Part No Description Price (each) Stock
675001070 SCREW $1.51 To Order
Photo Part No Description Price (each) Stock
675001452 DRAIN VALVE $4.85 To Order
Photo Part No Description Price (each) Stock
675001610 WIRE COVER $13.37 To Order
Photo Part No Description Price (each) Stock
675002067 STUD $11.40 To Order
Photo Part No Description Price (each) Stock
675002070 GUIDE CABLE $16.69 To Order
Photo Part No Description Price (each) Stock
675002071 RIVET $1.23 To Order
View All

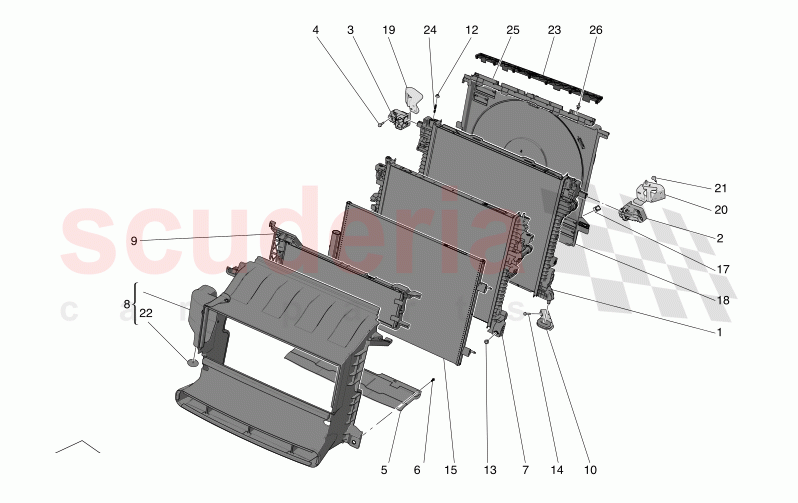

COOLING: AIR RADIATORS AND DUCTS of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 250HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675001943
WATER RADIATOR 		$522.70 1
2 675002060
LH BRACKET FOR UPPER FIXING WATER RADIATOR 		$36.59 1
3 675002059
RH BRACKET FOR UPPER FIXING WATER RADIATOR 		$36.59 1
4 675001933
SCREW 		$1.56 4
5 675002068
LOWER COVER 		$54.65 1
6 675002069
SCREW 		$0.76 4
7 675001945
SECONDARY WATER RADIATOR 		$516.64 1
8 670181751
AIR SHUTTER 		$168.91 1
9 670161225
OIL RADIATOR 		$342.08 1
10 675001562
LH BRACKET 		$18.41 1
10 675001561
RH BRACKET 		$18.41 1
12 675001063
NUT 		$1.31 2
13 675001053
SCREW
IN STOCK 		$1.69 2
14 675001119
SCREW 		$0.83 4
15 675001449
A.C CONDENSER 		$651.85 1
17 675001040
PLATE 		$1.32 1
18 675001942
FAN 		$904.37 1
19 670218079
RH BRACKET
IN STOCK 		$23.62 1
20 675002110
LH BRACKET
IN STOCK 		$25.87 1
21 675001070
SCREW 		$1.51 6
22 675001452
DRAIN VALVE 		$4.85 1
23 675001610
WIRE COVER 		$13.37 1
24 675002067
STUD 		$11.40 2
25 675002070
GUIDE CABLE 		$16.69 1
26 675002071
RIVET 		$1.23 2
