Name: REAR STRUCTURAL FRAMES AND SHEET PANELS
Rating: 4.1 (1 reviews)

REAR STRUCTURAL FRAMES AND SHEET PANELS of Maserati Maserati Grecale Folgore Automatic 4WD BEV 400 kW

View All

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - REAR STRUCTURAL FRAMES AND SHEET PANELS (09052)

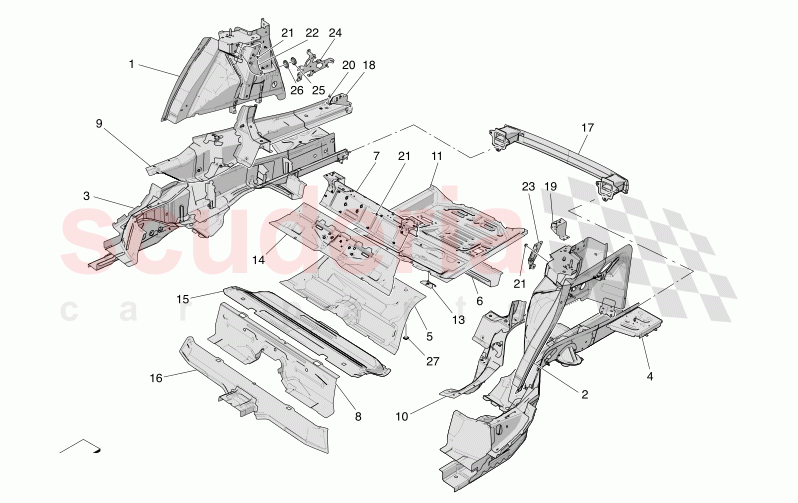

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	673014208	RH REAR WHEELHOUSE	$379.19	To Order

Photo	Part No	Description	Price (each)	Stock
	673014209	LH REAR WHEELHOUSE	$379.19	To Order

Photo	Part No	Description	Price (each)	Stock
	673016814	COMPLETE RH LONGITUDINAL MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673016815	COMPLETE LH LONGITUDINAL MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673014222	FRONT LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$104.01	To Order

Photo	Part No	Description	Price (each)	Stock
	673015743	REAR CROSS MEMBER CONNECTING SIDE MEMBERS	$39.57	To Order

Photo	Part No	Description	Price (each)	Stock
	673014224	REAR SEAT CROSS MEMBER	$89.84	To Order

Photo	Part No	Description	Price (each)	Stock
	673015744	REAR SEAT CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673014254	RH REAR SIDE MEMBER BOX	$280.40	To Order

Photo	Part No	Description	Price (each)	Stock
	673014255	LH REAR SIDE MEMBER BOX	$280.40	To Order

Photo	Part No	Description	Price (each)	Stock
	673015745	COMPLETE REAR FLOOR	$116.37	To Order

Photo	Part No	Description	Price (each)	Stock
	673014257	REINFORCEMENT	$9.38	To Order

Photo	Part No	Description	Price (each)	Stock
	673014226	REAR SIDE REAR FLOOR	$90.33	To Order

Photo	Part No	Description	Price (each)	Stock
	673015746	FRONT SIDE OF REAR FLOOR ASSEMBLY	$116.37	To Order

Photo	Part No	Description	Price (each)	Stock
	673014227	REAR CROSS PIECE MEMBER	$79.12	To Order

Photo	Part No	Description	Price (each)	Stock
	670295915	REAR CRASH-BOX CROSS MEMBER ASS.	$330.36	To Order

Photo	Part No	Description	Price (each)	Stock
	670299287	RH REAR BRACKET	$22.11	To Order

Photo	Part No	Description	Price (each)	Stock
	670299289	LH REAR BRACKET	$22.11	To Order

Photo	Part No	Description	Price (each)	Stock
	675000969	NUT	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	675000181	NUT	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	670172816	RH BRACKET WINDER	$12.69	To Order

Photo	Part No	Description	Price (each)	Stock
	670172817	LH BRACKET WINDER	$12.69	To Order

Photo	Part No	Description	Price (each)	Stock
	670213577	BRACKET	$25.49	To Order

Photo	Part No	Description	Price (each)	Stock
	670220288	PLUG	$5.61	To Order

Photo	Part No	Description	Price (each)	Stock
	675001547	PLUG	$3.08	To Order

Photo	Part No	Description	Price (each)	Stock
	675001591	PLUG	$1.30	To Order

View All

Diagram Tap to enlarge

Rear Structural Frames And Sheet Panels

Maserati Grecale Folgore Automatic 4WD BEV 400 kW

Illustration Number: 09052

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - REAR STRUCTURAL FRAMES AND SHEET PANELS (09052)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	673014208	RH REAR WHEELHOUSE	673014208 RH REAR WHEELHOUSE	$379.19	1
2	673014209	LH REAR WHEELHOUSE	673014209 LH REAR WHEELHOUSE	$379.19	1
3	673016814	COMPLETE RH LONGITUDINAL MEMBER	673016814 COMPLETE RH LONGITUDINAL MEMBER	-	1	Enquire
4	673016815	COMPLETE LH LONGITUDINAL MEMBER	673016815 COMPLETE LH LONGITUDINAL MEMBER	-	1	Enquire
5	673014222	FRONT LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	673014222 FRONT LONGITUDINAL MEMBER CONNECTING CROSS MEMBER	$104.01	1
6	673015743	REAR CROSS MEMBER CONNECTING SIDE MEMBERS	673015743 REAR CROSS MEMBER CONNECTING SIDE MEMBERS	$39.57	1
7	673014224	REAR SEAT CROSS MEMBER	673014224 REAR SEAT CROSS MEMBER	$89.84	1
8	673015744	REAR SEAT CROSS MEMBER	673015744 REAR SEAT CROSS MEMBER	-	1	Enquire
9	673014254	RH REAR SIDE MEMBER BOX	673014254 RH REAR SIDE MEMBER BOX	$280.40	1
10	673014255	LH REAR SIDE MEMBER BOX	673014255 LH REAR SIDE MEMBER BOX	$280.40	1
11	673015745	COMPLETE REAR FLOOR	673015745 COMPLETE REAR FLOOR	$116.37	1
13	673014257	REINFORCEMENT	673014257 REINFORCEMENT	$9.38	4
14	673014226	REAR SIDE REAR FLOOR	673014226 REAR SIDE REAR FLOOR	$90.33	1
15	673015746	FRONT SIDE OF REAR FLOOR ASSEMBLY	673015746 FRONT SIDE OF REAR FLOOR ASSEMBLY	$116.37	1
16	673014227	REAR CROSS PIECE MEMBER	673014227 REAR CROSS PIECE MEMBER	$79.12	1
17	670295915	REAR CRASH-BOX CROSS MEMBER ASS.	670295915 REAR CRASH-BOX CROSS MEMBER ASS. Not available with: HOOK FOR TRAILER;	$330.36	1
18	670299287	RH REAR BRACKET	670299287 RH REAR BRACKET	$22.11	1
19	670299289	LH REAR BRACKET	670299289 LH REAR BRACKET	$22.11	1
20	675000969	NUT	675000969 NUT	$1.01	6
21	675000181	NUT	675000181 NUT	$1.52	10
22	670172816	RH BRACKET WINDER	670172816 RH BRACKET WINDER	$12.69	1
23	670172817	LH BRACKET WINDER	670172817 LH BRACKET WINDER	$12.69	1
24	670213577	BRACKET	670213577 BRACKET	$25.49	1
25	670220288	PLUG	670220288 PLUG	$5.61	1
26	675001547	PLUG	675001547 PLUG	$3.08	1
27	675001591	PLUG	675001591 PLUG	$1.30	2

Rear Structural Frames And Sheet Panels

Maserati Grecale Folgore Automatic 4WD BEV 400 kW

Illustration Number: 09052

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - REAR STRUCTURAL FRAMES AND SHEET PANELS (09052)
