Maserati Grecale Folgore Automatic 4WD BEV 400 kW - A/C UNIT: ENGINE COMPARTMENT DEVICES (08403)

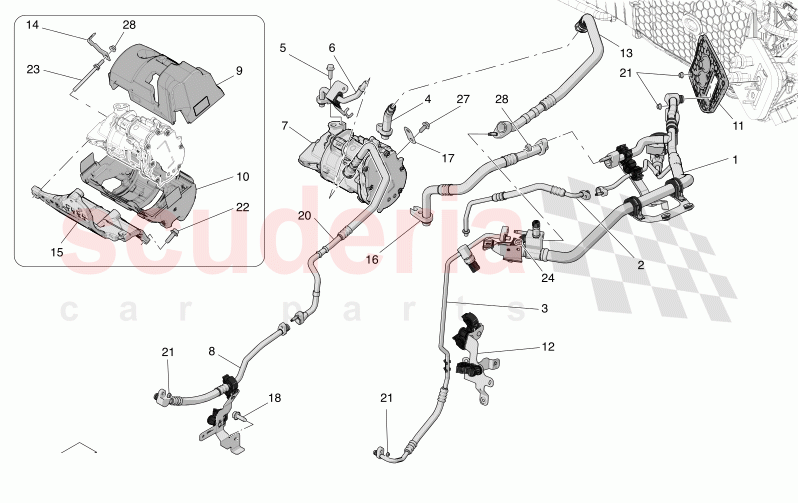

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670177906	PIPE BETWEEN EVAPOURATOR AND UNION	$371.58	To Order

Photo	Part No	Description	Price (each)	Stock
	670178704	COMPLETE FLEXIBLE PIPE FROM EVAPORATOR TO UNION	$50.04	To Order

Photo	Part No	Description	Price (each)	Stock
	670177881	PIPE BETWEEN CONDENSER AND JUNCTION	$151.60	To Order

Photo	Part No	Description	Price (each)	Stock
	670177825	PIPE A.C. - COMPRESSOR	$33.75	To Order

Photo	Part No	Description	Price (each)	Stock
	675001064	SCREW	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	670177824	PIPE A.C. - COMPRESSOR	$52.32	To Order

Photo	Part No	Description	Price (each)	Stock
	675002389	A.C. COMPRESSOR	$997.82	To Order

Photo	Part No	Description	Price (each)	Stock
	670177882	COMPLETE FLEXIBLE PIPE FROM CONDENSER TO EVAPORATOR	$90.75	To Order

Photo	Part No	Description	Price (each)	Stock
	670178525	COMPRESSOR UPPER COVER	$59.54	To Order

Photo	Part No	Description	Price (each)	Stock
	670221454	COMPRESSOR BOTTOM COVER	$41.63	To Order

Photo	Part No	Description	Price (each)	Stock
	675001734	GASKET	$12.34	To Order

Photo	Part No	Description	Price (each)	Stock
	670220392	BRACKET	$46.15	To Order

Photo	Part No	Description	Price (each)	Stock
	670220390	COMPLETE FLEXIBLE PIPE FROM COMPRESSOR TO UNION	$75.58	To Order

Photo	Part No	Description	Price (each)	Stock
	670177933	BRACKET	$23.90	To Order

Photo	Part No	Description	Price (each)	Stock
	670178942	REINFORCEMENT BRACKET	$125.52	To Order

Photo	Part No	Description	Price (each)	Stock
	670178524	PIPE	$64.00	To Order

Photo	Part No	Description	Price (each)	Stock
	670221030	BRACKET	$5.23	To Order

Photo	Part No	Description	Price (each)	Stock
	675001232	SCREW	$7.16	To Order

Photo	Part No	Description	Price (each)	Stock
	670304921	PIPE FROM UNION TO COMPRESSOR	$52.82	To Order

Photo	Part No	Description	Price (each)	Stock
	675000969	NUT	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	670179008	SCREW	$3.24	To Order

Photo	Part No	Description	Price (each)	Stock
	46340850	TWIN SCREW	$3.48	To Order

Photo	Part No	Description	Price (each)	Stock
	675001307	NUT	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	675000174	SCREWM8	$1.72	To Order

Photo	Part No	Description	Price (each)	Stock
	675001306	NUT	$1.20	To Order

View All

Diagram Tap to enlarge

A/c Unit: Engine Compartment Devices

Maserati Grecale Folgore Automatic 4WD BEV 400 kW

Illustration Number: 08403

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - A/C UNIT: ENGINE COMPARTMENT DEVICES (08403)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670177906	PIPE BETWEEN EVAPOURATOR AND UNION	670177906 PIPE BETWEEN EVAPOURATOR AND UNION	$371.58	1
2	670178704	COMPLETE FLEXIBLE PIPE FROM EVAPORATOR TO UNION	670178704 COMPLETE FLEXIBLE PIPE FROM EVAPORATOR TO UNION	$50.04	1
3	670177881	PIPE BETWEEN CONDENSER AND JUNCTION	670177881 PIPE BETWEEN CONDENSER AND JUNCTION	$151.60	1
4	670177825	PIPE A.C. - COMPRESSOR	670177825 PIPE A.C. - COMPRESSOR	$33.75	1
5	675001064	SCREW	675001064 SCREW	$1.23	2
6	670177824	PIPE A.C. - COMPRESSOR	670177824 PIPE A.C. - COMPRESSOR	$52.32	1
7	675002389	A.C. COMPRESSOR	675002389 A.C. COMPRESSOR	$997.82	1
8	670177882	COMPLETE FLEXIBLE PIPE FROM CONDENSER TO EVAPORATOR	670177882 COMPLETE FLEXIBLE PIPE FROM CONDENSER TO EVAPORATOR	$90.75	1
9	670178525	COMPRESSOR UPPER COVER	670178525 COMPRESSOR UPPER COVER	$59.54	1
10	670221454	COMPRESSOR BOTTOM COVER	670221454 COMPRESSOR BOTTOM COVER	$41.63	1
11	675001734	GASKET	675001734 GASKET	$12.34	1
12	670220392	BRACKET	670220392 BRACKET	$46.15	1
13	670220390	COMPLETE FLEXIBLE PIPE FROM COMPRESSOR TO UNION	670220390 COMPLETE FLEXIBLE PIPE FROM COMPRESSOR TO UNION	$75.58	1
14	670177933	BRACKET	670177933 BRACKET	$23.90	1
15	670178942	REINFORCEMENT BRACKET	670178942 REINFORCEMENT BRACKET	$125.52	1
16	670178524	PIPE	670178524 PIPE	$64.00	1
17	670221030	BRACKET	670221030 BRACKET	$5.23	1
18	675001232	SCREW	675001232 SCREW	$7.16	2
20	670304921	PIPE FROM UNION TO COMPRESSOR	670304921 PIPE FROM UNION TO COMPRESSOR	$52.82	1
21	675000969	NUT	675000969 NUT	$1.02	16
22	670179008	SCREW	670179008 SCREW	$3.24	4
23	46340850	TWIN SCREW	46340850 TWIN SCREW	$3.48	3
24	675001307	NUT	675001307 NUT	$1.16	2
27	675000174	SCREWM8	675000174 SCREWM8	$1.72	1
28	675001306	NUT	675001306 NUT	$1.20	4
