Name: REAR SUSPENSION
Rating: 4.3 (1 reviews)

REAR SUSPENSION of Maserati Maserati Grecale Folgore Automatic 4WD BEV 400 kW

View All

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - REAR SUSPENSION (06202)

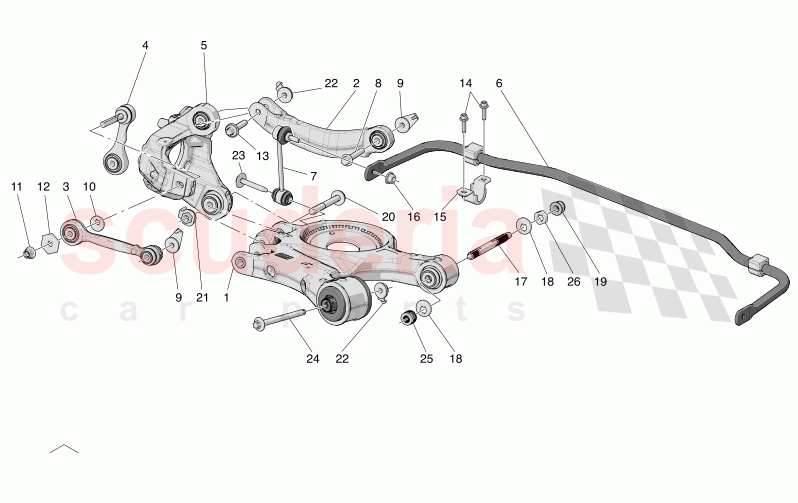

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670178172	LH REAR SWINGING ARM	$361.28	To Order
	670178171	RH REAR SWINGING ARM	$361.28	To Order

Photo	Part No	Description	Price (each)	Stock
	670161064	LH ROD REAR CAMBER	$115.80	To Order
	670161062	RH ROD REAR CAMBER	$120.76	To Order

Photo	Part No	Description	Price (each)	Stock
	675001564	REAR TOE-IN ADJUSTMENT ROD	$64.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675001560	BALL TIE ROD	$68.12	To Order

Photo	Part No	Description	Price (each)	Stock
	670178169	LH REAR HUB HOLDER ASSEMBLY	$444.44	To Order
	670178170	RH REAR HUB HOLDER ASSEMBLY	$444.44	To Order

Photo	Part No	Description	Price (each)	Stock
	670178151	REAR STABILIZER BAR	$190.04	To Order

Photo	Part No	Description	Price (each)	Stock
	670178152	LINK STABILIZER BAR	$87.01	To Order

Photo	Part No	Description	Price (each)	Stock
	670221401	SCREW	$5.81	To Order

Photo	Part No	Description	Price (each)	Stock
	675001680	NUT	$6.89	To Order

Photo	Part No	Description	Price (each)	Stock
	675001789	WASHER	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	675001533	NUT	$2.39	To Order
	675002403	NUT	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	675001712	RING NUT	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	675001684	SCREW	$3.98	To Order

Photo	Part No	Description	Price (each)	Stock
	675001686	SCREW	$1.58	To Order

Photo	Part No	Description	Price (each)	Stock
	670220318	REAR STABILIZER BAR CLAMP	$8.06	To Order

Photo	Part No	Description	Price (each)	Stock
	670002916	NUT M10	$2.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670222529	STUD	$38.73	To Order

Photo	Part No	Description	Price (each)	Stock
	675001836	WASHER	$4.44	To Order

Photo	Part No	Description	Price (each)	Stock
	675000585	NUT	$3.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675001531	SCREW	$5.62	To Order

Photo	Part No	Description	Price (each)	Stock
	675000706	NUT	$4.78	To Order

Photo	Part No	Description	Price (each)	Stock
	675001685	NUT	$6.89	To Order

Photo	Part No	Description	Price (each)	Stock
	670182469	SCREW	$17.18	To Order

Photo	Part No	Description	Price (each)	Stock
	675001830	SCREW	$6.33	To Order

Photo	Part No	Description	Price (each)	Stock
	670299995	NUT	$48.63	To Order

Photo	Part No	Description	Price (each)	Stock
	670222531	SPACER	$14.10	To Order

View All

Diagram Tap to enlarge

Rear Suspension

Maserati Grecale Folgore Automatic 4WD BEV 400 kW

Illustration Number: 06202

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - REAR SUSPENSION (06202)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670178172	LH REAR SWINGING ARM	670178172 LH REAR SWINGING ARM Available with: AIR SUSPENSION WITH SKYHOOK ;	$361.28	1
1	670178171	RH REAR SWINGING ARM	670178171 RH REAR SWINGING ARM Available with: AIR SUSPENSION WITH SKYHOOK ;	$361.28	1
2	670161064	LH ROD REAR CAMBER	670161064 LH ROD REAR CAMBER Available with: AIR SUSPENSION WITH SKYHOOK ;	$115.80	1
2	670161062	RH ROD REAR CAMBER	670161062 RH ROD REAR CAMBER Available with: AIR SUSPENSION WITH SKYHOOK ;	$120.76	1
3	675001564	REAR TOE-IN ADJUSTMENT ROD IN STOCK	675001564 REAR TOE-IN ADJUSTMENT ROD IN STOCK	$64.04	2
4	675001560	BALL TIE ROD	675001560 BALL TIE ROD	$68.12	2
5	670178169	LH REAR HUB HOLDER ASSEMBLY	670178169 LH REAR HUB HOLDER ASSEMBLY	$444.44	1
5	670178170	RH REAR HUB HOLDER ASSEMBLY	670178170 RH REAR HUB HOLDER ASSEMBLY	$444.44	1
6	670178151	REAR STABILIZER BAR	670178151 REAR STABILIZER BAR	$190.04	1
7	670178152	LINK STABILIZER BAR	670178152 LINK STABILIZER BAR	$87.01	2
8	670221401	SCREW	670221401 SCREW	$5.81	2
9	675001680	NUT	675001680 NUT	$6.89	4
10	675001789	WASHER	675001789 WASHER	$2.70	2
11	675001533	NUT	675001533 NUT Not available with: AWD DISCONNECT;	$2.39	2
11	675002403	NUT	675002403 NUT Available with: AWD DISCONNECT ;	$1.38	2
12	675001712	RING NUT	675001712 RING NUT	$2.70	2
13	675001684	SCREW	675001684 SCREW	$3.98	4
14	675001686	SCREW	675001686 SCREW	$1.58	4
15	670220318	REAR STABILIZER BAR CLAMP	670220318 REAR STABILIZER BAR CLAMP	$8.06	2
16	670002916	NUT M10 IN STOCK	670002916 NUT M10 IN STOCK	$2.63	2
17	670222529	STUD	670222529 STUD	$38.73	2
18	675001836	WASHER	675001836 WASHER	$4.44	4
19	675000585	NUT IN STOCK	675000585 NUT IN STOCK	$3.19	2
20	675001531	SCREW	675001531 SCREW	$5.62	2
21	675000706	NUT	675000706 NUT	$4.78	2
22	675001685	NUT	675001685 NUT	$6.89	4
23	670182469	SCREW	670182469 SCREW	$17.18	2
24	675001830	SCREW	675001830 SCREW	$6.33	2
25	670299995	NUT	670299995 NUT	$48.63	2
26	670222531	SPACER	670222531 SPACER	$14.10	2

Rear Suspension

Maserati Grecale Folgore Automatic 4WD BEV 400 kW

Illustration Number: 06202

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - REAR SUSPENSION (06202)
