Name: COOLING: AIR RADIATORS AND DUCTS
Rating: 4.1 (1 reviews)

View All

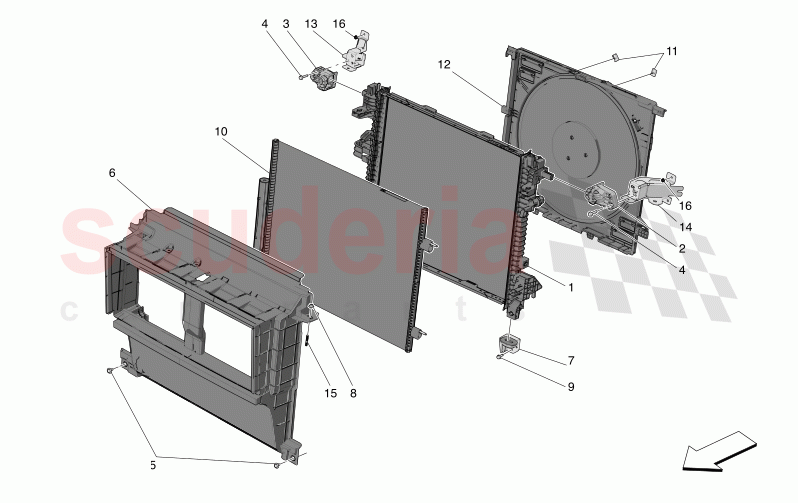

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670182500	WATER RADIATOR	$653.12	To Order

Photo	Part No	Description	Price (each)	Stock
	675002060	LH BRACKET FOR UPPER FIXING WATER RADIATOR	$35.77	To Order

Photo	Part No	Description	Price (each)	Stock
	675002059	RH BRACKET FOR UPPER FIXING WATER RADIATOR	$35.77	To Order

Photo	Part No	Description	Price (each)	Stock
	675001933	SCREW	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	675001053	SCREW	$1.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670177541	CPL AIR SHUTTER	$92.63	To Order

Photo	Part No	Description	Price (each)	Stock
	675001063	NUT	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	675001119	SCREW	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	675001449	A.C CONDENSER	$637.33	To Order

Photo	Part No	Description	Price (each)	Stock
	675001040	PLATE	$1.29	To Order

Photo	Part No	Description	Price (each)	Stock
	675001942	FAN	$884.21	To Order

Photo	Part No	Description	Price (each)	Stock
	675002111	RH BRACKET	$41.73	To Order

Photo	Part No	Description	Price (each)	Stock
	675002112	LH BRACKET	$45.45	To Order

Photo	Part No	Description	Price (each)	Stock
	675002067	STUD	$11.14	To Order

Photo	Part No	Description	Price (each)	Stock
	675000969	NUT	$1.02	To Order

View All

Cooling: Air Radiators And Ducts

Maserati Grecale Folgore Automatic 4WD BEV 400 kW

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670182500	WATER RADIATOR	670182500 WATER RADIATOR	$653.12	1
2	675002060	LH BRACKET FOR UPPER FIXING WATER RADIATOR	675002060 LH BRACKET FOR UPPER FIXING WATER RADIATOR	$35.77	1
3	675002059	RH BRACKET FOR UPPER FIXING WATER RADIATOR	675002059 RH BRACKET FOR UPPER FIXING WATER RADIATOR	$35.77	1
4	675001933	SCREW	675001933 SCREW	$1.52	4
5	675001053	SCREW IN STOCK	675001053 SCREW IN STOCK	$1.64	2
6	670177541	CPL AIR SHUTTER	670177541 CPL AIR SHUTTER	$92.63	1
7	670178568	LH LOWER BRACKET	670178568 LH LOWER BRACKET	$17.57	1
7	670178569	RH LOWER BRACKET	670178569 RH LOWER BRACKET	$17.67	1
8	675001063	NUT	675001063 NUT	$1.28	2
9	675001119	SCREW	675001119 SCREW	$0.81	4
10	675001449	A.C CONDENSER	675001449 A.C CONDENSER	$637.33	1
11	675001040	PLATE	675001040 PLATE	$1.29	2
12	675001942	FAN	675001942 FAN	$884.21	1
13	675002111	RH BRACKET	675002111 RH BRACKET	$41.73	1
14	675002112	LH BRACKET	675002112 LH BRACKET	$45.45	1
15	675002067	STUD	675002067 STUD	$11.14	2
16	675000969	NUT	675000969 NUT	$1.02	6
