Actuation Hydraulic Parts For F1 Gearbox

Maserati GranTurismo (2011-2012) S

Find Your Part

Maserati GranTurismo (2011-2012) S - ACTUATION HYDRAULIC PARTS FOR F1 GEARBOX

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
236033 F1 GEARBOX KIT $10,420.33 To Order
Photo Part No Description Price (each) Stock
260542 QUICK DISCONNECT KIT $814.61 To Order
Photo Part No Description Price (each) Stock
231621 Allen Screw M6 x 30 $1.16 To Order
231622 SCREWM6X35 $1.17 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.35 IN STOCK
Photo Part No Description Price (each) Stock
186776 ACTUATOR SUPPORT UPPER BRACKET $11.06 To Order
Photo Part No Description Price (each) Stock
86768100 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $1.42 IN STOCK
Photo Part No Description Price (each) Stock
14048211 NUT $5.09 To Order
Photo Part No Description Price (each) Stock
14499421 WASHER $1.56 To Order
Photo Part No Description Price (each) Stock
199723 ACTUATOR SUPPORT LOWER BRACKET $13.26 To Order
Photo Part No Description Price (each) Stock
14301924 SCREW $2.52 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $1.42 IN STOCK
Photo Part No Description Price (each) Stock
14360024 SCREW $3.03 To Order
Photo Part No Description Price (each) Stock
12601474 Wavy Washer 10mm $1.42 IN STOCK
Photo Part No Description Price (each) Stock
14039614 NUT $1.34 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.35 IN STOCK
Photo Part No Description Price (each) Stock
225148 FEMALE COUPLING $121.64 To Order
Photo Part No Description Price (each) Stock
236694 CLUTCH OIL HOSE $588.72 To Order
Photo Part No Description Price (each) Stock
199410 FILLER NECK $435.55 To Order
Photo Part No Description Price (each) Stock
10261060 COPPER WASHER D.12- 16 X 1.5MM $1.22 IN STOCK
Photo Part No Description Price (each) Stock
145992 DOWEL $66.19 To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.09 IN STOCK
Photo Part No Description Price (each) Stock
12643724 Washer 6.15-18x1.5 $1.42 IN STOCK
Photo Part No Description Price (each) Stock
980139927 ACTUATOR COVER KIT $72.32 To Order
View All

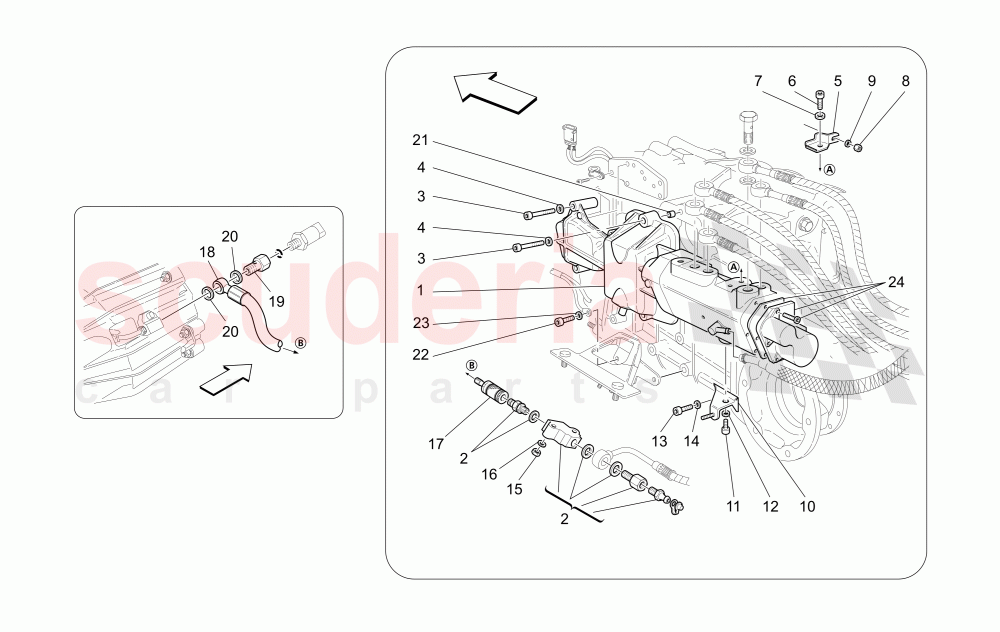

ACTUATION HYDRAULIC PARTS FOR F1 GEARBOX of Maserati Maserati GranTurismo (2011-2012) S Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 236033
F1 GEARBOX KIT 		$10,420.33 1
2 260542
QUICK DISCONNECT KIT 		$814.61 (10.4% off) 1
3 231621
Allen Screw M6 x 30 		$1.16 2
3 231622
SCREWM6X35 		$1.17 6
4 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5
IN STOCK 		$2.35 8
5 186776
ACTUATOR SUPPORT UPPER BRACKET 		$11.06 (3.6% off) 1
6 86768100
SCREW 		- 1 Enquire
7 12601374
WASHER D.8.40-15 X 0.8
D. 8,40-15X 0,8
IN STOCK 		$1.42 1
8 14048211
NUT 		$5.09 1
9 14499421
WASHER 		$1.56 1
10 199723
ACTUATOR SUPPORT LOWER BRACKET 		$13.26 (3.4% off) 1
11 14301924
SCREW 		$2.52 1
12 12601374
WASHER D.8.40-15 X 0.8
D. 8,40-15X 0,8
IN STOCK 		$1.42 1
13 14360024
SCREW 		$3.03 1
14 12601474
Wavy Washer 10mm
D.10,50-21X 1,0
IN STOCK 		$1.42 1
15 14039614
NUT
IN STOCK 		$1.34 2
16 11197774
WAVY WASHER D.6.4 X 12 X 1.2
IN STOCK 		$2.35 2
17 225148
FEMALE COUPLING 		$121.64 (4.3% off) 1
18 236694
CLUTCH OIL HOSE 		$588.72 1
19 199410
FILLER NECK 		$435.55 1
20 10261060
COPPER WASHER D.12- 16 X 1.5MM
IN STOCK 		$1.22 2
21 145992
DOWEL 		$66.19 (46.9% off) 2
22 248334
SCREW M6 X 14MM
IN STOCK 		$3.09 2
23 12643724
Washer 6.15-18x1.5
IN STOCK 		$1.42 2
24 980139927
ACTUATOR COVER KIT 		$72.32 1
