Maserati GranTurismo MC Stradale - Lines

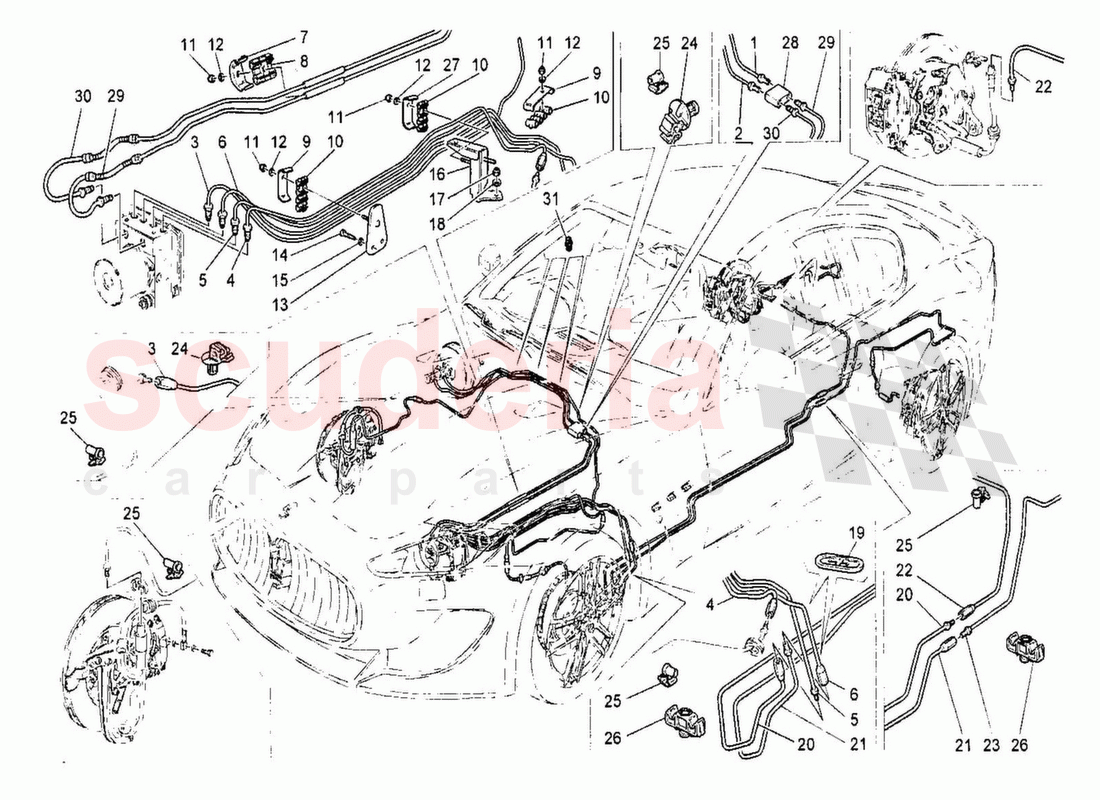

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	278812	Rigid Pipe From Pump to Union (MC1)	$151.72	To Order

Photo	Part No	Description	Price (each)	Stock
	278813	Rigid Pipe From Pump to Union (MC2)	$151.72	To Order

Photo	Part No	Description	Price (each)	Stock
	207434	RIGID PIPE FROM CONTROL UNIT TO RH CONNECTION	$45.72	To Order

Photo	Part No	Description	Price (each)	Stock
	252240	RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION	$22.66	To Order

Photo	Part No	Description	Price (each)	Stock
	207436	RIGID PIPE FROM CONTROL UNIT TO RH INTERMEDIATE PIPE	$18.96	To Order

Photo	Part No	Description	Price (each)	Stock
	207437	RIGID PIPE FROM CONTROL UNIT TO LH INTERMEDIATE PIPE	$18.96	To Order

Photo	Part No	Description	Price (each)	Stock
	193722	CLIP U-BOLT	$9.25	To Order

Photo	Part No	Description	Price (each)	Stock
	263269	CLIP	$4.70	To Order

Photo	Part No	Description	Price (each)	Stock
	200288	CLIP U-BOLT	$11.14	To Order

Photo	Part No	Description	Price (each)	Stock
	192276	CLIP	$4.67	To Order

Photo	Part No	Description	Price (each)	Stock
	14075611	NUT	$2.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	203822	BRACKET	$9.67	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	$1.86	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	204366	BRACKET	$38.92	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	$1.90	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14496584	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221727	WATER PIPE GASKET	$6.89	To Order

Photo	Part No	Description	Price (each)	Stock
	207440	RH INTERMEDIATE RIGID PIPE	$66.30	To Order

Photo	Part No	Description	Price (each)	Stock
	207447	F1 SENSOR SUPPORT	$209.23	To Order

Photo	Part No	Description	Price (each)	Stock
	227265	RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL	$47.12	To Order

Photo	Part No	Description	Price (each)	Stock
	194857	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	$142.79	To Order

Photo	Part No	Description	Price (each)	Stock
	192277	CLIP	$2.53	To Order
	279840	CLIP	$3.15	To Order

Photo	Part No	Description	Price (each)	Stock
	192279	CLIP	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	192278	CLIP	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	200288	CLIP U-BOLT	$11.14	To Order

Photo	Part No	Description	Price (each)	Stock
	208035	UNION	$89.24	To Order

Photo	Part No	Description	Price (each)	Stock
	234950	RIGID PIPE FROM UNION TO CONTROL UNIT (MC1)	$133.87	To Order

Photo	Part No	Description	Price (each)	Stock
	234948	RIGID PIPE FROM UNION TO CONTROL UNIT (MC2)	$133.87	To Order

Photo	Part No	Description	Price (each)	Stock
	186950	Clip	$1.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	278812	Rigid Pipe From Pump to Union (MC1)	278812 Rigid Pipe From Pump to Union (MC1)	$151.72	1
2	278813	Rigid Pipe From Pump to Union (MC2)	278813 Rigid Pipe From Pump to Union (MC2)	$151.72	1
3	207434	RIGID PIPE FROM CONTROL UNIT TO RH CONNECTION	207434 RIGID PIPE FROM CONTROL UNIT TO RH CONNECTION	$45.72 MSRP: ~~47.66~~ (4.1% off)	1
4	252240	RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION	252240 RIGID PIPE FROM CONTROL UNIT TO LH CONNECTION	$22.66 MSRP: ~~25.56~~ (11.3% off)	1
5	207436	RIGID PIPE FROM CONTROL UNIT TO RH INTERMEDIATE PIPE	207436 RIGID PIPE FROM CONTROL UNIT TO RH INTERMEDIATE PIPE	$18.96	1
6	207437	RIGID PIPE FROM CONTROL UNIT TO LH INTERMEDIATE PIPE	207437 RIGID PIPE FROM CONTROL UNIT TO LH INTERMEDIATE PIPE	$18.96 MSRP: ~~19.68~~ (3.7% off)	1
7	193722	CLIP U-BOLT	193722 CLIP U-BOLT	$9.25 MSRP: ~~10.70~~ (13.6% off)	3
8	263269	CLIP	263269 CLIP	$4.70	3
9	200288	CLIP U-BOLT	200288 CLIP U-BOLT	$11.14 MSRP: ~~11.47~~ (2.9% off)	3
10	192276	CLIP	192276 CLIP	$4.67	3
11	14075611	NUT IN STOCK	14075611 NUT IN STOCK	$2.16 MSRP: ~~2.33~~ (7.3% off)	4
12	12637824	WASHER IN STOCK	12637824 WASHER IN STOCK	$1.23	4
13	203822	BRACKET	203822 BRACKET	$9.67 MSRP: ~~9.92~~ (2.5% off)	1
14	10977624	SCREW	10977624 SCREW	$1.86	2
15	12637824	WASHER IN STOCK	12637824 WASHER IN STOCK	$1.23	2
16	204366	BRACKET	204366 BRACKET	$38.92	1
17	14040711	NUT M8 FLANGED IN STOCK	14040711 NUT M8 FLANGED IN STOCK	$1.90	1
18	14496584	Washer	14496584 Washer	-	1	Enquire
19	221727	WATER PIPE GASKET	221727 WATER PIPE GASKET	$6.89	2
20	207440	RH INTERMEDIATE RIGID PIPE	207440 RH INTERMEDIATE RIGID PIPE	$66.30	1
21	207447	F1 SENSOR SUPPORT	207447 F1 SENSOR SUPPORT	$209.23	1
22	227265	RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL	227265 RIGID PIPE FROM RH INTERMEDIATE PIPE TO RH REAR WHEEL	$47.12 MSRP: ~~50.98~~ (7.6% off)	1
23	194857	RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	194857 RIGID PIPE FROM LH INTERMEDIATE PIPE TO LH REAR WHEEL	$142.79	1
24	192277	CLIP	192277 CLIP	$2.53	3
24	279840	CLIP	279840 CLIP	$3.15	1
25	192279	CLIP	192279 CLIP	$1.76	5
26	192278	CLIP	192278 CLIP	$1.76	2
27	200288	CLIP U-BOLT	200288 CLIP U-BOLT	$11.14 MSRP: ~~11.47~~ (2.9% off)	1
28	208035	UNION	208035 UNION	$89.24	1
29	234950	RIGID PIPE FROM UNION TO CONTROL UNIT (MC1)	234950 RIGID PIPE FROM UNION TO CONTROL UNIT (MC1)	$133.87	1
30	234948	RIGID PIPE FROM UNION TO CONTROL UNIT (MC2)	234948 RIGID PIPE FROM UNION TO CONTROL UNIT (MC2)	$133.87	1
31	186950	Clip	186950 Clip	$1.16	3
