Name: FRONT UNDERCHASSIS
Rating: 4.2 (1 reviews)

View All

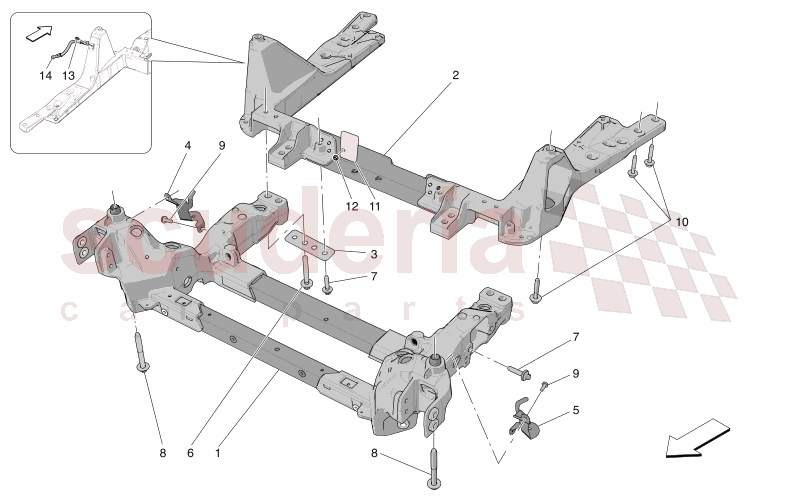

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670303961	FRONT UPPER BAR	$1,744.58	To Order

Photo	Part No	Description	Price (each)	Stock
	670300184	engine support	$924.36	To Order

Photo	Part No	Description	Price (each)	Stock
	670214589	BRACKET	$13.51	To Order

Photo	Part No	Description	Price (each)	Stock
	670213297	BRACKET	$15.05	To Order

Photo	Part No	Description	Price (each)	Stock
	670213298	BRACKET	$15.05	To Order

Photo	Part No	Description	Price (each)	Stock
	670007895	SCREW M12	$8.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675001345	SCREW	$2.32	To Order

Photo	Part No	Description	Price (each)	Stock
	670159122	SCREW	$13.91	To Order

Photo	Part No	Description	Price (each)	Stock
	675001117	SCREW	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	670159128	SCREW	$6.57	To Order

Photo	Part No	Description	Price (each)	Stock
	670300462	BRACKET	$4.94	To Order

Photo	Part No	Description	Price (each)	Stock
	675000183	NUT	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	670220446	SCREW	$3.49	To Order

Photo	Part No	Description	Price (each)	Stock
	670182103	GROUND LEAD	$31.40	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670303961	FRONT UPPER BAR	670303961 FRONT UPPER BAR	$1,744.58	1
2	670300184	engine support	670300184 engine support	$924.36	1
3	670214589	BRACKET	670214589 BRACKET	$13.51	1
4	670213297	BRACKET	670213297 BRACKET	$15.05	1
5	670213298	BRACKET	670213298 BRACKET	$15.05	1
6	670007895	SCREW M12 IN STOCK	670007895 SCREW M12 IN STOCK	$8.11	4
7	675001345	SCREW	675001345 SCREW	$2.32	4
8	670159122	SCREW	670159122 SCREW	$13.91	2
9	675001117	SCREW	675001117 SCREW	$1.16	4
10	670159128	SCREW	670159128 SCREW	$6.57	6
11	670300462	BRACKET	670300462 BRACKET	$4.94	1
12	675000183	NUT	675000183 NUT	$1.20	1
13	670220446	SCREW	670220446 SCREW	$3.49	1
14	670182103	GROUND LEAD	670182103 GROUND LEAD	$31.40	1

Front Underchassis

Maserati GranTurismo M189 FOLGORE AUTOMATIC 4WD BEV 560 kW
