Name: LINES
Rating: 4.0 (1 reviews)

View All

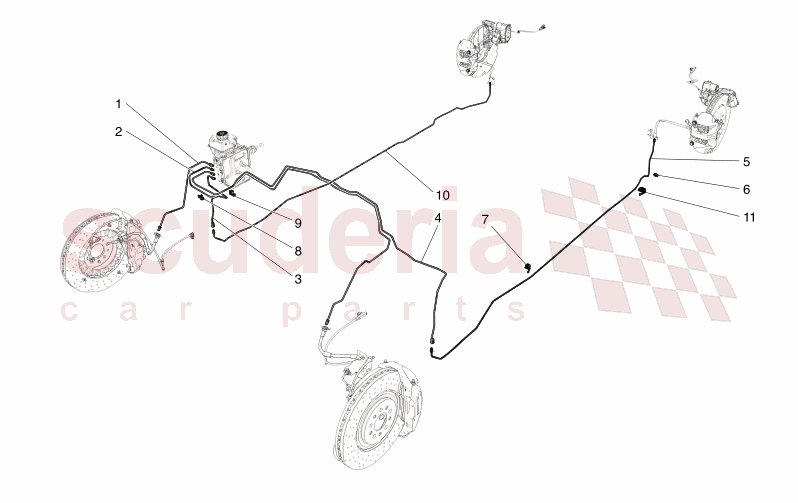

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670221043	BRAKE PIPE FRONT RH	$24.96	To Order

Photo	Part No	Description	Price (each)	Stock
	670221042	BRAKE PIPE ECU FRONT LH	$48.86	To Order

Photo	Part No	Description	Price (each)	Stock
	670221045	BRAKE PIPE RH	$31.86	To Order

Photo	Part No	Description	Price (each)	Stock
	670221044	BRAKE PIPE LH	$55.21	To Order

Photo	Part No	Description	Price (each)	Stock
	675000107	CLIP	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	675001251	CLIP	$1.59	To Order

Photo	Part No	Description	Price (each)	Stock
	675002276	FIXING CLIP	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	670005210	CLIP	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	670295591	BRAKE PIPE REAR RH	$37.20	To Order

Photo	Part No	Description	Price (each)	Stock
	675002306	CLIP	$2.45	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670221043	BRAKE PIPE FRONT RH	670221043 BRAKE PIPE FRONT RH	$24.96	1
2	670221042	BRAKE PIPE ECU FRONT LH	670221042 BRAKE PIPE ECU FRONT LH	$48.86	1
3	670221045	BRAKE PIPE RH	670221045 BRAKE PIPE RH	$31.86	1
4	670221044	BRAKE PIPE LH	670221044 BRAKE PIPE LH	$55.21	1
5	670295592	BRAKE PIPE REAR LH	670295592 BRAKE PIPE REAR LH	$37.20	1
5	670295591	BRAKE PIPE REAR RH	670295591 BRAKE PIPE REAR RH	$37.20	1
6	675000107	CLIP	675000107 CLIP	$1.03	2
7	675001251	CLIP	675001251 CLIP	$1.59	17
8	675002276	FIXING CLIP	675002276 FIXING CLIP	$1.94	1
9	670005210	CLIP	670005210 CLIP	$2.61	2
10	670295591	BRAKE PIPE REAR RH	670295591 BRAKE PIPE REAR RH	$37.20	1
11	675002306	CLIP	675002306 CLIP	$2.45	2

Lines

Maserati GranTurismo M189 MODENA AUTOMATIC 4WD 3.0 BT V6 490 HP
