Fuel Pumps And Connection Lines

Maserati GranTurismo M189 MODENA AUTOMATIC 4WD 3.0 BT V6 490 HP

Find Your Part

Maserati GranTurismo M189 MODENA AUTOMATIC 4WD 3.0 BT V6 490 HP - FUEL PUMPS AND CONNECTION LINES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670354863 KIT FUEL DELIVERY MODULE $1,265.37 To Order
Photo Part No Description Price (each) Stock
675001165 GASKET $31.26 To Order
Photo Part No Description Price (each) Stock
670160697 SCREW $18.30 To Order
Photo Part No Description Price (each) Stock
670219652 PIPE $69.88 To Order
Photo Part No Description Price (each) Stock
670296314 PIPE $169.53 To Order
Photo Part No Description Price (each) Stock
670158421 PIPE $50.24 To Order
Photo Part No Description Price (each) Stock
670293629 COVER $33.85 To Order
Photo Part No Description Price (each) Stock
670219410 BRACKET $27.85 To Order
Photo Part No Description Price (each) Stock
675001539 SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
670158422 PIPE $134.21 To Order
Photo Part No Description Price (each) Stock
675001240 FUEL PUMP ELECTRIC CONTROL UNIT $143.38 To Order
Photo Part No Description Price (each) Stock
670162222 BRACKET $11.27 To Order
Photo Part No Description Price (each) Stock
670162224 BRACKET $36.59 To Order
Photo Part No Description Price (each) Stock
670219639 BRACKET $8.87 To Order
Photo Part No Description Price (each) Stock
675000071 SCREW $1.76 To Order
Photo Part No Description Price (each) Stock
670051104 SCREW $2.35 To Order
Photo Part No Description Price (each) Stock
675000452 BLOCK $1.28 To Order
Photo Part No Description Price (each) Stock
675002301 SCREW $3.55 To Order
Photo Part No Description Price (each) Stock
675002241 NUT $1.23 To Order
Photo Part No Description Price (each) Stock
675000076 CLIP $0.92 IN STOCK
Photo Part No Description Price (each) Stock
670213366 CLIP $27.18 To Order
Photo Part No Description Price (each) Stock
670100118 CLIP $2.93 To Order
Photo Part No Description Price (each) Stock
670181261 BRACKET $32.79 To Order
Photo Part No Description Price (each) Stock
670160696 RING NUT $44.89 To Order
View All

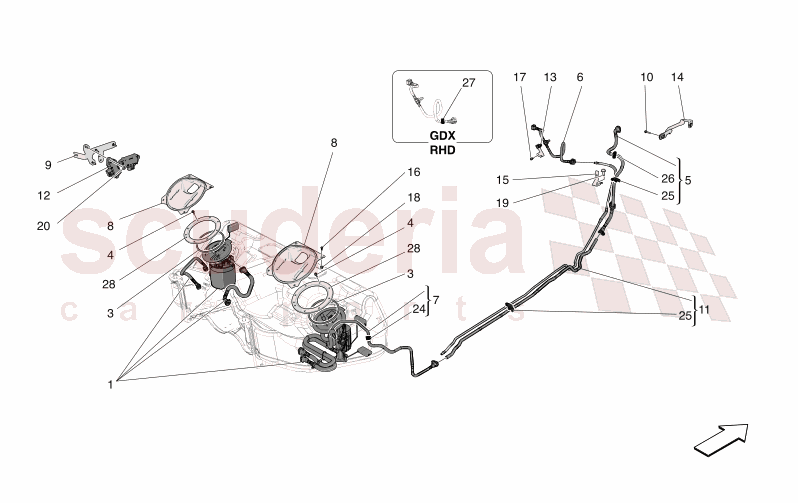

FUEL PUMPS AND CONNECTION LINES of Maserati Maserati GranTurismo M189 MODENA AUTOMATIC 4WD 3.0 BT V6 490 HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670354863
KIT FUEL DELIVERY MODULE 		$1,265.37 1
3 675001165
GASKET 		$31.26 2
4 670160697
SCREW 		$18.30 18
5 670219652
PIPE 		$69.88 1
6 670296314
PIPE 		$169.53 1
7 670158421
PIPE 		$50.24 1
8 670293629
COVER 		$33.85 2
9 670219410
BRACKET 		$27.85 1
10 675001539
SCREW 		$0.96 1
11 670158422
PIPE 		$134.21 1
12 675001240
FUEL PUMP ELECTRIC CONTROL UNIT 		$143.38 2
13 670162222
BRACKET 		$11.27 1
14 670162224
BRACKET 		$36.59 1
15 670219639
BRACKET 		$8.87 1
16 675000071
SCREW 		$1.76 1
17 670051104
SCREW 		$2.35 1
18 675000452
BLOCK 		$1.28 1
19 675002301
SCREW 		$3.55 1
20 675002241
NUT 		$1.23 6
24 675000076
CLIP
IN STOCK 		$0.92 2
25 670213366
CLIP 		$27.18 10
26 670100118
CLIP 		$2.93 1
27 670181261
BRACKET
AU UK JRH IN N8 UK3 GB; 		$32.79 1
28 670160696
RING NUT 		$44.89 2
