Name: LINES
Rating: 4.4 (1 reviews)

View All

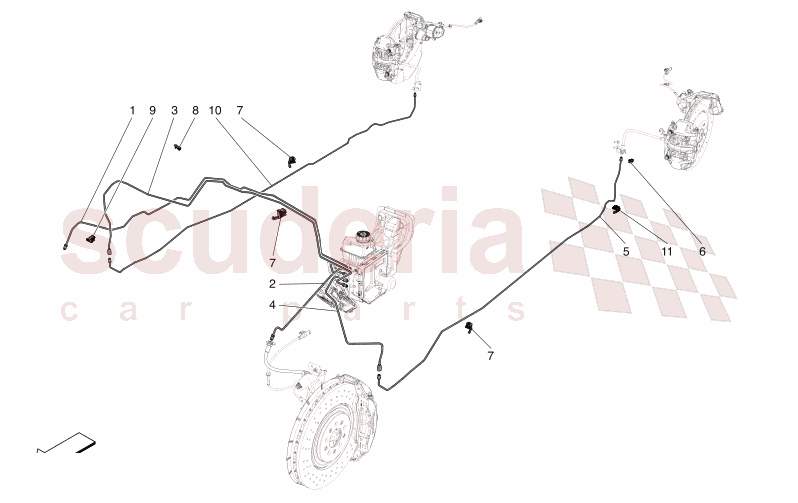

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670219187	hose	$41.45	To Order

Photo	Part No	Description	Price (each)	Stock
	670158699	BRAKE PIPE ECU FRONT LH	$13.37	To Order

Photo	Part No	Description	Price (each)	Stock
	670158701	BRAKE PIPE RH	$39.69	To Order

Photo	Part No	Description	Price (each)	Stock
	670158700	BRAKE PIPE LH	$15.99	To Order

Photo	Part No	Description	Price (each)	Stock
	670295592	BRAKE PIPE REAR LH	$37.20	To Order

Photo	Part No	Description	Price (each)	Stock
	675000107	CLIP	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	675001251	CLIP	$1.59	To Order

Photo	Part No	Description	Price (each)	Stock
	675002276	FIXING CLIP	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	670005210	CLIP	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	670295591	BRAKE PIPE REAR RH	$37.20	To Order

Photo	Part No	Description	Price (each)	Stock
	675002306	CLIP	$2.45	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	670219187	hose	670219187 hose	$41.45	1
2	670158699	BRAKE PIPE ECU FRONT LH	670158699 BRAKE PIPE ECU FRONT LH EU CN US JP ME KO N0;	$13.37	1
3	670158701	BRAKE PIPE RH	670158701 BRAKE PIPE RH EU CN US JP ME KO N0;	$39.69	1
4	670158700	BRAKE PIPE LH	670158700 BRAKE PIPE LH EU CN US JP ME KO N0;	$15.99	1
5	670295592	BRAKE PIPE REAR LH	670295592 BRAKE PIPE REAR LH	$37.20	1
6	675000107	CLIP	675000107 CLIP	$1.03	2
7	675001251	CLIP	675001251 CLIP	$1.59	17
8	675002276	FIXING CLIP	675002276 FIXING CLIP	$1.94	2
9	670005210	CLIP	670005210 CLIP	$2.61	1
10	670295591	BRAKE PIPE REAR RH	670295591 BRAKE PIPE REAR RH	$37.20	2
11	675002306	CLIP	675002306 CLIP	$2.45	2

Lines

Maserati GranCabrio M189 FOLGORE AUTOMATIC 4WD BEV 560 kW
