Name: CRANKCASE
Rating: 4.7 (1 reviews)

View All

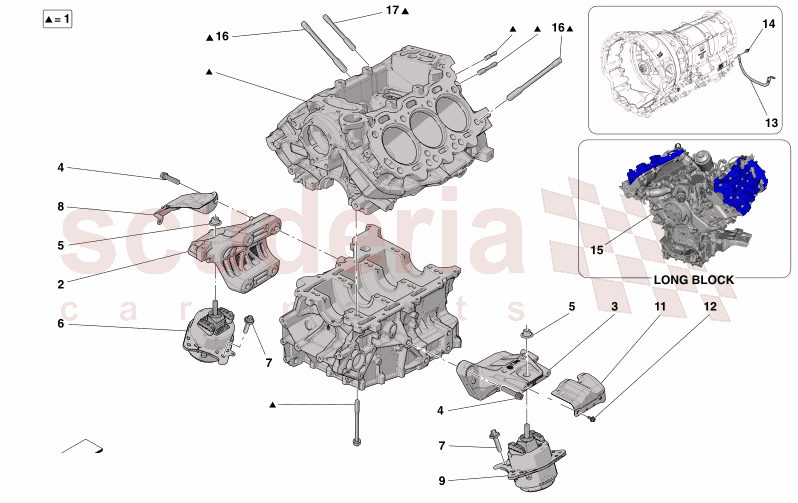

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670054187	CYLINDER BLOCK ASSEMBLY	$5,416.65	To Order

Photo	Part No	Description	Price (each)	Stock
	670053289	RH SUPPORT	$254.85	To Order

Photo	Part No	Description	Price (each)	Stock
	670053291	LH SUPPORT	$254.85	To Order

Photo	Part No	Description	Price (each)	Stock
	670051397	SCREW	$7.25	To Order

Photo	Part No	Description	Price (each)	Stock
	675001507	NUT	$3.49	To Order

Photo	Part No	Description	Price (each)	Stock
	670158914	SPACER	$311.29	To Order

Photo	Part No	Description	Price (each)	Stock
	675001345	SCREW	$2.32	To Order

Photo	Part No	Description	Price (each)	Stock
	670158513	SHILD	$49.10	To Order

Photo	Part No	Description	Price (each)	Stock
	670158915	SPACER	$311.29	To Order

Photo	Part No	Description	Price (each)	Stock
	670158514	SHILD	$49.56	To Order

Photo	Part No	Description	Price (each)	Stock
	675001477	SCREW	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	670176313	SCREW	$4.41	To Order

Photo	Part No	Description	Price (each)	Stock
	670054815	LONG BLOCK ENGINE M189	$19,148.83	To Order

Photo	Part No	Description	Price (each)	Stock
	670050011	STUD	$22.73	To Order

Photo	Part No	Description	Price (each)	Stock
	670050124	STUD	$22.28	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	670054346	ENGINE CPL V6 M189	670054346 ENGINE CPL V6 M189	$38,480.91	1
1	670054187	CYLINDER BLOCK ASSEMBLY	670054187 CYLINDER BLOCK ASSEMBLY	$5,416.65	1
2	670053289	RH SUPPORT	670053289 RH SUPPORT	$254.85	1
3	670053291	LH SUPPORT	670053291 LH SUPPORT	$254.85	1
4	670051397	SCREW	670051397 SCREW	$7.25	8
5	675001507	NUT	675001507 NUT	$3.49	2
6	670158914	SPACER	670158914 SPACER	$311.29	1
7	675001345	SCREW	675001345 SCREW	$2.32	6
8	670158513	SHILD	670158513 SHILD	$49.10	1
9	670158915	SPACER	670158915 SPACER	$311.29	1
11	670158514	SHILD	670158514 SHILD	$49.56	1
12	675001477	SCREW	675001477 SCREW	$0.83	7
13	675007373	CABLE FOR ENGINE-FRAME EARTH	675007373 CABLE FOR ENGINE-FRAME EARTH Bespoke Assembly Number 8002287 - 99999999;	$29.00	1
13	675001705	CABLE FOR ENGINE-FRAME EARTH	675001705 CABLE FOR ENGINE-FRAME EARTH WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 0 - 8002286;	$28.61	1
14	670176313	SCREW	670176313 SCREW	$4.41	1
15	670054815	LONG BLOCK ENGINE M189	670054815 LONG BLOCK ENGINE M189	$19,148.83	1
16	670050011	STUD	670050011 STUD	$22.73	14
17	670050124	STUD	670050124 STUD	$22.28	2

Crankcase

Maserati GranCabrio M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP
