Crank Mechanism

Maserati Ghibli (2017+) S

Find Your Part

Maserati Ghibli (2017+) S - CRANK MECHANISM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
323957 CRANKSHAFT $2,182.33 To Order
868821 CRANKSHAFT $2,623.25 IN STOCK
Photo Part No Description Price (each) Stock
336808 UPPER HALF-BEARING $22.73 IN STOCK
275618 UPPER HALF-BEARING $24.93 IN STOCK
275617 UPPER HALF-BEARING $24.93 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
336810 LOWER HALF-BEARING $22.73 IN STOCK
275621 LOWER HALF-BEARING $24.93 IN STOCK
275620 LOWER HALF-BEARING $24.93 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
304033 CRANKSHAFT SHIM WASHER $20.32 To Order
Photo Part No Description Price (each) Stock
279503 TAB $12.42 To Order
Photo Part No Description Price (each) Stock
280609 TORSION DAMPER $297.49 To Order
Photo Part No Description Price (each) Stock
305711 WASHER $24.32 IN STOCK
282723 WASHER $24.31 To Order
Photo Part No Description Price (each) Stock
305704 SCREW FOR DAMPER FIXING $98.57 IN STOCK
305704 SCREW FOR DAMPER FIXING $98.57 IN STOCK
Photo Part No Description Price (each) Stock
287177 OIL SCRAPER RING $61.78 IN STOCK
Photo Part No Description Price (each) Stock
275339 GASKET, CRANK SHAFT $32.20 IN STOCK
Photo Part No Description Price (each) Stock
318342 LH SIDE ENGINE PISTON WITH RINGS $404.12 IN STOCK
Photo Part No Description Price (each) Stock
326368 CONNECTING ROD SHAFT AND CAP ASSEMBLY $203.26 IN STOCK
Photo Part No Description Price (each) Stock
318341 RH SIDE ENGINE PISTON WITH RINGS $393.48 To Order
Photo Part No Description Price (each) Stock
286954 SEAL RING $83.80 IN STOCK
Photo Part No Description Price (each) Stock
296139 SEAL RING $30.75 IN STOCK
Photo Part No Description Price (each) Stock
282814 SPACER $230.21 To Order
Photo Part No Description Price (each) Stock
270275 LOCK RING $11.50 To Order
Photo Part No Description Price (each) Stock
270274 PIN $35.05 To Order
Photo Part No Description Price (each) Stock
280576 CONNECTING ROD TIGHTENING SCREW $66.21 To Order
Photo Part No Description Price (each) Stock
280327 CONNECTING ROD HALF-BEARING $16.62 IN STOCK
280326 CONNECTING ROD HALF-BEARING $16.62 IN STOCK
280325 CONNECTING ROD HALF-BEARING $16.62 IN STOCK
Photo Part No Description Price (each) Stock
283507 CENTRING PIN FOR CONNECTING RODS $1.43 To Order
292751 CENTRING PIN FOR CONNECTING RODS $34.55 To Order
Photo Part No Description Price (each) Stock
303031 PISTONS COOLING NOZZLE $62.14 To Order
Photo Part No Description Price (each) Stock
294780 SCREWM5X16 $2.51 To Order
Photo Part No Description Price (each) Stock
310101 DIAMOND WASHER $67.93 ARRIVING SOON
Photo Part No Description Price (each) Stock
310102 DIAMOND WASHER $65.70 IN STOCK
Photo Part No Description Price (each) Stock
281836 SCREWM6X18 $23.16 To Order
View All

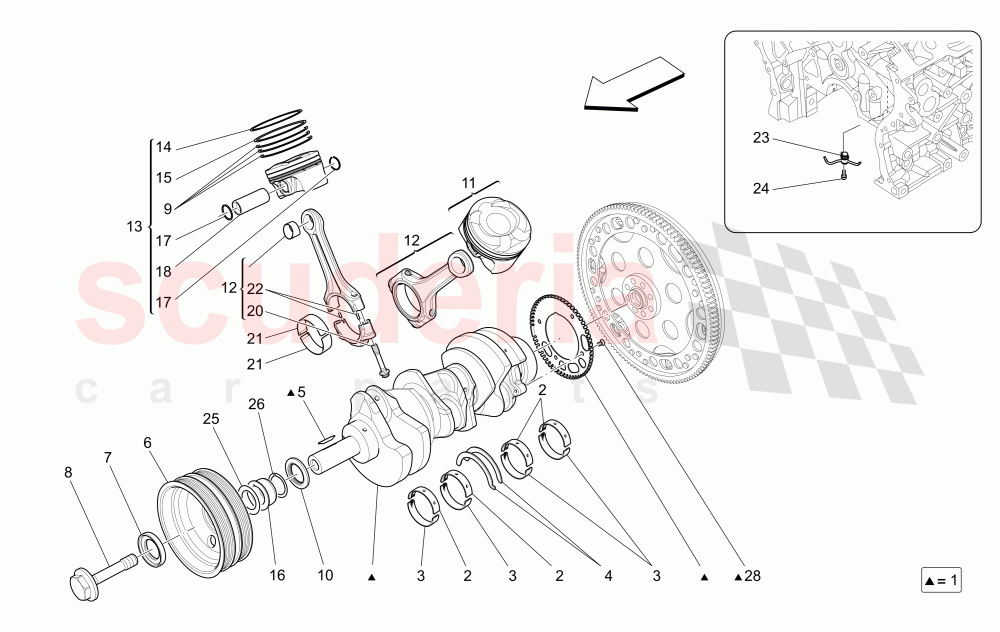

CRANK MECHANISM of Maserati Maserati Ghibli (2017+) S Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 323957
CRANKSHAFT
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$2,182.33 1
1 868821
CRANKSHAFT
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$2,623.25 1
2 336808
UPPER HALF-BEARING
Black - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$22.73 4
2 275618
UPPER HALF-BEARING
Yellow - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$24.93 4
2 275617
UPPER HALF-BEARING
Blue - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$24.93 4
2 280323
UPPER HALF-BEARING
Red - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$24.93 4
2 336809
UPPER HALF-BEARING
Brown - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK 		$24.26 4
3 336810
LOWER HALF-BEARING
Black - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$22.73 4
3 275621
LOWER HALF-BEARING
Yellow - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$24.93 4
3 275620
LOWER HALF-BEARING
Blue - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$24.93 4
3 280321
LOWER HALF-BEARING
Red - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$24.93 4
3 336811
LOWER HALF-BEARING
Brown - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK 		$24.26 4
4 304033
CRANKSHAFT SHIM WASHER
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$20.32 2
5 279503
TAB
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$12.42 1
6 280609
TORSION DAMPER
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$297.49 1
7 305711
WASHER
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$24.32 1
7 282723
WASHER
If not available, please order new parts 305704 and 305711 		$24.31 1
8 305704
SCREW FOR DAMPER FIXING
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$98.57 1
8 305704
SCREW FOR DAMPER FIXING
If not available, please order new parts 305704 and 305711
IN STOCK 		$98.57 1
9 287177
OIL SCRAPER RING
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$61.78 18
10 275339
GASKET, CRANK SHAFT
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$32.20 1
11 318342
LH SIDE ENGINE PISTON WITH RINGS
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$404.12 3
12 326368
CONNECTING ROD SHAFT AND CAP ASSEMBLY
IN STOCK 		$203.26 6
13 318341
RH SIDE ENGINE PISTON WITH RINGS
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$393.48 3
14 286954
SEAL RING
1st groove - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$83.80 6
15 296139
SEAL RING
2nd groove - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$30.75 6
16 282814
SPACER
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$230.21 1
17 270275
LOCK RING
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$11.50 12
18 270274
PIN
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$35.05 6
20 280576
CONNECTING ROD TIGHTENING SCREW
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$66.21 12
21 280327
CONNECTING ROD HALF-BEARING
Blue - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$16.62 12
21 280326
CONNECTING ROD HALF-BEARING
Red - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$16.62 12
21 280325
CONNECTING ROD HALF-BEARING
Pink - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$16.62 12
22 283507
CENTRING PIN FOR CONNECTING RODS 		$1.43 12
22 292751
CENTRING PIN FOR CONNECTING RODS 		$34.55 12
23 303031
PISTONS COOLING NOZZLE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$62.14 3
24 294780
SCREWM5X16
M5X16 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$2.51 3
25 310101
DIAMOND WASHER
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
ARRIVING SOON 		$67.93 1
26 310102
DIAMOND WASHER
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$65.70 1
28 281836
SCREWM6X18
M6X18 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$23.16 4
