A/c Unit: Engine Compartment Devices (Available With: "spyder 90Th Anniversary" Version)

Maserati 4200 Spyder (2005-2007) CC

Find Your Part

Maserati 4200 Spyder (2005-2007) CC - A/C UNIT: ENGINE COMPARTMENT DEVICES (Available with: "Spyder 90th Anniversary" Version)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
189215 AC Condenser $560.78 To Order
181106 A.C CONDENSER $597.46 To Order
Photo Part No Description Price (each) Stock
263172 AIR CONDITIONING COMPRESSOR $1,673.68 To Order
Photo Part No Description Price (each) Stock
141496 SPACER $13.31 To Order
Photo Part No Description Price (each) Stock
66722700 PIPE FROM EVAPOURATOR TO UNION $189.92 To Order
66244200 PIPE FROM UNION TO EVAPORATOR $142.43 To Order
Photo Part No Description Price (each) Stock
67813600 PIPE FROM UNION TO COMPRESSOR $83.96 To Order
Photo Part No Description Price (each) Stock
67813400 PIPE FROM COMPRESSOR TO CONDENSER $197.83 To Order
Photo Part No Description Price (each) Stock
67193700 PIPE FROM CONDENSER TO FILTER $147.39 To Order
66063100 PIPE FROM CONDENSER TO FILTER $188.94 To Order
Photo Part No Description Price (each) Stock
66063200 PIPE FROM FILTER TO UNION $118.71 To Order
66765800 PIPE FROM FILTER TO UNION $108.81 To Order
Photo Part No Description Price (each) Stock
66063300 PIPE FROM EVAPOURATOR TO UNION $147.39 To Order
66765700 PIPE FROM UNION TO EVAPORATOR $265.11 To Order
Photo Part No Description Price (each) Stock
67110900 Dehydrator Filter $101.88 To Order
Photo Part No Description Price (each) Stock
66247100 COMPLETE DEHYDRATING FILTER SUPPORT BRACKET $20.17 To Order
Photo Part No Description Price (each) Stock
14058421 NUT $2.15 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.36 IN STOCK
Photo Part No Description Price (each) Stock
186196 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11612626 SCREW $3.59 To Order
Photo Part No Description Price (each) Stock
14307224 SCREW $4.03 IN STOCK
Photo Part No Description Price (each) Stock
46476438 PRESSOSTAT $104.85 To Order
Photo Part No Description Price (each) Stock
11193874 WASHERD.8.4-16X1.4 $1.42 IN STOCK
Photo Part No Description Price (each) Stock
14059214 Nut Flanged M6 $1.34 IN STOCK
Photo Part No Description Price (each) Stock
15699804 SCREW $1.86 IN STOCK
15698204 SCREW $1.91 To Order
Photo Part No Description Price (each) Stock
175428 SCREW M8 X 120 X 1.25 $10.86 To Order
Photo Part No Description Price (each) Stock
67641400 O.R. GASKET $4.82 To Order
Photo Part No Description Price (each) Stock
149694 FIXING BRACKET $12.45 To Order
Photo Part No Description Price (each) Stock
14307721 SCREW $2.69 IN STOCK
Photo Part No Description Price (each) Stock
11198579 WASHER $1.38 To Order
Photo Part No Description Price (each) Stock
14305821 SCREW M6 X 40 $1.81 IN STOCK
Photo Part No Description Price (each) Stock
193551 R.H. UPPER BRACKET $6.66 To Order
Photo Part No Description Price (each) Stock
193552 L.H. UPPER BRACKET $23.62 To Order
Photo Part No Description Price (each) Stock
193553 RH LOWER BRACKET $5.26 To Order
Photo Part No Description Price (each) Stock
193554 LH LOWER BRACKET $5.26 To Order
Photo Part No Description Price (each) Stock
165137 SCREW $1.91 To Order
Photo Part No Description Price (each) Stock
193556 RUBBER PROFILE $2.25 To Order
Photo Part No Description Price (each) Stock
67813500 PIPE FROM COMPRESSOR TO UNION $124.63 To Order
Photo Part No Description Price (each) Stock
67193600 PIPE FROMUNION TO CONDENSER $161.23 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $1.17 To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.60 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $1.23 To Order
Photo Part No Description Price (each) Stock
67085400 O Ring D18 $25.73 IN STOCK
Photo Part No Description Price (each) Stock
82068100 O-Ring D.25 Enquire To Order
Photo Part No Description Price (each) Stock
67641500 O.R. GASKET $3.39 To Order
Photo Part No Description Price (each) Stock
67641000 O.R. GASKET $3.35 To Order
Photo Part No Description Price (each) Stock
67641100 O.R. GASKET $3.39 To Order
Photo Part No Description Price (each) Stock
67641200 O.R. GASKET $4.17 To Order
Photo Part No Description Price (each) Stock
67641300 O.R. GASKET $2.82 To Order
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH $1.59 To Order
View All

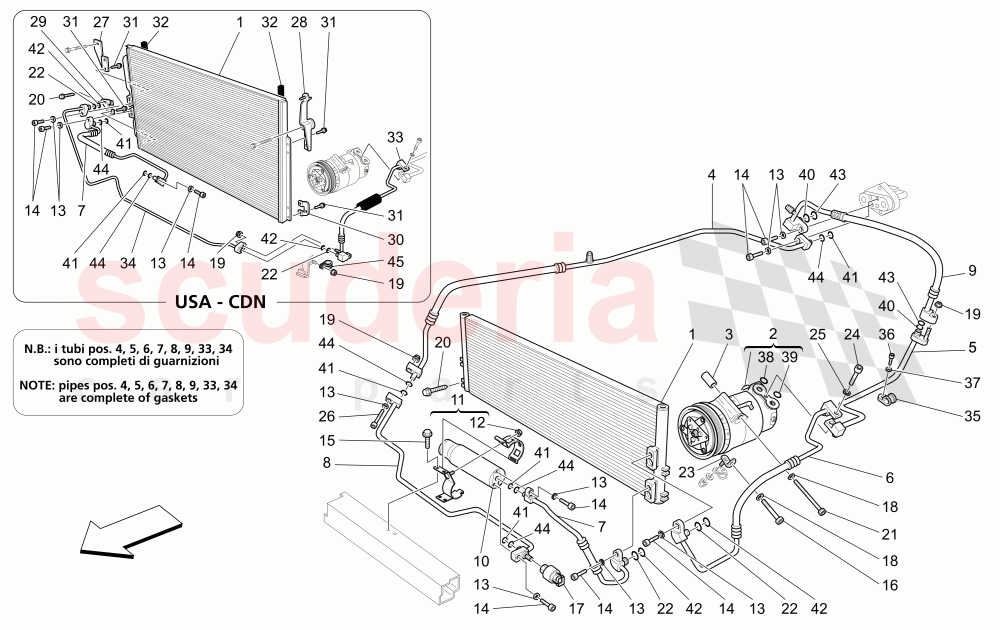

A/C UNIT: ENGINE COMPARTMENT DEVICES (Available with: "Spyder 90th Anniversary" Version) of Maserati Maserati 4200 Spyder (2005-2007) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 189215
AC Condenser
Valid for USA and CDN 		$560.78 (11.6% off) 1
1 181106
A.C CONDENSER
Not for USA and CDN 		$597.46 (14% off) 1
2 263172
AIR CONDITIONING COMPRESSOR 		$1,673.68 1
3 141496
SPACER 		$13.31 1
4 66722700
PIPE FROM EVAPOURATOR TO UNION
Valid for RHD 		$189.92 (16.8% off) 1
4 66244200
PIPE FROM UNION TO EVAPORATOR
Not for RHD 		$142.43 1
5 67813600
PIPE FROM UNION TO COMPRESSOR 		$83.96 1
6 67813400
PIPE FROM COMPRESSOR TO CONDENSER
Not for USA and CDN 		$197.83 1
7 67193700
PIPE FROM CONDENSER TO FILTER
Valid for USA and CDN 		$147.39 (9.9% off) 1
7 66063100
PIPE FROM CONDENSER TO FILTER
Not for USA and CDN 		$188.94 (17.7% off) 1
8 66063200
PIPE FROM FILTER TO UNION
Not for RHD 		$118.71 (9.2% off) 1
8 66765800
PIPE FROM FILTER TO UNION
Valid for RHD 		$108.81 (10.5% off) 1
9 66063300
PIPE FROM EVAPOURATOR TO UNION
Not for RHD 		$147.39 1
9 66765700
PIPE FROM UNION TO EVAPORATOR
Valid for RHD 		$265.11 (16.8% off) 1
10 67110900
Dehydrator Filter 		$101.88 (30% off) 1
11 66247100
COMPLETE DEHYDRATING FILTER SUPPORT BRACKET 		$20.17 (14.7% off) 1
12 14058421
NUT 		$2.15 1
13 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5
IN STOCK 		$2.36 7
14 186196
SCREW 		- 6 Enquire
15 11612626
SCREW 		$3.59 (32.9% off) 4
16 14307224
SCREW
M8X90
IN STOCK 		$4.03 2
17 46476438
PRESSOSTAT 		$104.85 (16.9% off) 1
18 11193874
WASHERD.8.4-16X1.4
D.8.4-16X1.4
IN STOCK 		$1.42 3
19 14059214
Nut Flanged M6
M6 (Quantity 3 for cars USA and CDN)
IN STOCK 		$1.34 2
20 15699804
SCREW
Valid for USA and CDN
IN STOCK 		$1.86 2
20 15698204
SCREW
Not for USA and CDN 		$1.91 4
21 175428
SCREW M8 X 120 X 1.25 		$10.86 1
22 67641400
O.R. GASKET 		$4.82 2
23 149694
FIXING BRACKET 		$12.45 1
24 14307721
SCREW
IN STOCK 		$2.69 (41.1% off) 1
25 11198579
WASHER 		$1.38 (82.6% off) 1
26 14305821
SCREW M6 X 40
M6X40
IN STOCK 		$1.81 1
27 193551
R.H. UPPER BRACKET
Valid for USA and CDN 		$6.66 (13.3% off) 1
28 193552
L.H. UPPER BRACKET
Valid for USA and CDN 		$23.62 (13.9% off) 1
29 193553
RH LOWER BRACKET
Valid for USA and CDN 		$5.26 (14.2% off) 1
30 193554
LH LOWER BRACKET
Valid for USA and CDN 		$5.26 (14.2% off) 1
31 165137
SCREW
Valid for USA and CDN 		$1.91 (18% off) 8
32 193556
RUBBER PROFILE
Valid for USA and CDN 		$2.25 (3.4% off) 2
33 67813500
PIPE FROM COMPRESSOR TO UNION
Valid for USA and CDN 		$124.63 (26.4% off) 1
34 67193600
PIPE FROMUNION TO CONDENSER
Valid for USA and CDN 		$161.23 (27.5% off) 1
35 10441590
BRACKET WITH SHEATH 		$1.17 1
36 231617
SCREW M6 X 18
IN STOCK 		$2.60 1
37 127494
WASHER 		$1.23 1
38 67085400
O Ring D18
IN STOCK 		$25.73 1
39 82068100
O-Ring D.25 		- 1 Enquire
40 67641500
O.R. GASKET 		$3.39 (12.6% off) 2
41 67641000
O.R. GASKET
(Quantity 5 for cars USA and CDN) 		$3.35 (13.7% off) 4
42 67641100
O.R. GASKET 		$3.39 (12.6% off) 2
43 67641200
O.R. GASKET 		$4.17 (8.8% off) 2
44 67641300
O.R. GASKET
(Quantity 5 for cars USA and CDN) 		$2.82 (9.3% off) 4
45 10441690
BRACKET WITH SHEATH 		$1.59 (32.6% off) 1
