Abs System: Control Unit - Brake Booster

Maserati 3200 GT / Assetto Corsa

Find Your Part

Maserati 3200 GT / Assetto Corsa - ABS SYSTEM: CONTROL UNIT - BRAKE BOOSTER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
383800316 ABS-ASR COMPLETE CONTROL UNIT $4,711.76 To Order
Photo Part No Description Price (each) Stock
13125370 STRIP COLLAR $1.57 To Order
Photo Part No Description Price (each) Stock
384300375 ABSR UNIT GUARD $212.26 To Order
Photo Part No Description Price (each) Stock
14075811 NUT $2.36 To Order
Photo Part No Description Price (each) Stock
183484 “BRAKE SERVO 10”” WITH PUMP 1”” AND PUSHROD” $446.07 To Order
189365 “BRAKE SERVO 10”” WITH PUMP 1”” AND PUSHROD” $383.63 To Order
Photo Part No Description Price (each) Stock
387400304 RUBBER GASKET $3.36 To Order
Photo Part No Description Price (each) Stock
14304824 SCREW $2.15 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.36 IN STOCK
Photo Part No Description Price (each) Stock
12643724 Washer 6.15-18x1.5 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
154309 BRAKE PRESSURE SWITCH $35.33 To Order
14325801 TAPERED THREADED CAP 10X1 $1.11 To Order
Photo Part No Description Price (each) Stock
10104661 3-WAY UNION $8.58 To Order
Photo Part No Description Price (each) Stock
387400326 SPACER $3.44 To Order
Photo Part No Description Price (each) Stock
387400325 BLOCK FOR BRANCH BUNDY REAR BRAKES $41.11 To Order
Photo Part No Description Price (each) Stock
383800310 ABS CONTROL UNIT SECURING U BOLT $5.33 To Order
Photo Part No Description Price (each) Stock
383801116 ABS CONTROL UNIT SUPPORT $87.36 To Order
383800116 ABS CONTROL UNIT SUPPORT $82.00 To Order
Photo Part No Description Price (each) Stock
377490312 PLUG $3.81 To Order
Photo Part No Description Price (each) Stock
387401165 BRAKE OIL TANK SECURING BRACKET ASSY $35.10 To Order
387410159 BRAKE OIL TANK SECURING BRACKET ASSY $24.11 To Order
Photo Part No Description Price (each) Stock
379290721 CLIP $1.86 To Order
Photo Part No Description Price (each) Stock
387410104 BRAKE PUMP TANK $16.72 To Order
191008 BRAKE PUMP TANK $23.62 To Order
Photo Part No Description Price (each) Stock
10523401 WASHER $1.76 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.34 IN STOCK
Photo Part No Description Price (each) Stock
13120270 CLAMP $3.19 IN STOCK
Photo Part No Description Price (each) Stock
19073089 BRAKE FLUID RESERVOIR RUBBER HOSE $15.01 IN STOCK
387401311 BRAKE FLUID RESERVOIR RUBBER HOSE $49.12 To Order
Photo Part No Description Price (each) Stock
19072689 BRAKE FLUID RESERVOIR RUBBER HOSE $2.20 To Order
19072989 BRAKE FLUID RESERVOIR RUBBER HOSE $3.68 To Order
Photo Part No Description Price (each) Stock
183478 UNION $8.84 To Order
Photo Part No Description Price (each) Stock
387400303 RUBBER GASKET $2.53 To Order
Photo Part No Description Price (each) Stock
387401170 UNION $5.39 To Order
387405170 UNION $3.71 To Order
Photo Part No Description Price (each) Stock
367402309 GASKET $2.25 To Order
Photo Part No Description Price (each) Stock
387400300 BRAKE SERVO CAP $23.43 To Order
387401300 BRAKE SERVO CAP $22.76 To Order
Photo Part No Description Price (each) Stock
136110090 WASHER $1.57 To Order
Photo Part No Description Price (each) Stock
14059314 NUT $1.20 To Order
Photo Part No Description Price (each) Stock
183485 BRAKES PUMP $413.36 To Order
View All

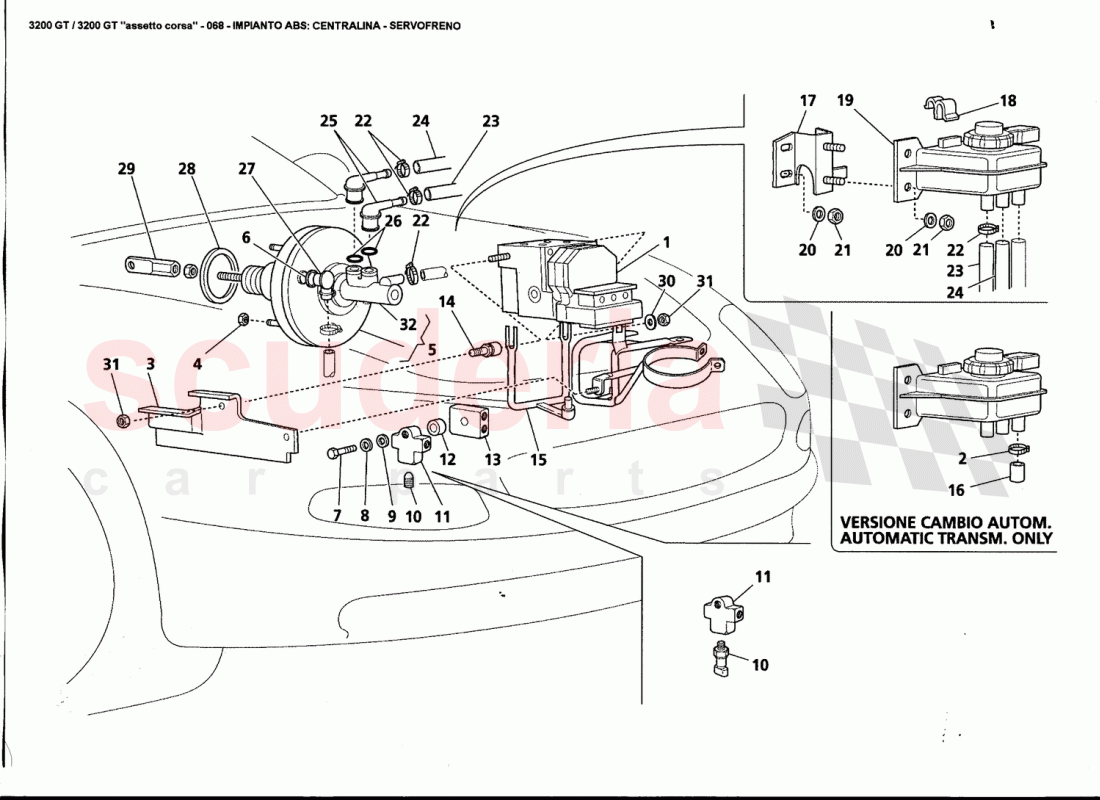

ABS SYSTEM: CONTROL UNIT - BRAKE BOOSTER of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 383800316
ABS-ASR COMPLETE CONTROL UNIT 		$4,711.76 1
2 13125370
STRIP COLLAR
Valid for Automatic Trasmission 		$1.57 1
3 384300375
ABSR UNIT GUARD
Only GS 		$212.26 1
4 14075811
NUT 		$2.36 4
5 183484
“BRAKE SERVO 10”” WITH PUMP 1”” AND PUSHROD”
Standard 		$446.07 1
5 189365
“BRAKE SERVO 10”” WITH PUMP 1”” AND PUSHROD”
Optional / Racing trim 		$383.63 1
6 387400304
RUBBER GASKET 		$3.36 (13.4% off) 1
7 14304824
SCREW 		$2.15 1
8 11197774
WAVY WASHER D.6.4 X 12 X 1.2
IN STOCK 		$2.36 1
9 12643724
Washer 6.15-18x1.5
IN STOCK 		$1.43 1
10 154309
BRAKE PRESSURE SWITCH
Optional 		$35.33 1
10 14325801
TAPERED THREADED CAP 10X1
Standard 		$1.11 1
11 10104661
3-WAY UNION 		$8.58 1
12 387400326
SPACER 		$3.44 1
13 387400325
BLOCK FOR BRANCH BUNDY REAR BRAKES 		$41.11 1
14 383800310
ABS CONTROL UNIT SECURING U BOLT 		$5.33 1
15 383801116
ABS CONTROL UNIT SUPPORT
Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 		$87.36 1
15 383800116
ABS CONTROL UNIT SUPPORT
Valid for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 		$82.00 1
16 377490312
PLUG
Valid for Automatic Trasmission 		$3.81 1
17 387401165
BRAKE OIL TANK SECURING BRACKET ASSY
Only GS 		$35.10 1
17 387410159
BRAKE OIL TANK SECURING BRACKET ASSY
Only GD- 		$24.11 1
18 379290721
CLIP 		$1.86 1
19 387410104
BRAKE PUMP TANK
Only GD 		$16.72 1
19 191008
BRAKE PUMP TANK
Only GS 		$23.62 1
20 10523401
WASHER 		$1.76 4
21 14039614
NUT
IN STOCK 		$1.34 4
22 13120270
CLAMP
IN STOCK 		$3.19 4
23 19073089
BRAKE FLUID RESERVOIR RUBBER HOSE
Only GD
IN STOCK 		$15.01 1
23 387401311
BRAKE FLUID RESERVOIR RUBBER HOSE
Only GS 		$49.12 1
24 19072689
BRAKE FLUID RESERVOIR RUBBER HOSE
Only GS 		$2.20 1
24 19072989
BRAKE FLUID RESERVOIR RUBBER HOSE
Only GD 		$3.68 1
25 183478
UNION 		$8.84 2
26 387400303
RUBBER GASKET 		$2.53 2
27 387401170
UNION
Valid for car without Kaiser valve 		$5.39 (12.9% off) 1
27 387405170
UNION
Valid for car with Kaiser valve 		$3.71 1
28 367402309
GASKET 		$2.25 (3.4% off) 2
29 387400300
BRAKE SERVO CAP
Only GD 		$23.43 1
29 387401300
BRAKE SERVO CAP
Only GS 		$22.76 1
30 136110090
WASHER 		$1.57 1
31 14059314
NUT 		$1.20 1
32 183485
BRAKES PUMP 		$413.36 1
