Maserati 3200 GT / Assetto Corsa - CYLINDER HEAD, RH FRAME

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
585000002 RH CYLINDER HEAD $1,202.41 To Order
585000002 RH CYLINDER HEAD $1,202.41 To Order
Photo Part No Description Price (each) Stock
475005401 NUT $16.94 To Order
Photo Part No Description Price (each) Stock
RN97853 FLAT WASHER Enquire To Order
Photo Part No Description Price (each) Stock
585007602 RH CYLINDER HEAD FRAME $1,378.45 To Order
Photo Part No Description Price (each) Stock
479000700 FRONT COVER $105.03 To Order
Photo Part No Description Price (each) Stock
475003000 CENTRING RING $17.72 To Order
Photo Part No Description Price (each) Stock
479001400 HEAD REAR COVER RH $136.45 To Order
Photo Part No Description Price (each) Stock
585008801 HEAD UPPER COVER RH $146.25 To Order
Photo Part No Description Price (each) Stock
479008001 OIL VENT UNION $3.77 To Order
Photo Part No Description Price (each) Stock
310620369 DOWEL $3.12 To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.58 IN STOCK
Photo Part No Description Price (each) Stock
479001500 THREADED ROD $55.57 To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 $2.58 IN STOCK
Photo Part No Description Price (each) Stock
585002400 OIL ADJUSTMENT DOWEL $3.74 To Order
Photo Part No Description Price (each) Stock
GRN83302 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
BN96601 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
585410200 STUD $21.79 To Order
Photo Part No Description Price (each) Stock
10393020 PLUG $1.75 To Order
Photo Part No Description Price (each) Stock
GRN96618 DOWEL Enquire To Order
Photo Part No Description Price (each) Stock
573003300 STUD BOLT $51.18 To Order
Photo Part No Description Price (each) Stock
14306424 SCREW M8 X 25 $2.19 IN STOCK
Photo Part No Description Price (each) Stock
14306924 SCREWM8X50 $2.58 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $1.41 IN STOCK
Photo Part No Description Price (each) Stock
14305920 SCREW $1.55 To Order
Photo Part No Description Price (each) Stock
14496400 SPRING WASHER $1.22 To Order
Photo Part No Description Price (each) Stock
14306424 SCREW M8 X 25 $2.19 IN STOCK
Photo Part No Description Price (each) Stock
311053307 WASHER $1.75 To Order
Photo Part No Description Price (each) Stock
14305620 SCREW $1.55 To Order
Photo Part No Description Price (each) Stock
479005800 WASHER $1.11 To Order
Photo Part No Description Price (each) Stock
311820308 DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.58 IN STOCK
Photo Part No Description Price (each) Stock
585002400 OIL ADJUSTMENT DOWEL $3.74 To Order
Photo Part No Description Price (each) Stock
585005500 FLANGE $134.06 To Order
Photo Part No Description Price (each) Stock
172303 GASKET $2.51 To Order
Photo Part No Description Price (each) Stock
14058429 NUT $1.75 To Order
Photo Part No Description Price (each) Stock
11500224 STUD $14.30 To Order
View All

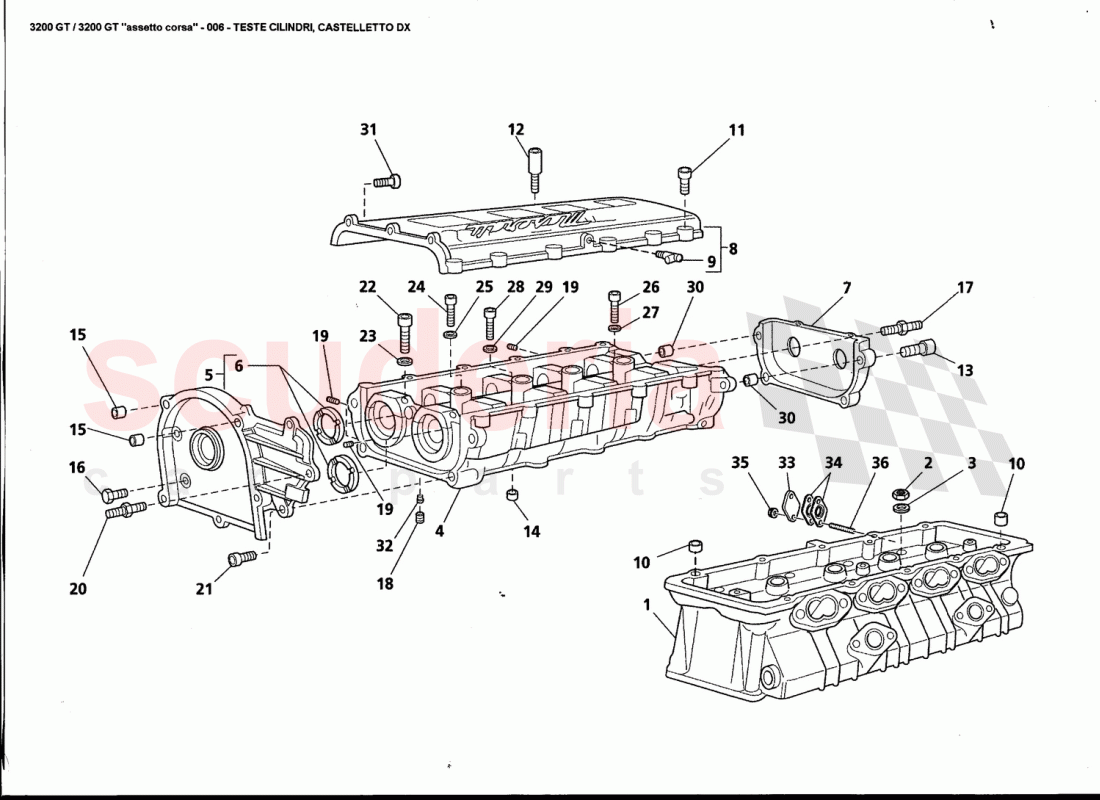

CYLINDER HEAD, RH FRAME of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 585000002
RH CYLINDER HEAD
Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 / Not for BRA,GOL,J and AUS 		$1,202.41 1
1 585000002
RH CYLINDER HEAD
Valid till stock exhaustion / Valid for GS till Ass. Nr.4445 and for Ass. Nr.4491,4499 and 4500 / Valid for GD till Ass. Nr.4468 and for Ass. Nr.4451 and 4454 		$1,202.41 1
2 475005401
NUT 		$16.94 10
3 RN97853
FLAT WASHER 		- 10 Enquire
4 585007602
RH CYLINDER HEAD FRAME 		$1,378.45 1
5 479000700
FRONT COVER 		$105.03 1
6 475003000
CENTRING RING 		$17.72 2
7 479001400
HEAD REAR COVER RH 		$136.45 1
8 585008801
HEAD UPPER COVER RH 		$146.25 1
9 479008001
OIL VENT UNION 		$3.77 1
10 310620369
DOWEL 		$3.12 2
11 231617
SCREW M6 X 18
IN STOCK 		$2.58 10
12 479001500
THREADED ROD 		$55.57 4
13 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30
IN STOCK 		$2.58 3
14 585002400
OIL ADJUSTMENT DOWEL 		$3.74 1
15 GRN83302
DOWEL 		- 2 Enquire
16 BN96601
SCREW 		- 2 Enquire
17 585410200
STUD 		$21.79 (24.8% off) 1
18 10393020
PLUG 		$1.75 2
19 GRN96618
DOWEL 		- 4 Enquire
20 573003300
STUD BOLT 		$51.18 1
21 14306424
SCREW M8 X 25
IN STOCK 		$2.19 1
22 14306924
SCREWM8X50 		$2.58 10
23 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$1.41 10
24 14305920
SCREW 		$1.55 3
25 14496400
SPRING WASHER 		$1.22 3
26 14306424
SCREW M8 X 25
IN STOCK 		$2.19 8
27 311053307
WASHER 		$1.75 8
28 14305620
SCREW 		$1.55 16
29 479005800
WASHER 		$1.11 16
30 311820308
DOWEL 		$1.01 2
31 231617
SCREW M6 X 18
IN STOCK 		$2.58 3
32 585002400
OIL ADJUSTMENT DOWEL 		$3.74 2
33 585005500
FLANGE
Valid for BRA.J.GOL and AUS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 		$134.06 1
34 172303
GASKET
Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 		$2.51 2
35 14058429
NUT
Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 		$1.75 2
36 11500224
STUD
Valid for GS from Ass. Nr.4446 not for Ass. Nr.4491,4499 and 4500 / Valid for GD froml Ass. Nr.4469 not for Ass. Nr.4451 and 4454 		$14.30 2
