Name: CAMSHAFT, VALVES
Rating: 4.7 (1 reviews)

CAMSHAFT, VALVES of Lamborghini Lamborghini Urus (2019-2022)

View All

Lamborghini Urus (2019-2022) - CAMSHAFT, VALVES (1090200)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	P2109611A	EXHAUST VALVE	$48.94	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109601D	INLET VALVE	$50.50	To Order

Photo	Part No	Description	Price (each)	Stock
	P2109417B	ROLLER ROCKER ARM	$20.55	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109423A	EQUALIZING ELEMENT, HYDRAULIC	$92.10	To Order

Photo	Part No	Description	Price (each)	Stock
	6E109641A	SPRING DISC	$17.26	To Order

Photo	Part No	Description	Price (each)	Stock
	6E109623AD	VALVE SPRING	$16.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	P2109623	VALVE SPRING	$10.30	To Order

Photo	Part No	Description	Price (each)	Stock
	P2109629	SPRING SUPPORT	$3.38	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109259P	MAGNET	$56.10	To Order

Photo	Part No	Description	Price (each)	Stock
	6M103555C	HEAT SHIELD	$9.24	To Order

Photo	Part No	Description	Price (each)	Stock
	6M906048F	SOLENOID VALVE	$124.96	To Order

Photo	Part No	Description	Price (each)	Stock
	6M907601D	IMPULSE SENDER	$102.46	To Order

Photo	Part No	Description	Price (each)	Stock
	36109651A	COTTER, SPLIT	$4.31	To Order

Photo	Part No	Description	Price (each)	Stock
	36109675A	VALVE STEM SEAL	$18.56	To Order

Photo	Part No	Description	Price (each)	Stock
	6L109675C	VALVE STEM SEAL	$10.14	To Order

Photo	Part No	Description	Price (each)	Stock
	4E906145	SEAL RING	$5.44	To Order

Photo	Part No	Description	Price (each)	Stock
	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT008638	O-RING	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	N10599501	ROUND HD. SCREW	$1.37	To Order
	N10599502	ROUND HD. SCREW	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	P2109003K	CAMSHAFT	$740.97	To Order
	P2109003N	CAMSHAFT	$764.71	To Order
	P2109003Q	CAMSHAFT	$764.71	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6M109307E	AXIAL BEARING	$6.75	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109257T	CONTROL VALVE	$112.47	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109087K	CAMSHAFT ADJUSTER UNIT	$449.83	To Order
	6M109088K	CAMSHAFT ADJUSTER UNIT	$449.83	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109235	SEAL	$11.31	To Order

Photo	Part No	Description	Price (each)	Stock
	6M109493D	PLATE	$27.32	To Order

View All

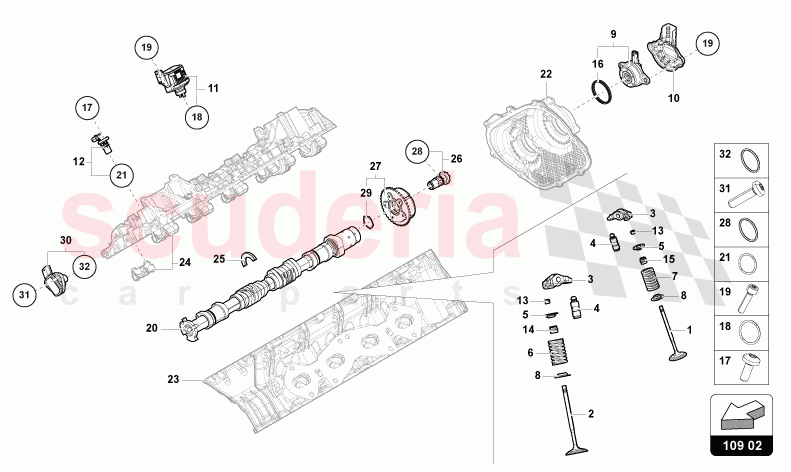

Diagram Tap to enlarge

Camshaft, Valves

Lamborghini SUV Urus (2019-2022)

Illustration Number: 1090200

Lamborghini Urus (2019-2022) - CAMSHAFT, VALVES (1090200)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	P2109611A	EXHAUST VALVE	P2109611A EXHAUST VALVE	$48.94	16
2	6M109601D	INLET VALVE	6M109601D INLET VALVE	$50.50	16
3	P2109417B	ROLLER ROCKER ARM	P2109417B ROLLER ROCKER ARM	$20.55	32
4	6M109423A	EQUALIZING ELEMENT, HYDRAULIC	6M109423A EQUALIZING ELEMENT, HYDRAULIC	$92.10	32
5	6E109641A	SPRING DISC	6E109641A SPRING DISC	$17.26	32
6	6E109623AD	VALVE SPRING IN STOCK	6E109623AD VALVE SPRING INLET IN STOCK	$16.56	16
7	P2109623	VALVE SPRING	P2109623 VALVE SPRING OUTLET	$10.30	16
8	P2109629	SPRING SUPPORT	P2109629 SPRING SUPPORT LOWER	$3.38	32
9	6M109259P	MAGNET	6M109259P MAGNET	$56.10	4
10	6M103555C	HEAT SHIELD	6M103555C HEAT SHIELD	$9.24	2
11	6M906048F	SOLENOID VALVE	6M906048F SOLENOID VALVE	$124.96	8
12	6M907601D	IMPULSE SENDER	6M907601D IMPULSE SENDER	$102.46	4
13	36109651A	COTTER, SPLIT	36109651A COTTER, SPLIT	$4.31	64
14	36109675A	VALVE STEM SEAL	36109675A VALVE STEM SEAL INLET	$18.56	16
15	6L109675C	VALVE STEM SEAL	6L109675C VALVE STEM SEAL OUTLET	$10.14	16
16	4E906145	SEAL RING	4E906145 SEAL RING	$5.44	4
17	N91126601	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91126601 OVAL HEXAGON SOCKET HEAD BOLT M6X16 IN STOCK	$1.24 MSRP: ~~7.30~~ (83% off)	4
18	WHT008638	O-RING	WHT008638 O-RING 17 -5X1,5	$1.37	8
19	N10599501	ROUND HD. SCREW	N10599501 ROUND HD. SCREW ONLY UPON REQUEST OF TECHNICAL SUPPORT-M5X20	$1.37	16
19	N10599502	ROUND HD. SCREW	N10599502 ROUND HD. SCREW M5X20	$1.37	16
20	P2109003K	CAMSHAFT	P2109003K CAMSHAFT CYLINDER 5-8-OUTLET	$740.97	1
20	P2109003N	CAMSHAFT	P2109003N CAMSHAFT CYLINDER 1-4-OUTLET CYLINDERS 1-4	$764.71	1
20	P2109003Q	CAMSHAFT	P2109003Q CAMSHAFT CYLINDER 1-4-INLET CYLINDERS 1-4	$764.71	1
20	P2109003R	CAMSHAFT	P2109003R CAMSHAFT CYLINDER 5-8-INLET	$764.71	1
25	6M109307E	AXIAL BEARING	6M109307E AXIAL BEARING	$6.75	2
26	6M109257T	CONTROL VALVE	6M109257T CONTROL VALVE	$112.47	4
27	6M109087K	CAMSHAFT ADJUSTER UNIT	6M109087K CAMSHAFT ADJUSTER UNIT INLET	$449.83	2
27	6M109088K	CAMSHAFT ADJUSTER UNIT	6M109088K CAMSHAFT ADJUSTER UNIT OUTLET	$449.83	2
28	6M109235	SEAL	6M109235 SEAL	$11.31	4
29	6M109493D	PLATE	6M109493D PLATE	$27.32	4

Camshaft, Valves

Lamborghini SUV Urus (2019-2022)

Illustration Number: 1090200

Lamborghini Urus (2019-2022) - CAMSHAFT, VALVES (1090200)
