Find Your Part

View All

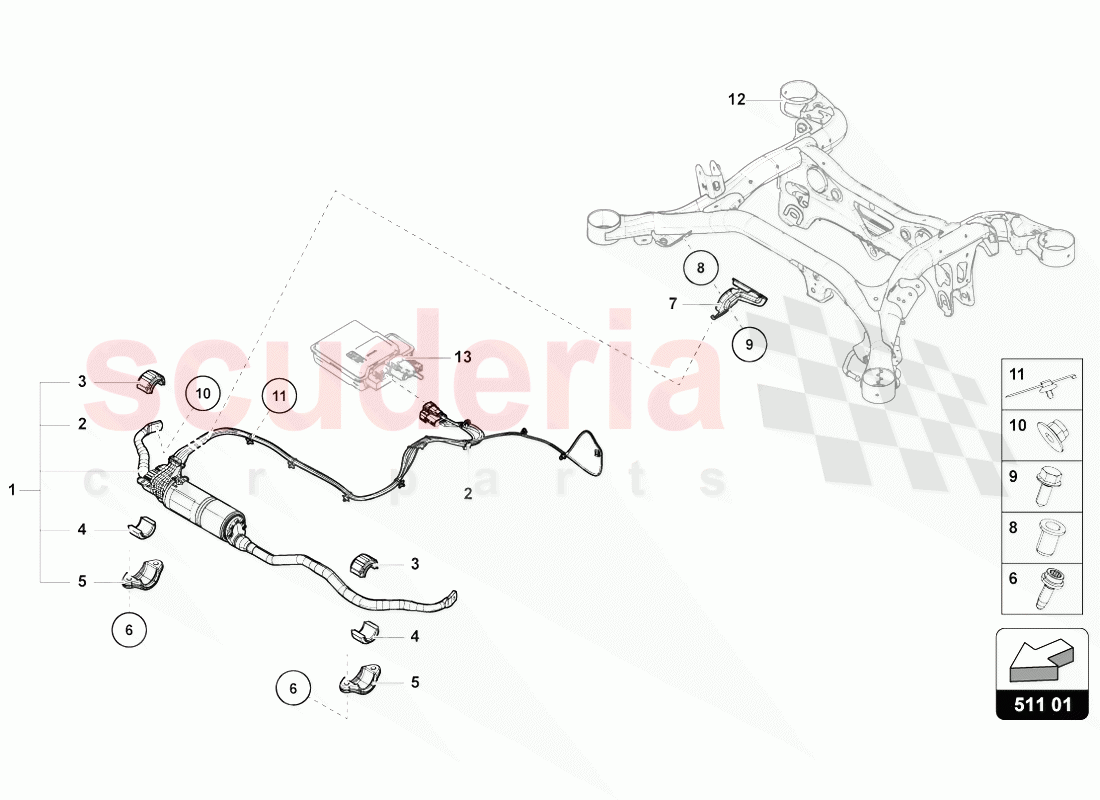

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0511023Q	ANTI-ROLL BAR	$3,585.41	To Order

Photo	Part No	Description	Price (each)	Stock
		WIRE SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BEARING SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BEARING SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		ANTI-ROLL BAR BEARING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10810701	SCREW WITH INT. SERRATIONS	$3.39	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0501142E	BRACKET FOR RETAINING CABLE	$15.59	To Order

Photo	Part No	Description	Price (each)	Stock
	N90631202	RIVETTED CAP NUT	$2.45	To Order

Photo	Part No	Description	Price (each)	Stock
	N10653102	HEXAGON BOLT	$18.84	To Order

Photo	Part No	Description	Price (each)	Stock
	N10272302	HEXAGON COLLAR NUT SELF-LOCKING	$2.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0971838L	CABLE TIE WITH TERMINAL SOCKET	$2.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
		RETAINING FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		CONTROL UNIT	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0511023Q	ANTI-ROLL BAR	4M0511023Q ANTI-ROLL BAR EAWS	$3,585.41	1
2	-	WIRE SET	WIRE SET 1	-	-	Enquire
3	-	BEARING SLEEVE	BEARING SLEEVE INCLUDED IN REF.:-UPPER 1	-	-	Enquire
4	-	BEARING SLEEVE	BEARING SLEEVE INCLUDED IN REF.:-LOWER 1	-	-	Enquire
5	-	ANTI-ROLL BAR BEARING BRACKET	ANTI-ROLL BAR BEARING BRACKET INCLUDED IN REF.:- 1	-	-	Enquire
6	N10810701	SCREW WITH INT. SERRATIONS	N10810701 SCREW WITH INT. SERRATIONS M8X25	$3.39	4
7	4M0501142E	BRACKET FOR RETAINING CABLE	4M0501142E BRACKET FOR RETAINING CABLE	$15.59	1
8	N90631202	RIVETTED CAP NUT	N90631202 RIVETTED CAP NUT M8/0,5-3	$2.45	1
9	N10653102	HEXAGON BOLT	N10653102 HEXAGON BOLT M8X20	$18.84	1
10	N10272302	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10272302 HEXAGON COLLAR NUT SELF-LOCKING M10 IN STOCK	$2.41 MSRP: ~~7.14~~ (66.2% off)	2
11	3D0971838L	CABLE TIE WITH TERMINAL SOCKET IN STOCK	3D0971838L CABLE TIE WITH TERMINAL SOCKET 4,6X200MM 1-3MM-4,6X200MM 1-3MM IN STOCK	$2.84	1
12	-	RETAINING FRAME	RETAINING FRAME SEE ILLUSTRATION :- 512-020	-	-	Enquire
13	-	CONTROL UNIT	CONTROL UNIT SEE ILLUSTRATION 907.07	-	-	Enquire
