Electrics Lhd

Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - ELECTRICS LHD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47B937149A FUSE HOLDER $92.14 To Order
Photo Part No Description Price (each) Stock
4G0937503 RELAY PLATE $5.34 To Order
Photo Part No Description Price (each) Stock
4H0941824 FUSE HOLDER $62.27 To Order
Photo Part No Description Price (each) Stock
4F1941824A FUSE HOLDER $26.96 To Order
Photo Part No Description Price (each) Stock
4H0941824 FUSE HOLDER $62.27 To Order
Photo Part No Description Price (each) Stock
8K0941824D FUSE HOLDER $27.59 To Order
Photo Part No Description Price (each) Stock
4H0937527 RELAY PLATE $3.59 To Order
Photo Part No Description Price (each) Stock
4B0937527 RELAY PLATE $13.54 To Order
Photo Part No Description Price (each) Stock
N01713111 FLAT FUSE 19/2X5 $1.14 IN STOCK
N01713112 FLAT FUSE 19/2X5 $1.14 IN STOCK
N01713113 FLAT FUSE 19/2X5 $1.14 IN STOCK
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
N10261510 FLAT FUSE 10/2X2,8 $1.14 To Order
N10261514 FLAT FUSE 10/2X2,8 $6.72 To Order
N10261515 FLAT FUSE 10/2X2,8 $6.72 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
N10748001 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING $1.52 IN STOCK
Photo Part No Description Price (each) Stock
N01508210 HEXAGON COLLAR NUT $2.01 IN STOCK
View All

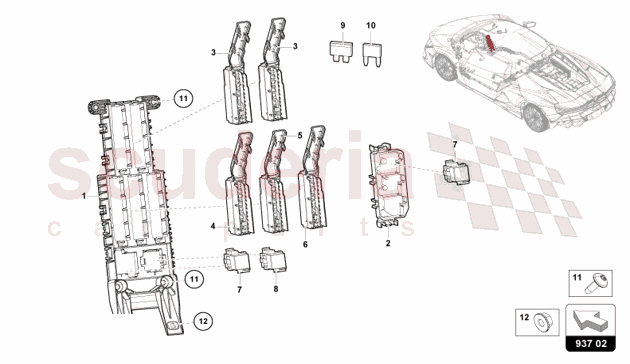

ELECTRICS LHD of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47B937149A
FUSE HOLDER 		$92.14 1
2 4G0937503
RELAY PLATE 		$5.34 1
3 4H0941824
FUSE HOLDER
16 PIN 		$62.27 1
4 4F1941824A
FUSE HOLDER 		$26.96 1
5 4H0941824
FUSE HOLDER
16 PIN 		$62.27 1
6 8K0941824D
FUSE HOLDER
12 PIN 		$27.59 1
7 4H0937527
RELAY PLATE
9 PIN BLACK 		$3.59 1
8 4B0937527
RELAY PLATE 		$13.54 1
9 N01713111
FLAT FUSE 19/2X5
10A -RED-
IN STOCK 		$1.14 1
9 N01713112
FLAT FUSE 19/2X5
15A -LT BLUE-
IN STOCK 		$1.14 1
9 N01713113
FLAT FUSE 19/2X5
20A -YELLOW-
IN STOCK 		$1.14 (84.2% off) 1
9 N01713114
FLAT FUSE 19/2X5
25A -CL.GLASS-
IN STOCK 		$1.14 1
9 N01713115
FLAT FUSE 19/2X5
30A-LT GREEN-
IN STOCK 		$0.89 1
9 N01713118
FLAT FUSE 19/2X5
7.5A -BROWN-
IN STOCK 		$1.14 (84.2% off) 1
9 N01713120
FLAT FUSE 19/2X5
40A -ORANGE-
IN STOCK 		$1.33 (81.5% off) 1
9 N01713122
FLAT FUSE 19/2X5
35A -BLUE/GREEN- 		$1.33 1
10 N10261510
FLAT FUSE 10/2X2,8
1A -BLACK- 		$1.14 1
10 N10261514
FLAT FUSE 10/2X2,8
5A-HELLBRAUN- 		$6.72 1
10 N10261515
FLAT FUSE 10/2X2,8
7,5A-BRAUN- 		$6.72 1
10 N10261516
FLAT FUSE 10/2X2,8
10A-ROT- 		$6.72 1
10 N10261517
FLAT FUSE 10/2X2,8
15A - RED 		$6.72 1
11 N10748001
HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING
6X16
IN STOCK 		$1.52 (79.1% off) 1
12 N01508210
HEXAGON COLLAR NUT
M6
IN STOCK 		$2.01 1
