Lamborghini Revuelto Coupe

Find Your Part

Lamborghini Revuelto Coupe - BOX

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
47C857103 GLOVE COMPARTMENT $516.24 To Order
47A857103 GLOVE COMPARTMENT $516.24 To Order
Photo Part No Description Price (each) Stock
47C858797 BRAKE ELEMENT $70.40 To Order
47A858797 BRAKE ELEMENT $70.40 To Order
Photo Part No Description Price (each) Stock
5Q0919237 KEY LOCK FOR DISABLING FRONT PASSENGER AIRBAG WITH LOCK CYLINDER $16.07 To Order
Photo Part No Description Price (each) Stock
47B857557 COVER $6.25 To Order
Photo Part No Description Price (each) Stock
47B857955 BRACKET $9.44 To Order
47B857956 BRACKET $9.44 To Order
Photo Part No Description Price (each) Stock
47C857123 LID FOR GLOVE BOX $196.25 To Order
47A857124 LID FOR GLOVE BOX $196.25 To Order
Photo Part No Description Price (each) Stock
47C857131 HANDLE $249.99 To Order
47A857131 HANDLE $235.00 To Order
Photo Part No Description Price (each) Stock
47C858413 GLOVE COMPARTMENT LID- INNER PART $197.52 To Order
47A858414 GLOVE COMPARTMENT LID- INNER PART $197.52 To Order
Photo Part No Description Price (each) Stock
4ML857651 GUIDE $2.25 To Order
Photo Part No Description Price (each) Stock
47B858175 INSERT PART $19.68 To Order
Photo Part No Description Price (each) Stock
47B857973 LOCKING PIN $1.08 To Order
Photo Part No Description Price (each) Stock
4ML857415 SPRING $0.72 To Order
Photo Part No Description Price (each) Stock
47B857035 LOCKING ROD $12.65 To Order
Photo Part No Description Price (each) Stock
4ML857363 STOP BUFFER $0.86 To Order
Photo Part No Description Price (each) Stock
4ML857363A STOP BUFFER $0.86 To Order
Photo Part No Description Price (each) Stock
N90944604 OVAL HEXAGON SOCKET HEAD BOLT $2.25 IN STOCK
Photo Part No Description Price (each) Stock
N10684701 OVAL HEXAGON SOCKET HEAD BOLT $1.37 IN STOCK
Photo Part No Description Price (each) Stock
470858771 MOUNTING FOR GLOVE COMPARTMENT LID $6.15 To Order
View All

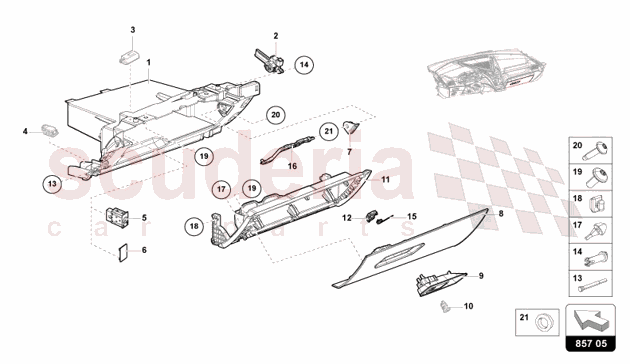

BOX of Lamborghini Lamborghini Revuelto Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 47C857103
GLOVE COMPARTMENT
RHD 		$516.24 1
1 47A857103
GLOVE COMPARTMENT
LHD 		$516.24 1
2 47C858797
BRAKE ELEMENT
RHD 		$70.40 1
2 47A858797
BRAKE ELEMENT
LHD 		$70.40 1
5 5Q0919237
KEY LOCK FOR DISABLING FRONT PASSENGER AIRBAG WITH LOCK CYLINDER 		$16.07 1
6 47B857557
COVER 		$6.25 1
7 47B857955
BRACKET 		$9.44 1
7 47B857956
BRACKET 		$9.44 1
8 47C857123
LID FOR GLOVE BOX
RHD 		$196.25 1
8 47A857124
LID FOR GLOVE BOX
LHD 		$196.25 1
9 47C857131
HANDLE
RHD 		$249.99 1
9 47A857131
HANDLE
LHD 		$235.00 1
11 47C858413
GLOVE COMPARTMENT LID- INNER PART
RHD 		$197.52 1
11 47A858414
GLOVE COMPARTMENT LID- INNER PART
LHD 		$197.52 1
12 4ML857651
GUIDE 		$2.25 1
13 47B858175
INSERT PART 		$19.68 1
14 47B857973
LOCKING PIN 		$1.08 1
15 4ML857415
SPRING 		$0.72 1
16 47B857035
LOCKING ROD 		$12.65 1
17 4ML857363
STOP BUFFER 		$0.86 1
18 4ML857363A
STOP BUFFER 		$0.86 1
19 N90944604
OVAL HEXAGON SOCKET HEAD BOLT
M5X12
IN STOCK 		$2.25 (68.6% off) 1
20 N10684701
OVAL HEXAGON SOCKET HEAD BOLT
M5X20
IN STOCK 		$1.37 (81.3% off) 1
21 470858771
MOUNTING FOR GLOVE COMPARTMENT LID 		$6.15 1
