Name: INTAKE BOX FOR ELECTRONIC- ALLY CONTROLLED A/C SYSTEM
Rating: 4.1 (1 reviews)

View All

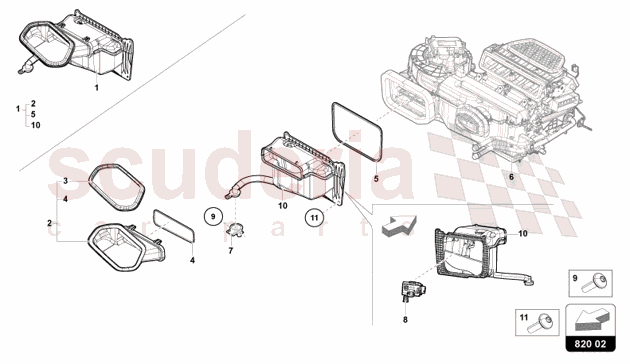

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47A820139	SEAL	$240.40	To Order

Photo	Part No	Description	Price (each)	Stock
	47B827527	SEAL	$140.59	To Order

Photo	Part No	Description	Price (each)	Stock
	47B820969	SEAL	$160.68	To Order

Photo	Part No	Description	Price (each)	Stock
	47A820514	BRACKET	$38.10	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0907658C	SENSOR FOR AIR QUALITY AND AIR HUMIDITY	$166.35	To Order

Photo	Part No	Description	Price (each)	Stock
	N90969901	HEX SOCKET HEAD LOCATING BOLT	$1.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10661002	HEX SOCKET OVAL HEAD COLLARED	$1.43	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	47A820153	INTAKE DUCT	47A820153 INTAKE DUCT	$641.45	1
1	47C820153	INTAKE DUCT	47C820153 INTAKE DUCT	$641.45	1
2	47A820155	INTAKE DUCT	47A820155 INTAKE DUCT INCLUDED IN REF. 1,2	$224.07	1
2	47C820155	INTAKE DUCT	47C820155 INTAKE DUCT INCLUDED IN REF. 1,2	$229.09	1
3	47A820139	SEAL	47A820139 SEAL INCLUDED IN REF. 1,2	$240.40	1
4	47B827527	SEAL	47B827527 SEAL INCLUDED IN REF. 1,2	$140.59	1
5	47B820969	SEAL	47B820969 SEAL INCLUDED IN REF. 1,2	$160.68	1
7	47A820514	BRACKET	47A820514 BRACKET	$38.10	1
8	4H0907658C	SENSOR FOR AIR QUALITY AND AIR HUMIDITY	4H0907658C SENSOR FOR AIR QUALITY AND AIR HUMIDITY	$166.35	1
9	N90969901	HEX SOCKET HEAD LOCATING BOLT IN STOCK	N90969901 HEX SOCKET HEAD LOCATING BOLT M6X25 IN STOCK	$1.44 MSRP: ~~7.27~~ (80.2% off)	1
11	N10661002	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N10661002 HEX SOCKET OVAL HEAD COLLARED M6X20 IN STOCK	$1.43 MSRP: ~~7.27~~ (80.3% off)	1

Intake Box For Electronic- Ally Controlled A/c System

Lamborghini Revuelto Coupe
