(EXPANSION VALVE > DRIER) of Lamborghini Lamborghini Revuelto Coupe

View All

Lamborghini Revuelto Coupe - (EXPANSION VALVE > DRIER)

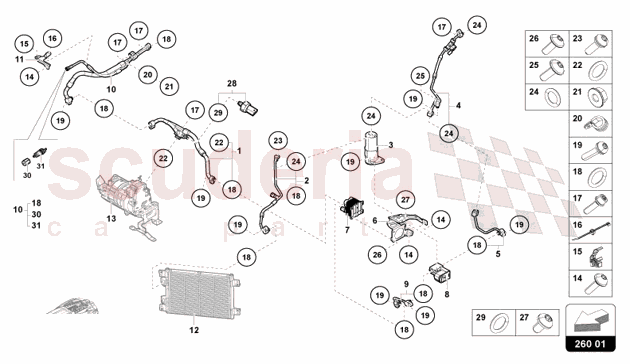

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	47B816735A	REFRIGERANT LINE	$442.92	To Order

Photo	Part No	Description	Price (each)	Stock
	47B816741A	REFRIGERANT LINE	$275.56	To Order

Photo	Part No	Description	Price (each)	Stock
	47B820191	DRIER	$524.72	To Order

Photo	Part No	Description	Price (each)	Stock
	47B816720A	REFRIGERANT LINE	$466.84	To Order

Photo	Part No	Description	Price (each)	Stock
	47B816709A	REFRIGERANT LINE	$145.35	To Order

Photo	Part No	Description	Price (each)	Stock
	47B820195C	BRACKET	$104.46	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0816115A	HEAT EXCHANGER	$303.27	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0816682E	EXPANSION VALVE	$318.36	To Order

Photo	Part No	Description	Price (each)	Stock
	47B816744A	REFRIGERANT LINE	$146.59	To Order

Photo	Part No	Description	Price (each)	Stock
	47B816743A	REFRIGERANT LINE	$414.00	To Order

Photo	Part No	Description	Price (each)	Stock
	47B260759A	BRACKET	$46.89	To Order

Photo	Part No	Description	Price (each)	Stock
	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	$1.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90697001	CORRUGATED TUBE CLIP	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	N90666101	CABLE TIES	$1.02	To Order

Photo	Part No	Description	Price (each)	Stock
	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$3.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	SEAL RING	$6.23	To Order

Photo	Part No	Description	Price (each)	Stock
	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	$2.14	To Order

Photo	Part No	Description	Price (each)	Stock
	N0206405	CLAMP	$1.89	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	$2.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8E0260749C	SEAL RING	$5.30	To Order

Photo	Part No	Description	Price (each)	Stock
	N10347103	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0260749C	O-RING 9.5 X 2.5	$6.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10347104	HEX SOCKET HEAD BOLT (COMBI)	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	N90780901	OVAL HEXAGON SOCKET HEAD BOLT	$2.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10170302	ROUND HD. SCREW	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0959603E	PRESSURE & TEMPERATURE SENSOR	$179.93	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0261185	SEAL RING	$6.19	To Order

Photo	Part No	Description	Price (each)	Stock
	5Q0816231	PROTECTIVE CAP	$8.43	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0820855	EVACUATING AND CHARGING VALVE	$18.69	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	47B816735A	REFRIGERANT LINE	47B816735A REFRIGERANT LINE	$442.92	1
2	47B816741A	REFRIGERANT LINE	47B816741A REFRIGERANT LINE	$275.56	1
3	47B820191	DRIER	47B820191 DRIER	$524.72	1
4	47B816720A	REFRIGERANT LINE	47B816720A REFRIGERANT LINE	$466.84	1
5	47B816709A	REFRIGERANT LINE	47B816709A REFRIGERANT LINE	$145.35	1
6	47B820195C	BRACKET	47B820195C BRACKET	$104.46	1
7	4M0816115A	HEAT EXCHANGER	4M0816115A HEAT EXCHANGER	$303.27	1
8	4M0816682E	EXPANSION VALVE	4M0816682E EXPANSION VALVE	$318.36	1
9	47B816744A	REFRIGERANT LINE	47B816744A REFRIGERANT LINE	$146.59	1
10	47B816743A	REFRIGERANT LINE	47B816743A REFRIGERANT LINE	$414.00	1
11	47B260759A	BRACKET	47B260759A BRACKET	$46.89	1
14	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD IN STOCK	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD M6X20 IN STOCK	$1.70	1
15	N90697001	CORRUGATED TUBE CLIP	N90697001 CORRUGATED TUBE CLIP 12,9	$1.03	1
16	N90666101	CABLE TIES	N90666101 CABLE TIES 4,6X200 6,5/0,3-3	$1.02 MSRP: ~~7.32~~ (86.1% off)	1
17	N10414402	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD IN STOCK	N10414402 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M8X28 IN STOCK	$3.23 MSRP: ~~7.07~~ (54.3% off)	1
18	4E0260749B	SEAL RING	4E0260749B SEAL RING 13,7X2,5	$6.23 MSRP: ~~7.06~~ (11.8% off)	1
19	N10347204	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N10347204 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING M6X25	$2.14 MSRP: ~~7.26~~ (70.5% off)	1
20	N0206405	CLAMP	N0206405 CLAMP 18X15	$1.89 MSRP: ~~7.07~~ (73.3% off)	1
21	N01508210	HEXAGON COLLAR NUT IN STOCK	N01508210 HEXAGON COLLAR NUT M6 IN STOCK	$2.02	1
22	8E0260749C	SEAL RING	8E0260749C SEAL RING 23,8X2,4	$5.30 MSRP: ~~7.09~~ (25.2% off)	1
23	N10347103	HEXAGON SOCKET OVAL HEAD BOLT (COMBI) IN STOCK	N10347103 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) M6X20 IN STOCK	$1.38 MSRP: ~~7.29~~ (81.1% off)	1
24	3D0260749C	O-RING 9.5 X 2.5 IN STOCK	3D0260749C O-RING 9.5 X 2.5 9,5X2,5 IN STOCK	$6.25 MSRP: ~~7.10~~ (12% off)	1
25	N10347104	HEX SOCKET HEAD BOLT (COMBI)	N10347104 HEX SOCKET HEAD BOLT (COMBI)	$1.38	1
26	N90780901	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780901 OVAL HEXAGON SOCKET HEAD BOLT M6X16 IN STOCK	$2.91 MSRP: ~~7.38~~ (60.6% off)	1
27	N10170302	ROUND HD. SCREW	N10170302 ROUND HD. SCREW M6X10	$1.15 MSRP: ~~7.25~~ (84.1% off)	1
28	4M0959603E	PRESSURE & TEMPERATURE SENSOR	4M0959603E PRESSURE & TEMPERATURE SENSOR INCLUDED IN REF.1	$179.93	1
29	4M0261185	SEAL RING	4M0261185 SEAL RING INCLUDED IN REF.1-8X1,5	$6.19	1
30	5Q0816231	PROTECTIVE CAP	5Q0816231 PROTECTIVE CAP INCLUDED IN REF. 10	$8.43	1
31	8E0820855	EVACUATING AND CHARGING VALVE	8E0820855 EVACUATING AND CHARGING VALVE INCLUDED IN REF.10	$18.69	1

(Expansion Valve > Drier)

Lamborghini Revuelto Coupe
