Passenger Compartment Trims 1

Lamborghini Murcielago LP670

Find Your Part

Lamborghini Murcielago LP670 - Passenger Compartment Trims 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

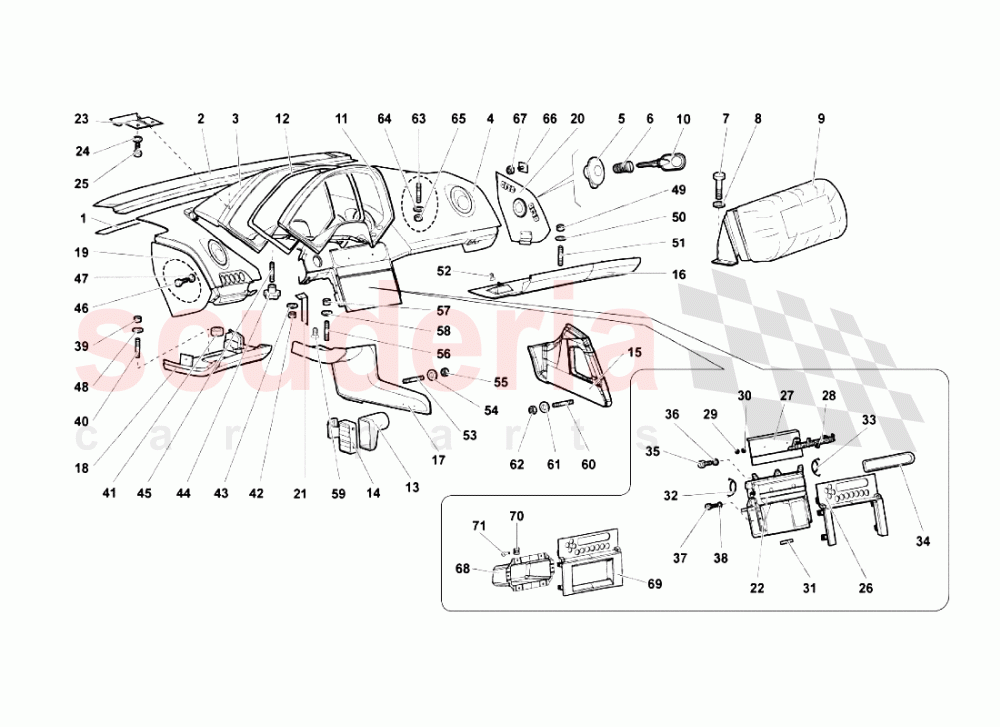

Passenger Compartment Trims 1 of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410819018
SEALING TAPE 		$28.77 3
002 410858349A
UPPER FRONT DASHBOARD ASSEMBLY 		$2,076.36 1
003 410858278A
DASHBOARD COVERING (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		$2,007.58 1
004 414858451
DASHBOARD UPPER PART ASSEMBLY (LEATHER INTERIOR - SUPPLY VIN) 		$5,103.33 1
005 410919237
AIRBAG SWITCH 		$125.71 1
006 400919228B
AIRBAG BLOCK (INCLUDES 2 AIRBAG KEY) 		$48.58 1
007 N90612002
SCREW M6X14
IN STOCK 		$0.75 (89.7% off) 4
008 WHT002963
WASHER
IN STOCK 		$0.12 (98.4% off) 4
009 414880199
AIR BAG MODULE 		$7,852.98 1
011 410858277
FRAME 		$372.81 1
011 410858277A
FRAME (CARBON INTERIOR) 		$4,846.92 1
012 410858177
GASKET 		$4.83 1
013 410864255
OUTLET 		$260.78 1
014 410864877
AIR PIPE UNION GRID, DRIVER@S SIDE 		$118.70 1
015 429857927A
CAR HI-FI SYSTEM DASHBOARD LEFT HANDLE ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		$240.18 1
016 414857007B
LOWER LEFT DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		$277.74 1
017 414854689B
CAR HI-FI SYSTEM DASHBOARD RIGHT SIDE ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		$1,118.47 1
018 414857006B
LOWER RIGHT DASHBOARD ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) 		$397.84 1
019 414857086C
RIGHT SIDE COVER ASSEMBLY (CARBON INTERIOR DARK) 		$562.87 1
020 414857085B
LEFT SIDE COVER ASSEMBLY (CARBON INTERIOR DARK) 		$1,194.54 1
021 410857320A
BRACKET 		$17.26 1
022 410861941D
A/C PANEL ASSEMBLY 		$883.27 1
023 410858573
BRACKET 		$72.49 1
024 N1152221
WASHER 		- 2 Enquire
025 N102018
SCREW M4X8 		- 2 Enquire
026 410035422N
FRAME (CARBON INTERIOR DARK) 		$3,177.06 1
027 410864123A
LID (CARBON INTERIOR - SUPPLY VIN) 		$1,576.04 1
028 400853682A
LAMBORGHINI ORNAMENT 		$234.59 1
030 4T0853139
CLIP
IN STOCK 		$1.33 (81.5% off) 2
031 443803389C
FELT 		$21.42 2
032 410863431
LEFT SPRING 		$70.43 1
033 410863432
RIGHT SPRING 		$70.43 1
034 410861719
FRAME 		$202.68 1
035 N10580702
SCREW 		$5.53 3
036 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.07 3
037 N90455205
SCREW M4X10
IN STOCK 		$1.15 (84.1% off) 2
038 WHT003040
WASHER 5.3X1.5X15 (For Becker Radio System) 		$7.07 2
039 WHT003112
NUT M5 		$0.65 3
040 WHT003116
STUD BOLT M5X25 		$10.44 1
040 WHT003228
STUD BOLT M5X14 		$11.33 2
041 400804347
SPACER 		$16.46 1
042 N1508213
NUT M6 		- 2 Enquire
043 WHT002961
WASHER
IN STOCK 		$0.39 2
044 410858482
HANDLE 		$10.15 2
045 WHT003228
STUD BOLT M5X14 		$11.33 2
046 WHT003069
SCREW M6X1X20 		$42.08 2
047 WHT002961
WASHER
IN STOCK 		$0.39 2
048 N91109202
WASHER
IN STOCK 		$0.62 (91.5% off) 3
049 WHT003112
NUT M5 		$0.65 2
050 N91109202
WASHER
IN STOCK 		$0.62 (91.5% off) 2
051 WHT003116
STUD BOLT M5X25 		$10.44 2
052 400867299
FASTENER LYS FUSION, YELLOW
IN STOCK 		$16.72 2
053 WHT003094
STUD BOLT M4X16 		$12.34 2
054 N91109202
WASHER
IN STOCK 		$0.62 (91.5% off) 2
055 WHT002959
CLAMPING NUT
IN STOCK 		$0.77 (89.4% off) 2
056 WHT003116
STUD BOLT M5X25 		$10.44 1
057 WHT003112
NUT M5 		$0.65 1
058 WHT002961
WASHER
IN STOCK 		$0.39 1
059 410863988
PLUG 		$1.01 (86% off) 1
060 WHT003116
STUD BOLT M5X25 		$10.44 1
060 WHT003228
STUD BOLT M5X14 		$11.33 2
061 WHT002961
WASHER
IN STOCK 		$0.39 3
062 WHT003112
NUT M5 		$0.65 3
063 WHT003116
STUD BOLT M5X25 		$10.44 2
064 WHT003093
Washer
IN STOCK 		$0.44 (94% off) 2
065 WHT003112
NUT M5 		$0.65 2
066 410857879
BRACKET 		$18.39 2
067 WHT003112
NUT M5 		$0.65 2
068 429857232
GLOVE BOX 		$79.20 1
069 429035422
FRAME 		$4,027.63 1
070 N154523
CLIP ST4.2X13.00X11.00 		- 6 Enquire
071 N902661
SCREW 		- 6 Enquire
