Fuel System 2

Lamborghini Murcielago LP670

Find Your Part

Lamborghini Murcielago LP670 - Fuel System 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

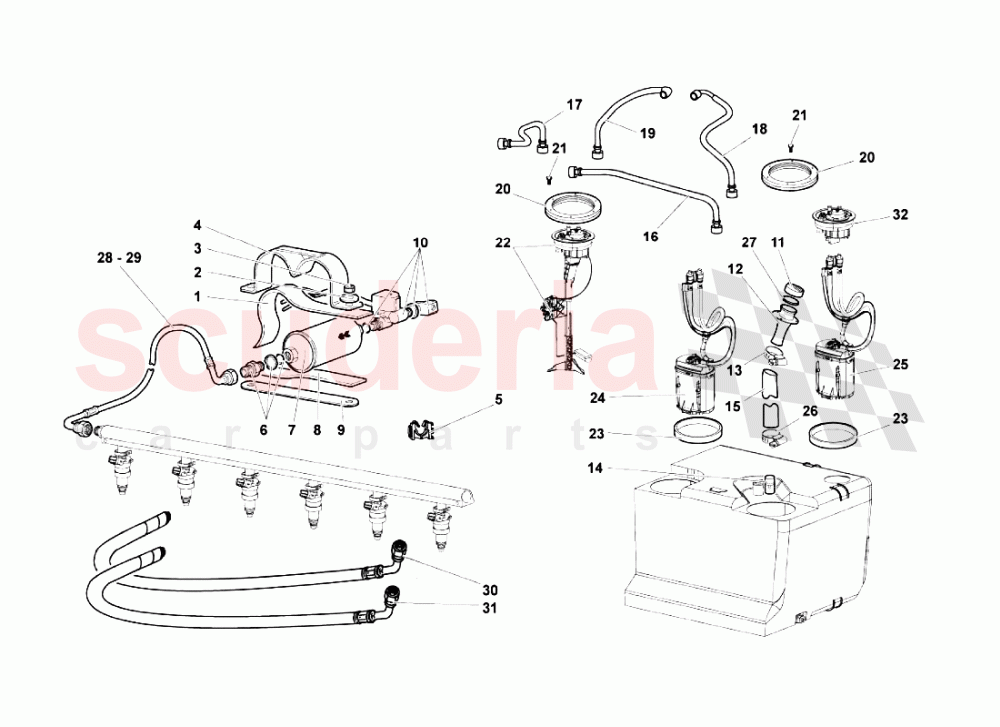

Fuel System 2 of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410201349
GASKET 		$30.72 1
002 N1152427
WASHER 		- 2 Enquire
003 N1118312
NUT M6 		- 2 Enquire
004 410201449A
CLAMP 		$49.82 1
005 400611799A
CLIP 		$0.75 (89.7% off) 6
006 400201149B
CONNECTOR 		$108.02 2
007 400201511A
Fuel Filter
IN STOCK 		$241.75 2
008 410201196
GASKET 		$4.68 1
009 410201450A
PLATE 		$41.03 1
010 410937305
SOLENOID VALVE 		$1,198.72 2
011 400201587A
Fuel Filler Plug
IN STOCK 		$906.69 1
012 410201135B
UPPER FUEL FILLER 		$1,145.03 1
013 N91115301
CLAMP 		$8.01 1
014 400201345
VALVE 		$438.28 1
015 417201131
PIPE 		$161.75 1
016 410201364A
PIPE 7-12 (RETURN HOSE) 		$84.78 1
017 410201364C
PIPE 1-6 (RETURN HOSE) 		$72.67 1
018 410201215A
PIPE 7-12 (FEED PIPE) 		$139.85 1
019 410201214A
PIPE 1-6 (FEED PIPE) 		$224.76 1
020 400201099
FLANGE 		$279.70 2
021 WHT001194
SCREW
IN STOCK 		$0.35 (95.2% off) 12
022 410919046
INDICATOR 		$506.97 1
023 1T0919133D
GASKET 		$13.87 2
024 410919051C
PUMP 		$724.25 1
025 410919051C
PUMP 		$724.25 1
026 N245077
CLAMP 		- 1 Enquire
027 400201557
GASKET 		$540.67 1
028 410201217A
PIPE (FEED 		$511.96 1
029 410201218A
PIPE (FEED 		$648.08 1
030 410201216B
PIPE (RETURN 		$430.81 1
031 410201219A
PIPE 7-12 		$394.10 1
032 410919679
FLANGE 		$289.71 1
